Signaling Host IP Address and MCU Prefix in GK Indications

The Collaboration Server Web Client displays the Signaling Host IP Address and MCU Prefix in GK
parameters as defined in the Default H.323 Network Service.
Conference Profile
Registration of conferencing entities such as ongoing conferences, Meeting Rooms, Entry Queues, SIP
Factories and Gateway Sessions with SIP servers is done per conferencing entity. This allows better control
on the number of entities that register with each SIP server by selecting for each of the conferencing entities
whether it will register with the SIP server.

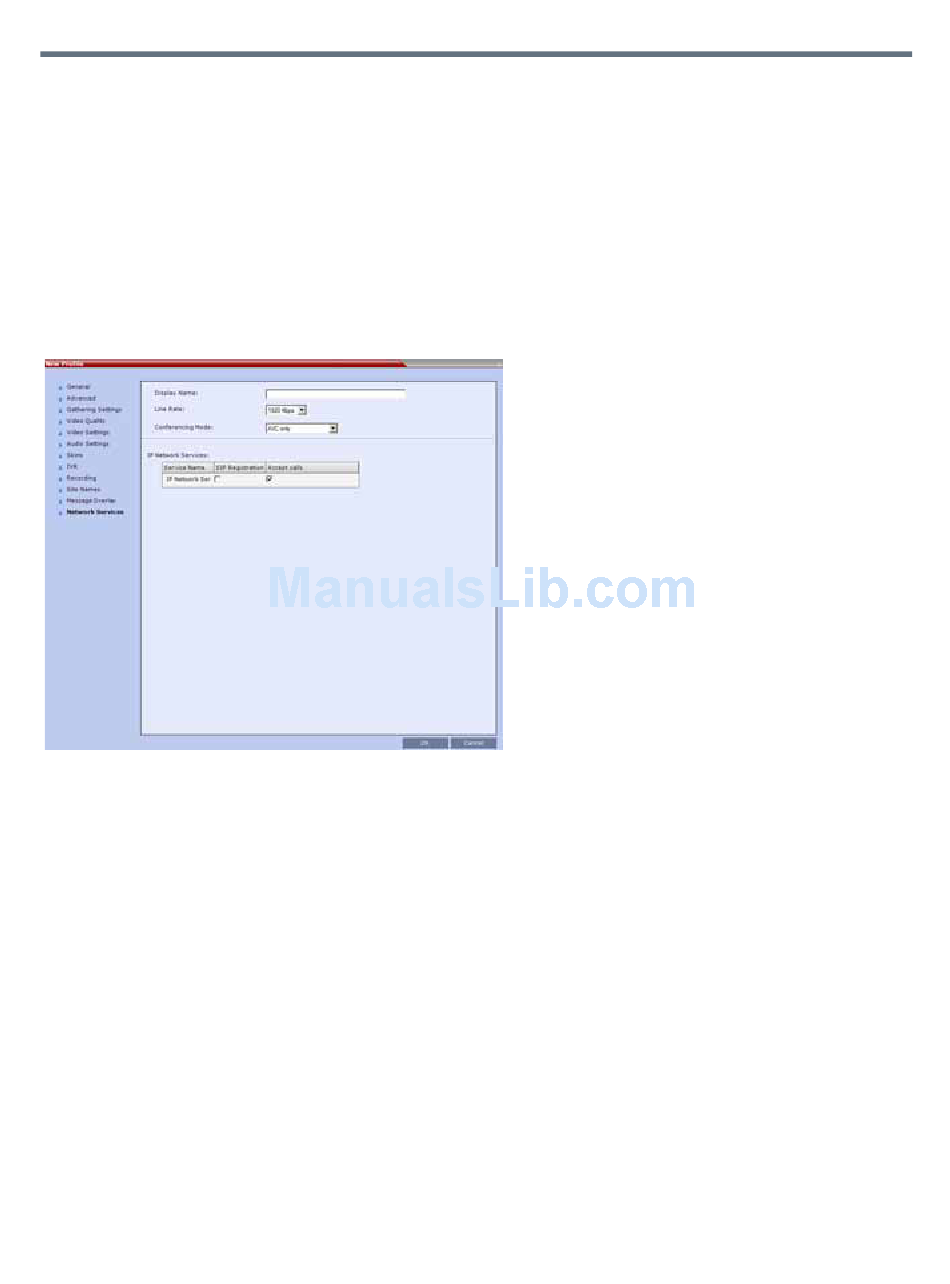

The registration is defined in the Conference Profile - Network Services tab.
In the IP Network Services table, the system lists all the defined Network Services (one or several
depending on the system configuration).
● To register the conferencing entity to which this profile is assigned to a Network Service, in the
Registration column click the check box of that Network Service.
● You can also prevent dial in participants from connecting to that conferencing entities when
connecting via a Network Service.
In the Accept Calls column, clear the check box of the Network Service from which calls cannot
connect to the conference.
Gateway Profiles
To enable the Collaboration Server to call the destination endpoint/MCU via IP connection, the Network
Service for the call must be selected in the Gateway Profile dialog box.
The Network Service set as default is used if no other Network Service is selected.
