Reinstalling the Rear Fan Tray
Copyright © 2010, Juniper Networks, Inc.
Reinstalling the TX-SIBs on page 103
4.
Reinstalling the Front Fan Trays on page 104
5.
To reinstall the rear fan tray (see Figure 54 on page 101):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to an approved site ESD grounding point. See the instructions for your site.
Grasp the fan tray by its handles, and insert it straight into the chassis.
2.
Tighten the captive screws on the top and bottom of the fan tray faceplate to secure
3.
it in the chassis.

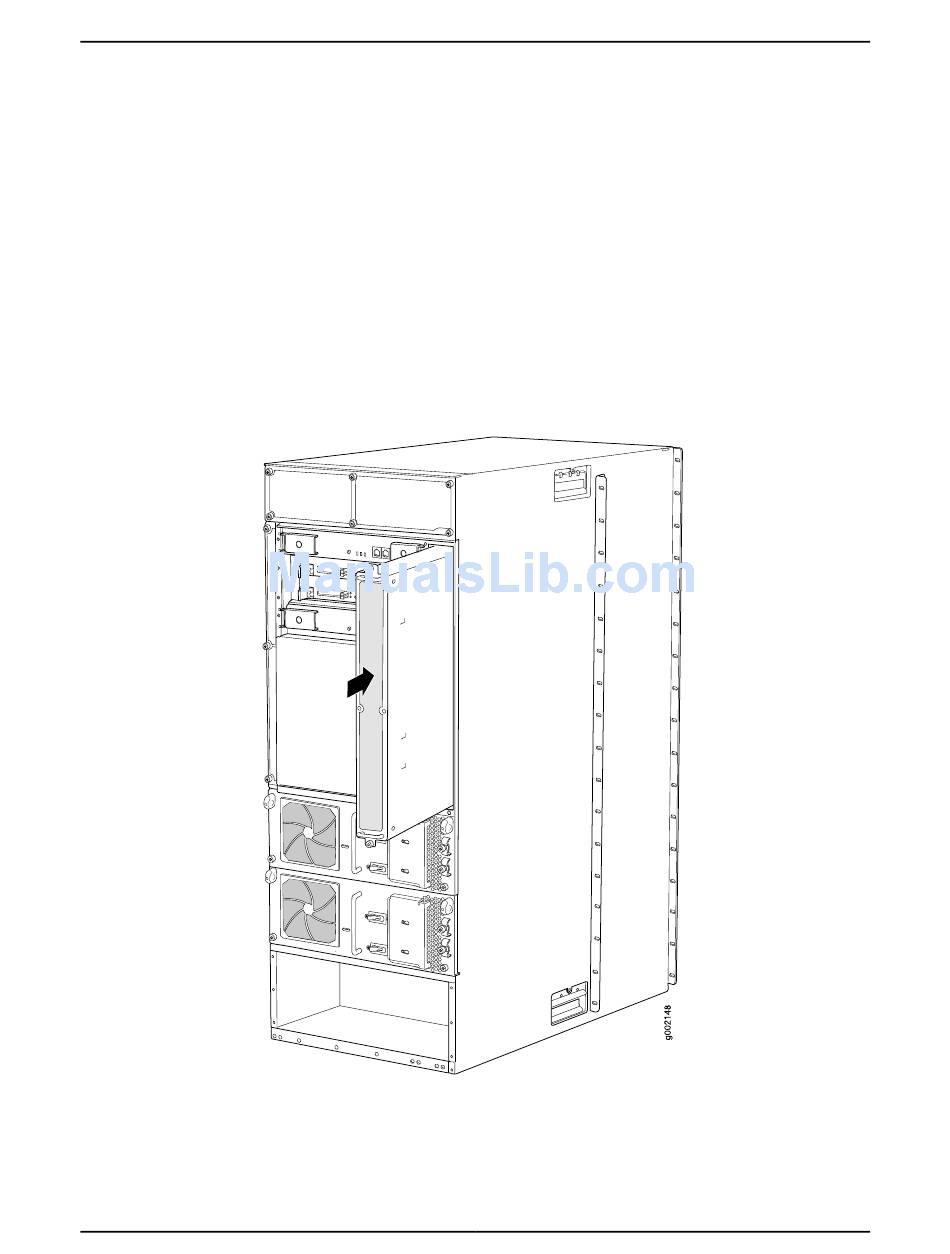

Figure 54: Reinstalling the Rear Fan Tray
Chapter 10: Installing the TX Matrix Chassis Without a Mechanical Lift
101
