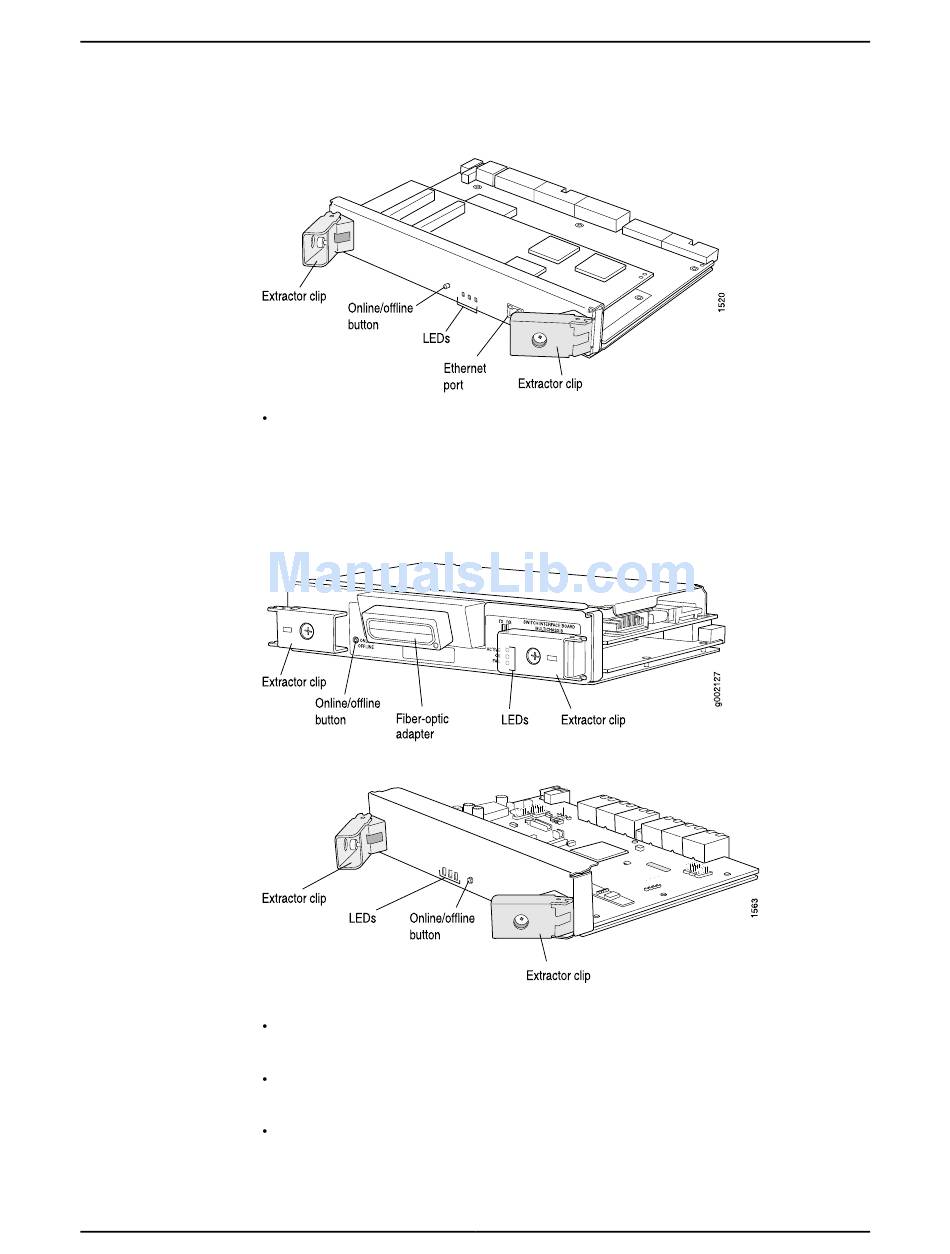

Figure 77: T640 Router Standard CB

Five T640-SIBs
If your T640 router already contains T-CBs and the new rear fan tray, but contains
standards SIBs, you can order and install a kit that contains only T640-SIBs. Figure 78
on page 163 and Figure 79 on page 163 illustrate the difference between a T640-SIB and
a standard SIB or SIB version B.

Figure 78: T640-SIB

Figure 79: T640 Router Standard SIB

Upgrading the Rear Fan Tray in a T640 Router Before Integrating the Router into a
Routing Matrix on page 165
Overview of Integrating an Operational T640 Router with the TX Matrix Router on
page 169
Overview of Integrating an Offline T640 Router with the TX Matrix Router on page 179
Chapter 19: Converting a T640 Router
163
