TX Matrix Midplane Description

Copyright © 2010, Juniper Networks, Inc.

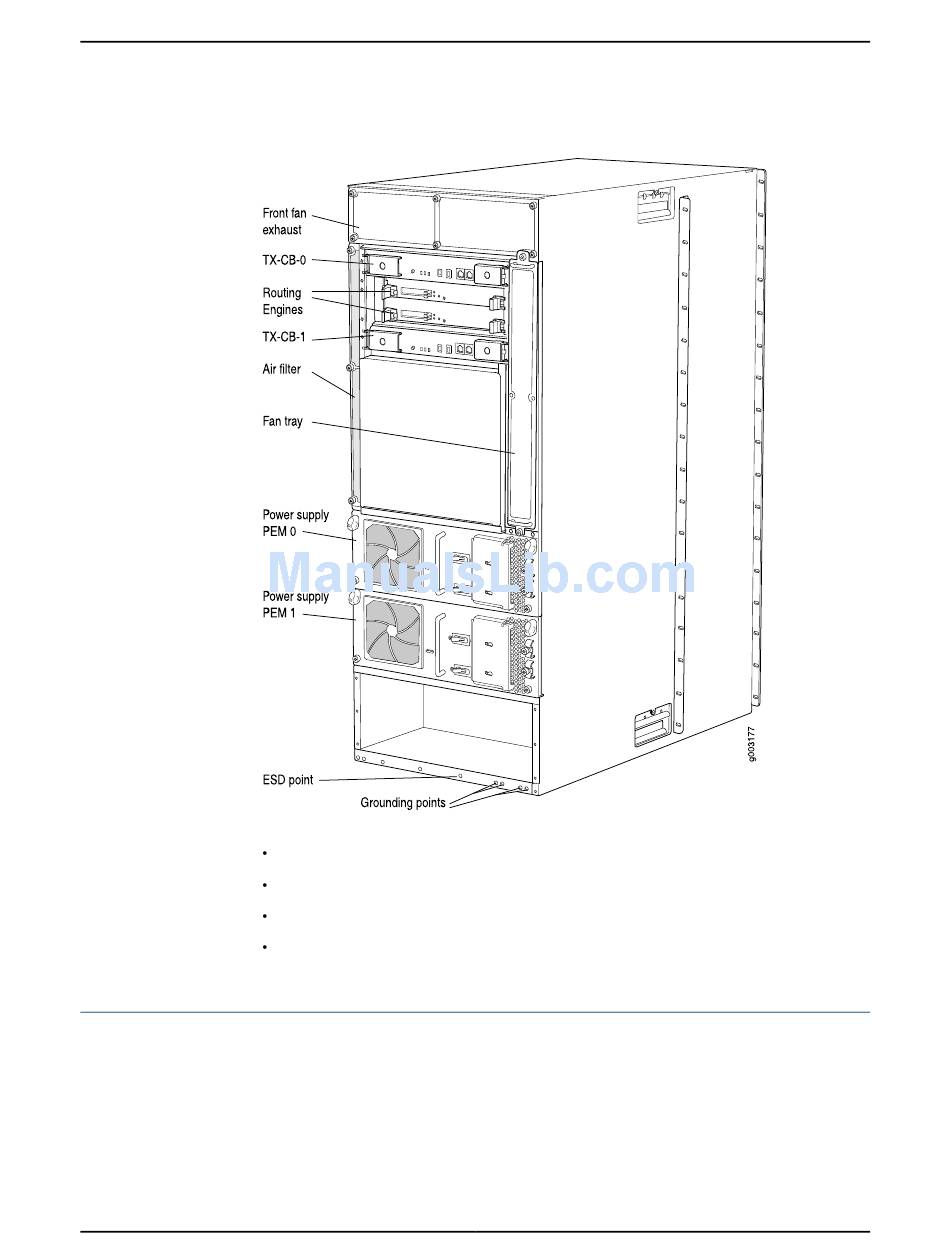

Figure 9: Rear View of the TX Matrix Router

Rack Requirements for TX Matrix Routers on page 61
TX Matrix Preventing Electrostatic Discharge Damage on page 298
TX Matrix Physical Specifications on page 333
TX Matrix Chassis Grounding Specifications on page 337
The midplane is located in the center of the chassis and forms the rear of the TX-SIB
card cage (see Figure 10 on page 22). The TX-SIBs install into the midplane from the
front of the chassis, and the Routing Engines and TX-CBs install into the midplane from
the rear of the chassis. The power supplies and cooling system components also connect
to the midplane.
Chapter 3: TX Matrix Hardware Components Overview
