Installing a TX Matrix Power Supply Filter Element

Related
Documentation
290

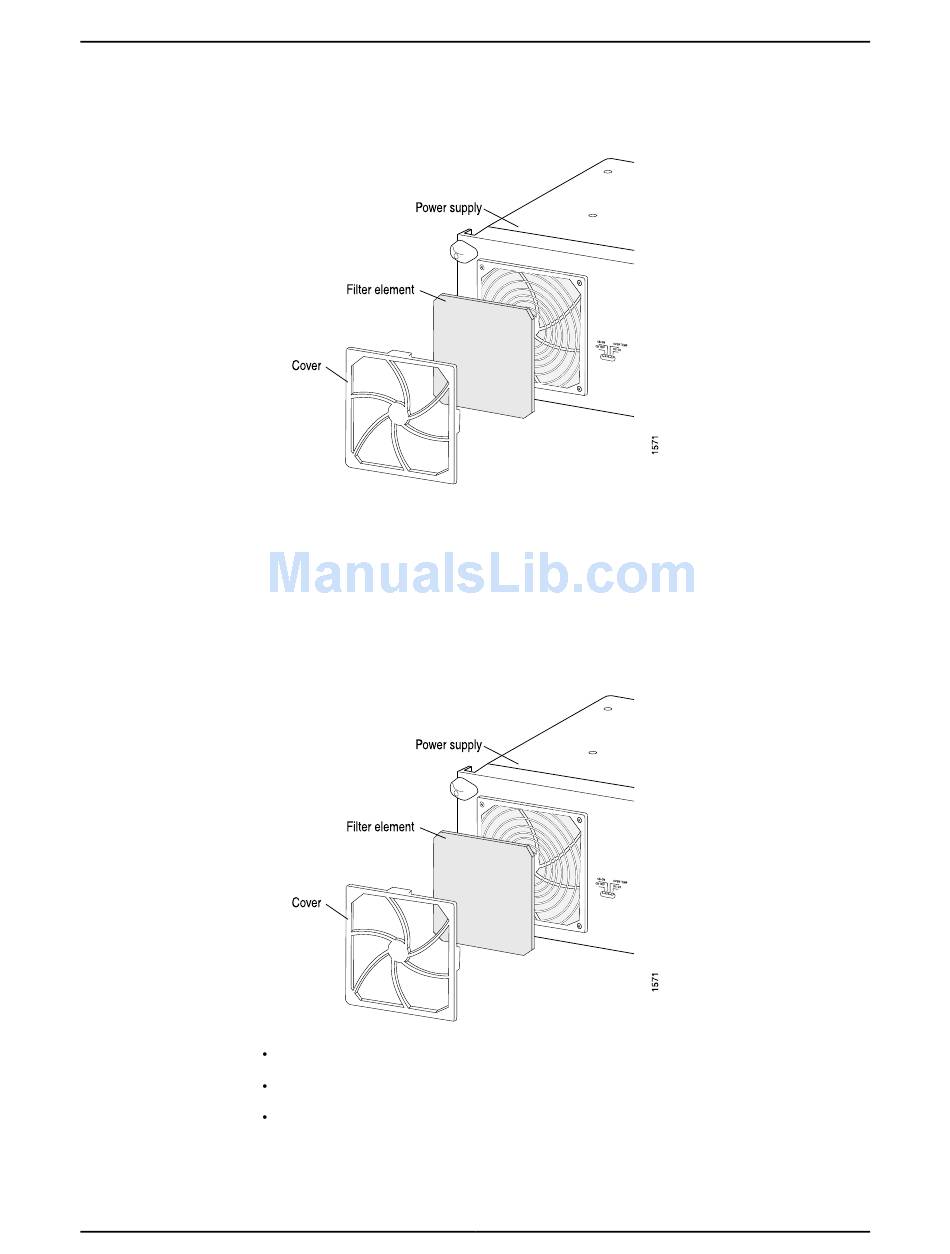

Figure 136: Removing the Power Supply Filter Cover

To install a power supply filter element (see Figure 137 on page 290):
Install a new filter element.
1.
Press the filter cover straight onto the power supply faceplate until all four sides click
2.
into place.

Figure 137: Installing the Power Supply Filter Cover

TX Matrix Two-Input 160-A Power Supply Overview on page 41
TX Matrix Three-Input 240-A Power Supply Overview on page 44
TX Matrix Preventing Electrostatic Discharge Damage on page 298
