Removing the Front Fan Trays
Copyright © 2010, Juniper Networks, Inc.
The front fan trays are located in the lower front of the chassis below the craft interface.
Each front fan tray weighs about 18.6 lb (8.4 kg).
To remove the front fan trays (see Figure 51 on page 97):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to an approved site ESD grounding point. See the instructions for your site.
Loosen the captive screws on the corners of the faceplate of one of the fan trays.
2.
Grasp the handles and pull the fan tray halfway out of the chassis.
3.
Place one hand under the fan tray to support it, and pull the fan tray completely out
4.
of the chassis.
Repeat the procedure to remove the remaining front fan tray.
5.

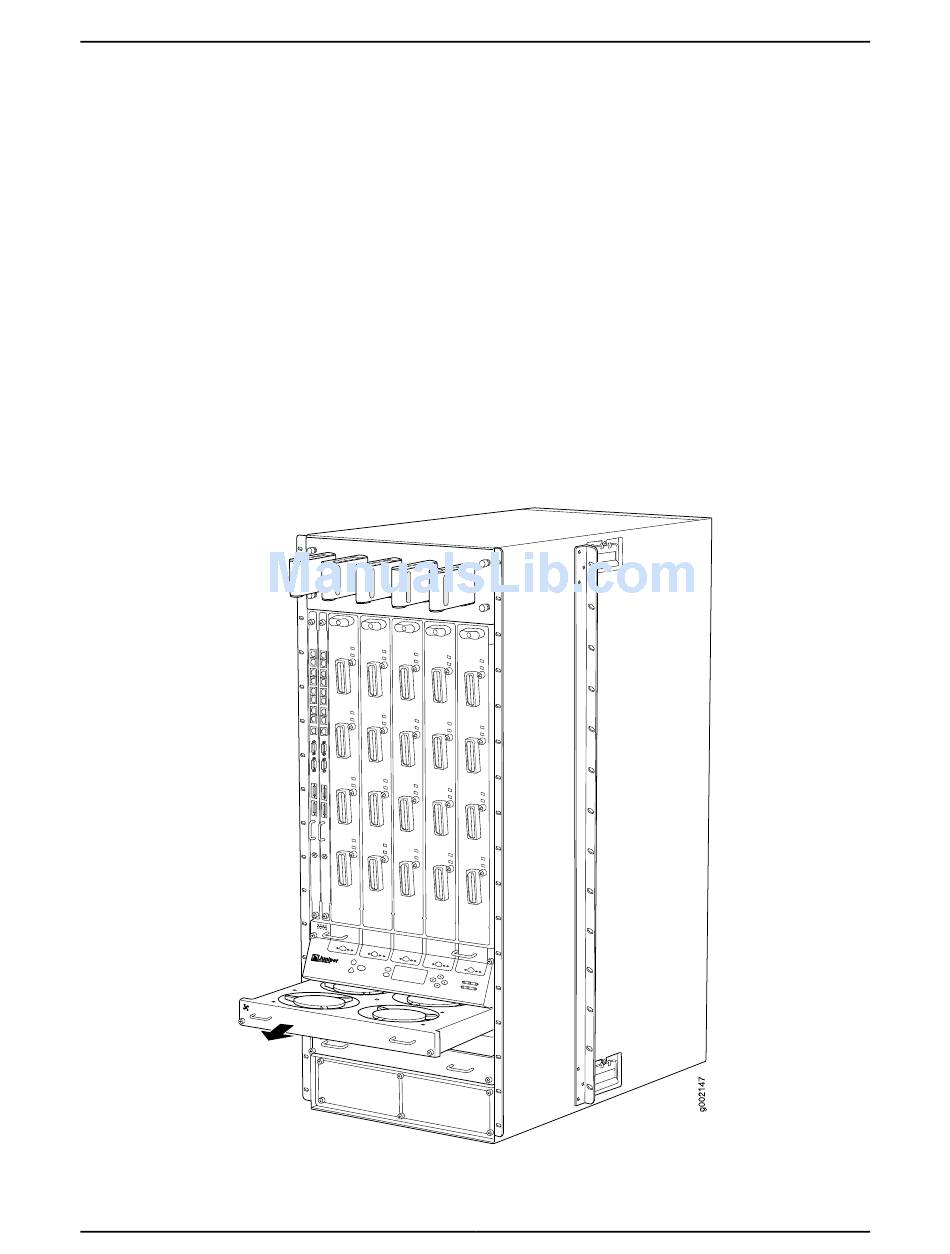

Figure 51: Removing a Front Fan Tray
Chapter 10: Installing the TX Matrix Chassis Without a Mechanical Lift
97
