Related
Documentation

Replacing a TX Matrix Power Supply Filter Element

Removing a TX Matrix Power Supply Filter Element

Copyright © 2010, Juniper Networks, Inc.

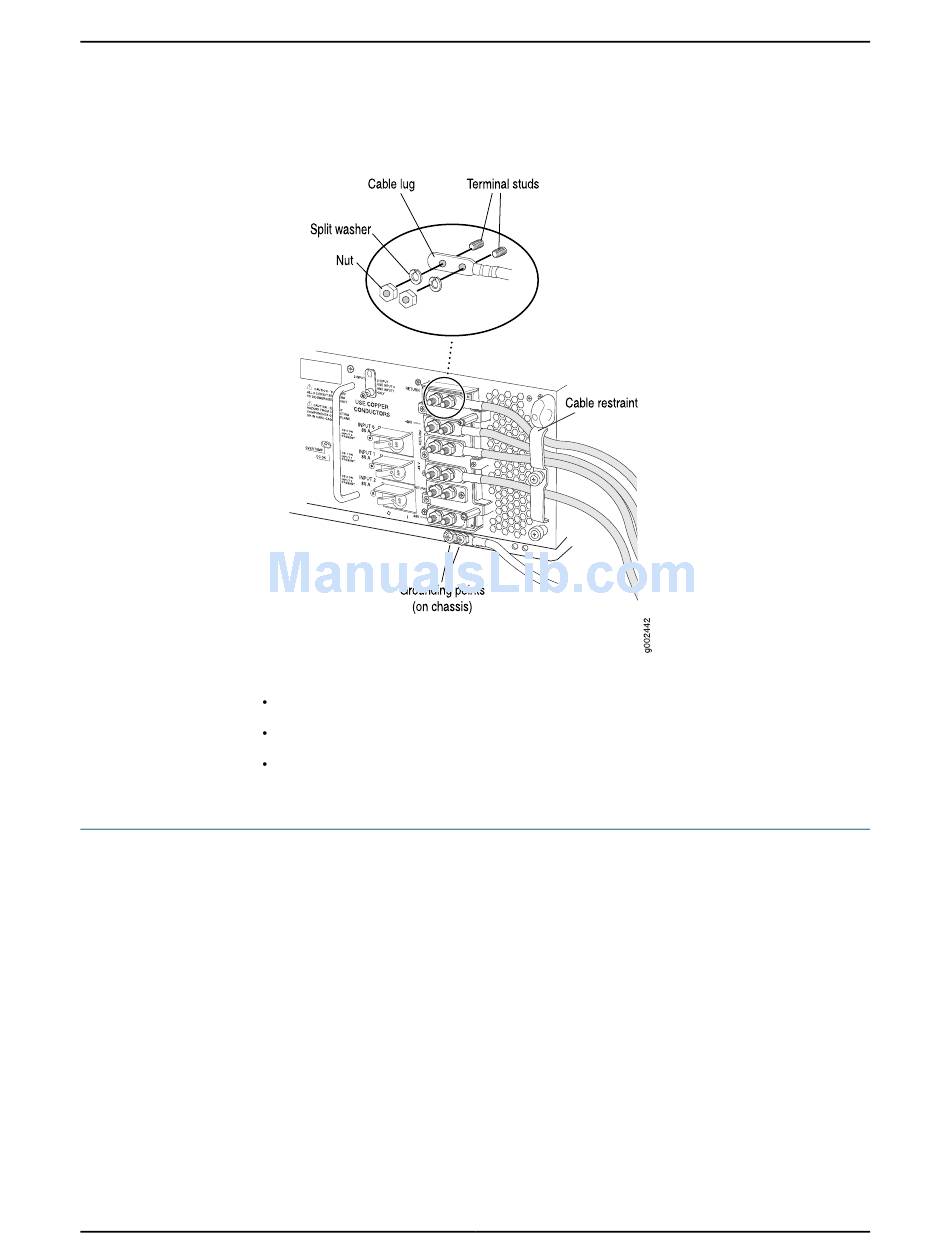

Figure 135: Connecting a DC Power Cable to a Three-Input 240-A DC
Power Supply
TX Matrix Two-Input 160-A Power Supply Overview on page 41
TX Matrix Three-Input 240-A Power Supply Overview on page 44
TX Matrix Preventing Electrostatic Discharge Damage on page 298
Removing a TX Matrix Power Supply Filter Element on page 289
1.
Installing a TX Matrix Power Supply Filter Element on page 290
2.
To remove a power supply filter element (see Figure 136 on page 290):
Grasp the filter cover on the power supply faceplate and pull it straight off the power
1.
supply.
Remove the filter element.
2.
Chapter 24: Replacing TX Matrix Hardware Components
289
