For the cooling system to function properly, the airflow around the chassis must be
unrestricted. Figure 33 on page 64 depicts the airflow in the TX Matrix router.

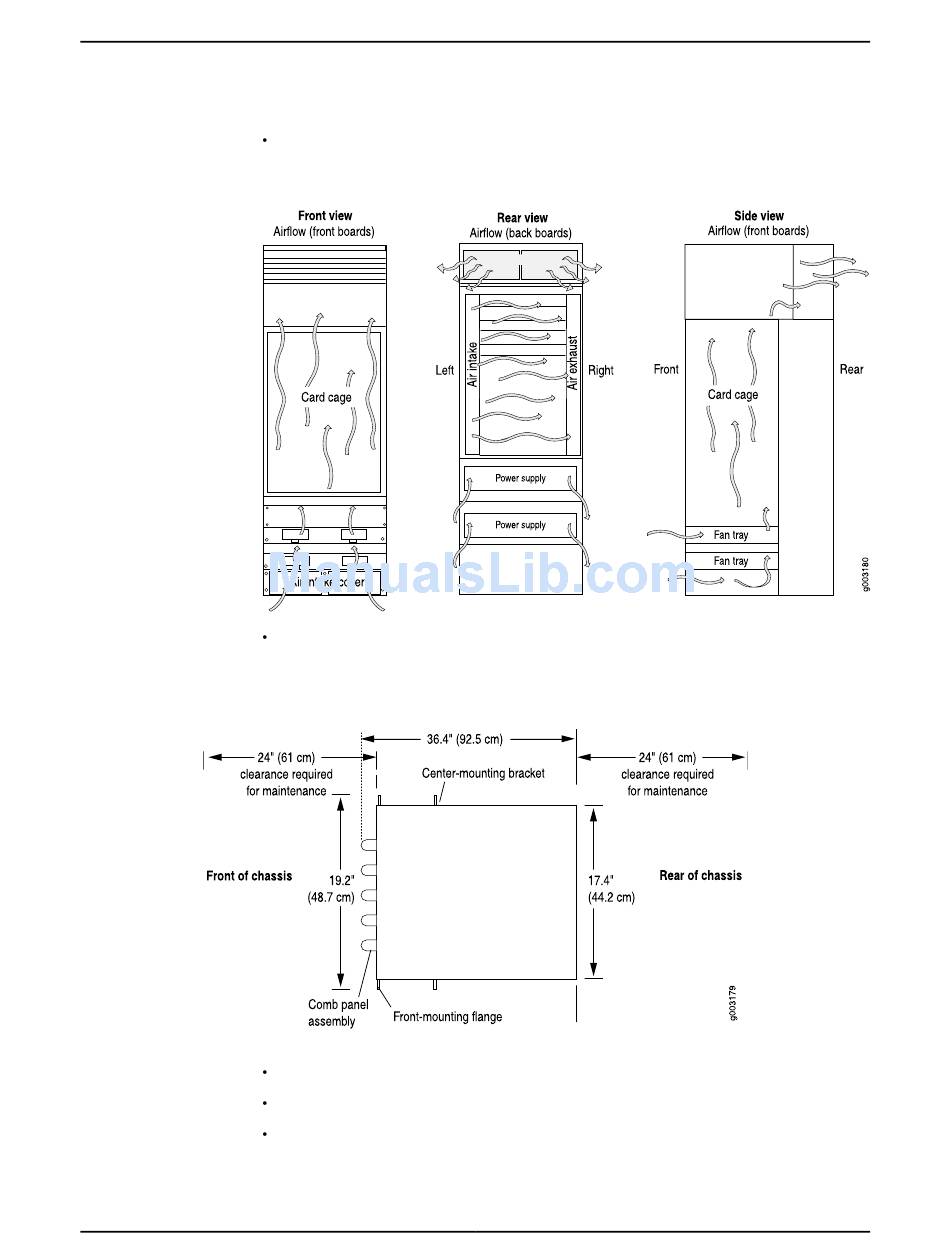

Figure 33: Airflow Through the Chassis

For service personnel to remove and install hardware components, there must be
adequate space at the front and back of the rack. Allow at least 30 in. (72.6 cm) in
front of the rack and 24 in. (61.0 cm) behind the rack (see Figure 34 on page 64).

Figure 34: Chassis Dimensions and Clearance Requirements

TX Matrix Cooling System Overview on page 47
Maintaining the TX Matrix Air Filters on page 194
Maintaining the TX Matrix Fan Trays on page 195
Air e xhaust
