Reinstalling the TX Matrix Components

100

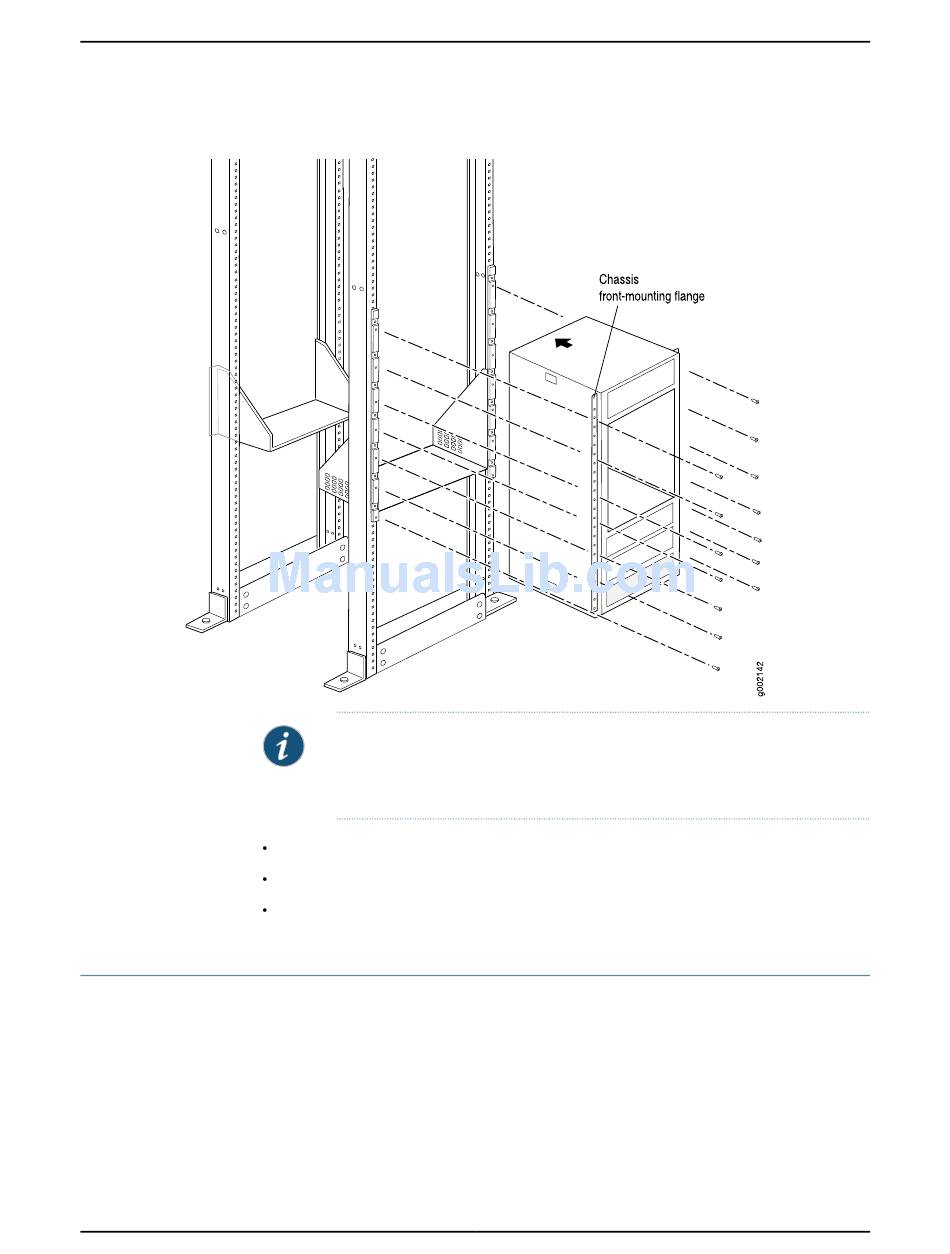

Figure 53: Installing the TX Matrix Chassis in the Rack

NOTE: This illustration depicts the TX Matrix chassis being installed in a
four-post rack. For an illustration of the mounting hardware required for an
open-frame rack, see Figure 41 on page 80.
Overview of Installing the TX Matrix Chassis Without a Mechanical Lift on page 91
Removing the TX Matrix Components on page 92
Reinstalling the TX Matrix Components on page 100
After the TX Matrix router is installed in the rack, you reinstall the removed components
before cabling, booting, and configuring the TX Matrix router. These procedures describe
how to reinstall components in the chassis, first in the rear and then in the front:
Reinstalling the Rear Fan Tray on page 101
1.
Reinstalling the TX-CBs on page 102
2.
Reinstalling the Power Supplies on page 102
3.
