Removing the Installation Handle

Copyright © 2010, Juniper Networks, Inc.

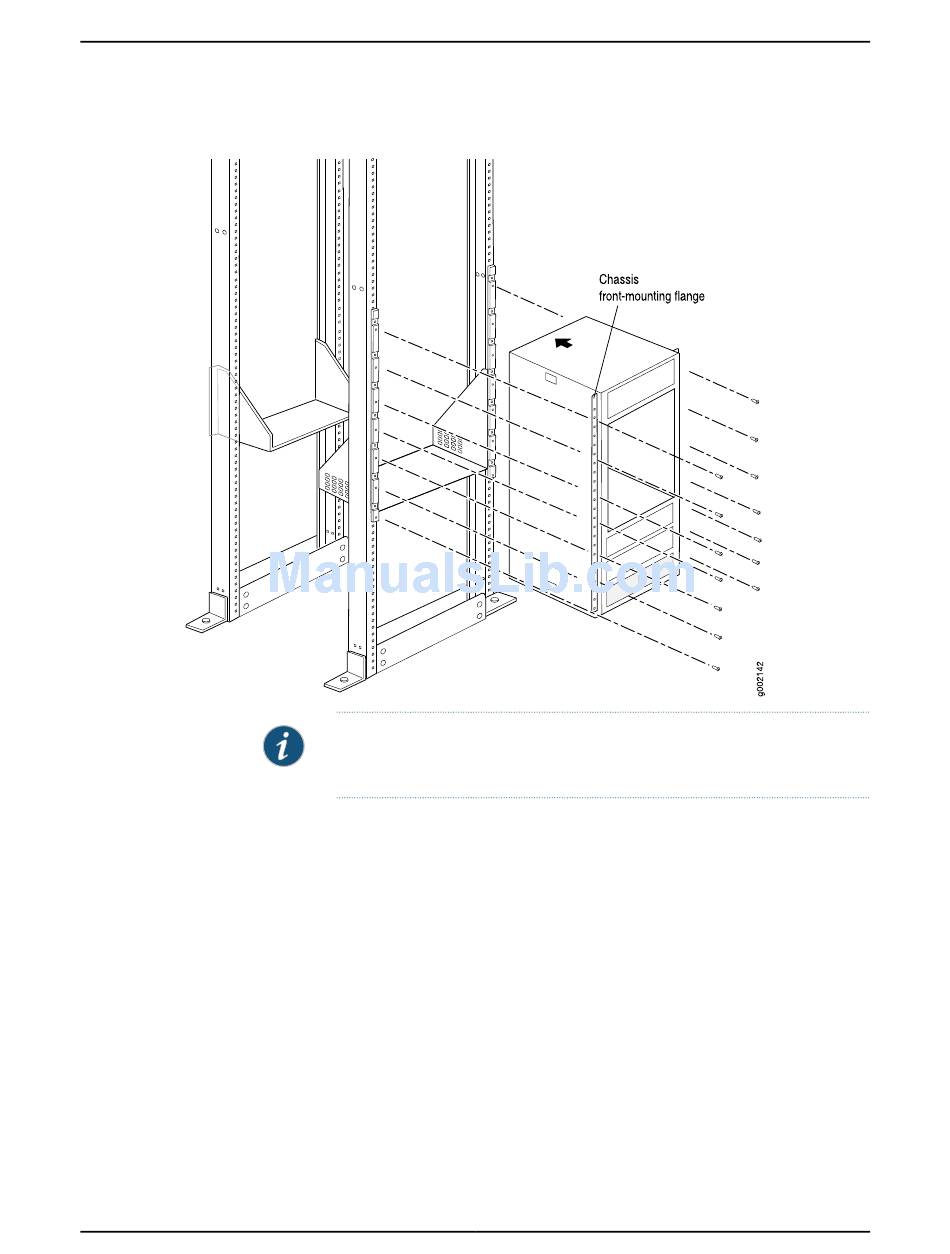

Figure 45: Installing the TX Matrix Chassis in the Rack

NOTE: This illustration depicts the TX Matrix chassis being installed in a
four-post rack.
After you have installed the TX Matrix chassis, remove the installation handle:
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to an approved site ESD grounding point. See the instructions for your site.
Using a Phillips (+) screwdriver, number 2, loosen the captive screws on the installation
2.
handle completely.
Remove the handle from the chassis.
3.
Chapter 9: Installing the TX Matrix Chassis Using a Mechanical Lift
89
