TX Matrix Hardware Guide
Related
Documentation

TX Matrix Routing Matrix Control Plane Architecture

8

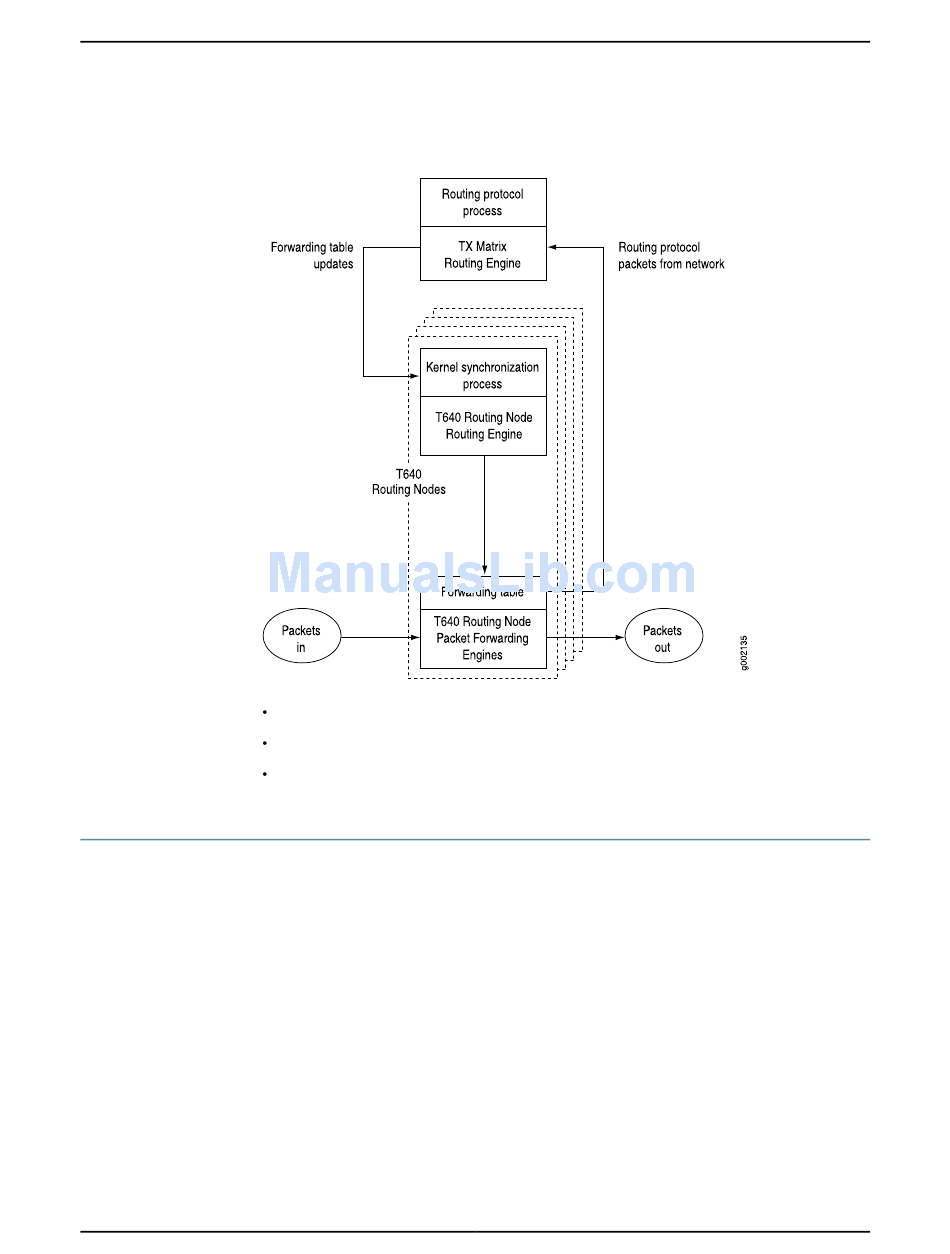

Figure 2: Control Packet Handling for Routing and Forwarding Table
Updates
TX Matrix Router Description on page 3
TX Matrix System Architecture Description on page 5
TX Matrix Routing Engine Description on page 26
The routing matrix contains two control planes. All master Routing Engines in the TX Matrix
router and T640 routers are on one control plane; all backup Routing Engines are on
another control plane (see Figure 3 on page 9). To manage the Routing Engines on a
control plane, you must be logged into the Routing Engine in the TX Matrix router on that
control plane. For example, you must be logged into the backup Routing Engine in the
TX Matrix router to upgrade the software of all backup Routing Engines in the routing
matrix.
