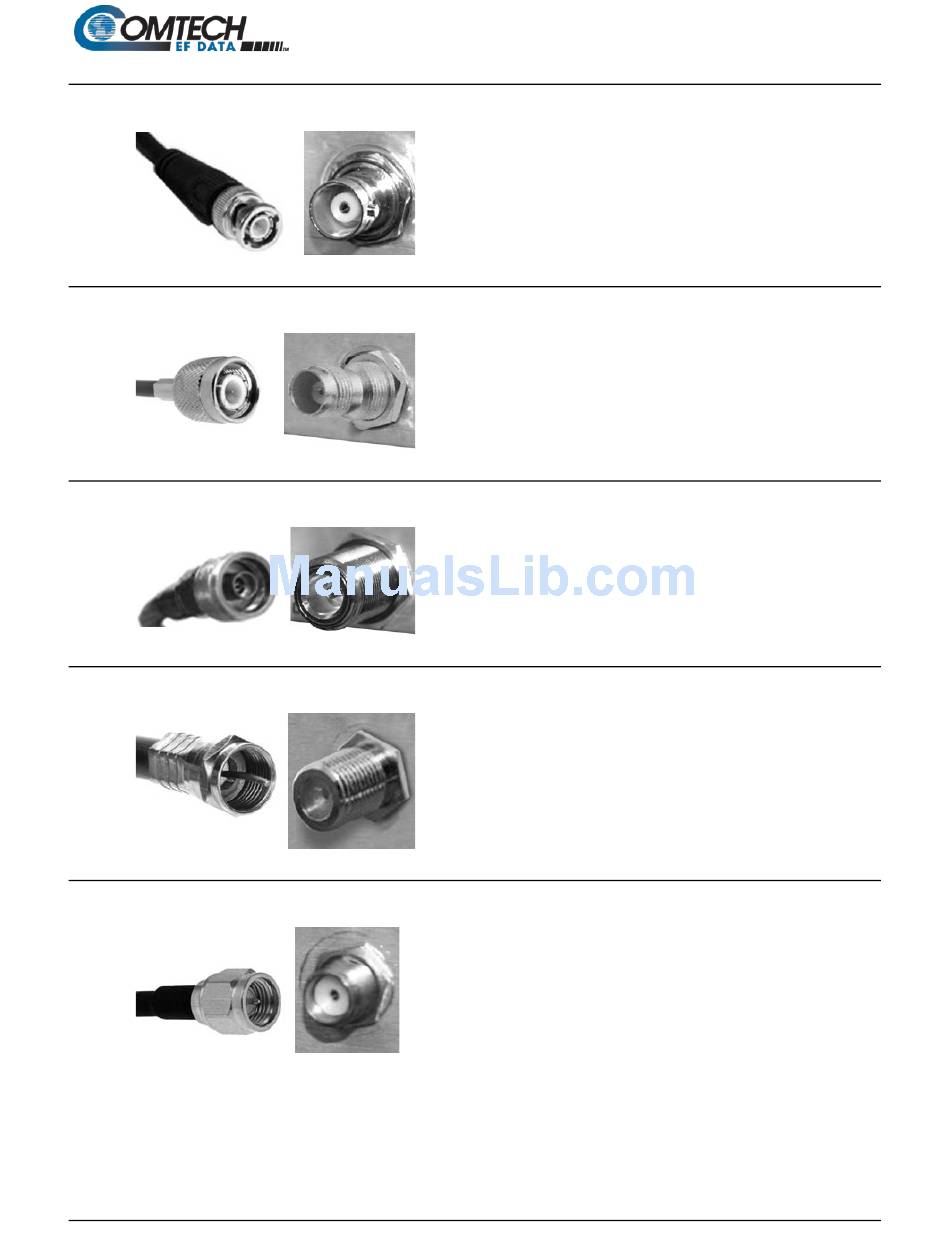

4.1.1.1

Type 'BNC'

4.1.1.2

Type 'TNC'

4.1.1.3

Type 'N'

4.1.1.4

Type 'F'

4.1.1.5

Type 'SMA'

Rear Panel Connectors
BNC plugs and jacks feature a Bayonet
Coupling design.
TNC plugs and jacks feature a Threaded
Coupling design similar to Type 'N', Type 'F,'
and Type 'SMA' connectors.
Type 'N' connectors feature a Threaded
Coupling design similar to Type 'TNC', Type
'F', and Type 'SMA' connectors.
Type 'F' connectors feature a Threaded
Coupling design similar to Type 'TNC', Type
'N', and Type 'SMA' connectors.
Type 'SMA' connectors feature a Threaded
Coupling design similar to Type 'TNC', Type
'N', and Type 'F' connectors.
