E.7.5.5 WAN Pages
Select QoS, QoS Stats, or Loopback Test to continue.
This section depicts the NP HTTP/HTTPS Interface with Quality of Service (QoS)
and Vipersat installed on the SLM-5650A. QoS and Vipersat are FAST Feature
options which must be purchased from Comtech EF Data. See Section E.2.5.2.2
Admin | FAST Features for more information.
Note that, if the SLM-5650A does not have the QoS option installed, the QoS
hyperlinks outlined in this section will not be visible/available to the user. When
QoS is disabled, a separate QoS status page is shown.
E.7.5.5.1 WAN | QoS (Quality of Service)
Quality of Service Feature
Select the Quality of Service operation as On or Off. Click [Submit].
Differential Services (DiffServ)
The option is available here for configuring each queue to one of the following attributes (the
minimum/maximum value range is shown in brackets):
•
Service Rate (kbps) [ 0.000 / (Tx Data Rate)]
•
Med. Drop Precedence (% full) [20 / 90]
•
High Drop Precedence (% full) [10 / 80]
•
Max Queue Depth (bytes) [1500 / 64000]
Click [Submit] after all values have been adjusted to enable settings.
Appendix E

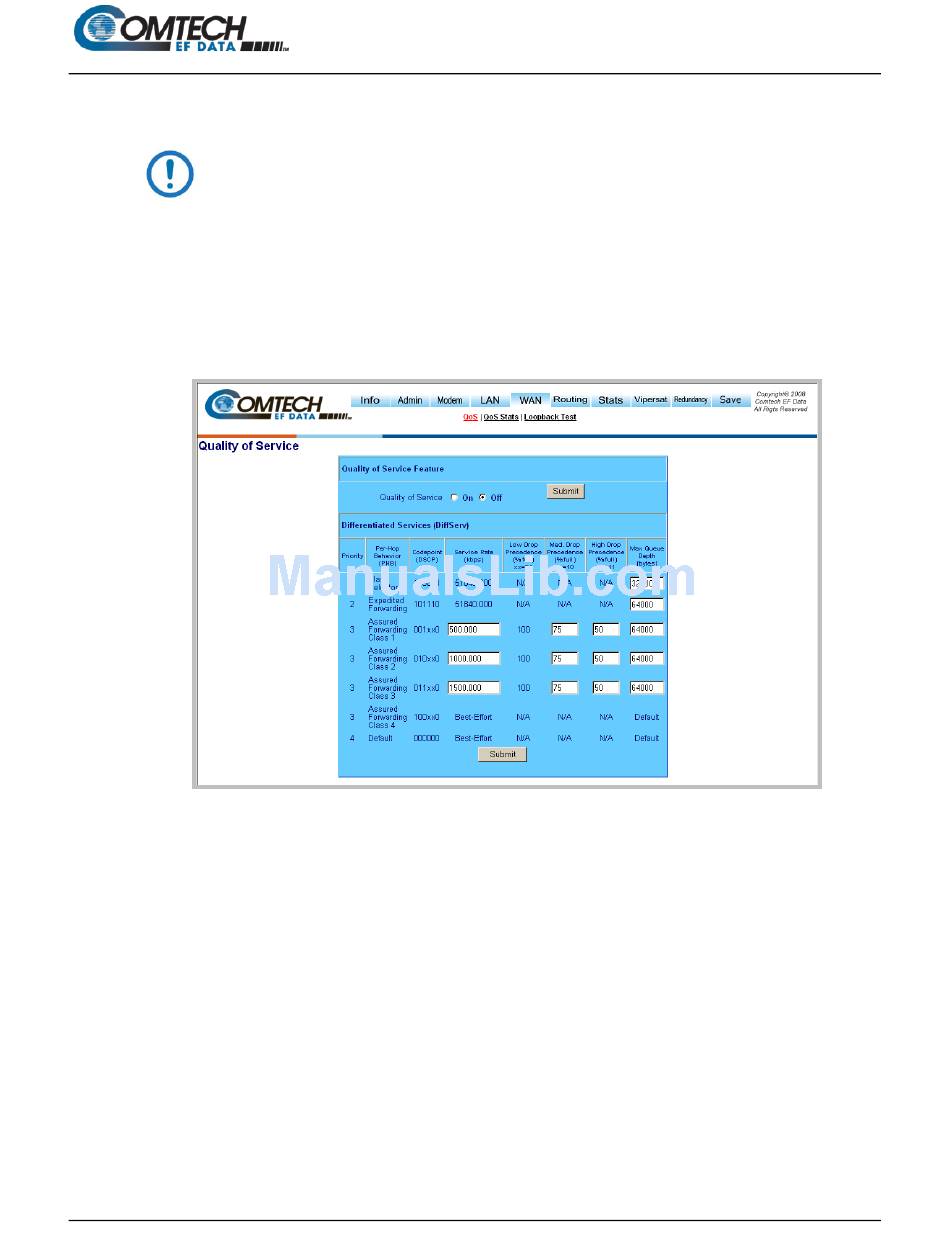

Figure E-24. WAN | Quality of Service Page
