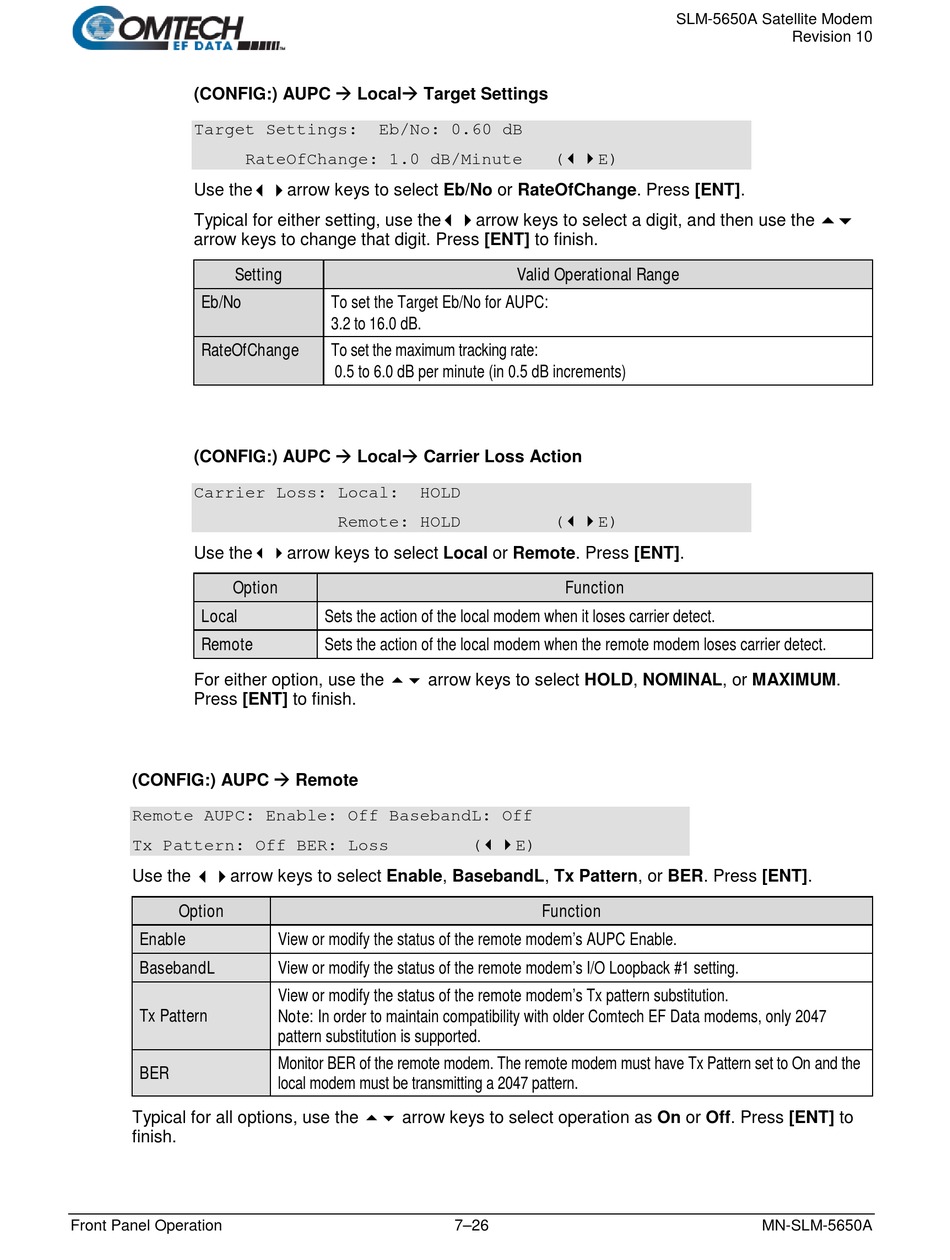

(CONFIG:) AUPC  Local Target Settings
Target Settings:
RateOfChange: 1.0 dB/Minute
Use thearrow keys to select Eb/No or RateOfChange. Press [ENT].
Typical for either setting, use thearrow keys to select a digit, and then use the 
arrow keys to change that digit. Press [ENT] to finish.
Setting
Eb/No
RateOfChange
(CONFIG:) AUPC  Local Carrier Loss Action
Carrier Loss: Local:
Use thearrow keys to select Local or Remote. Press [ENT].
Option
Local
Remote
For either option, use the  arrow keys to select HOLD, NOMINAL, or MAXIMUM.
Press [ENT] to finish.
(CONFIG:) AUPC  Remote
Remote AUPC: Enable: Off BasebandL: Off
Tx Pattern: Off BER: Loss
Use the arrow keys to select Enable, BasebandL, Tx Pattern, or BER. Press [ENT].
Option
Enable
BasebandL
Tx Pattern
BER
Typical for all options, use the  arrow keys to select operation as On or Off. Press [ENT] to
finish.
Front Panel Operation
Eb/No: 0.60 dB
To set the Target Eb/No for AUPC:
3.2 to 16.0 dB.
To set the maximum tracking rate:
0.5 to 6.0 dB per minute (in 0.5 dB increments)
HOLD
Remote: HOLD
Sets the action of the local modem when it loses carrier detect.
Sets the action of the local modem when the remote modem loses carrier detect.
View or modify the status of the remote modem's AUPC Enable.
View or modify the status of the remote modem's I/O Loopback #1 setting.
View or modify the status of the remote modem's Tx pattern substitution.
Note: In order to maintain compatibility with older Comtech EF Data modems, only 2047
pattern substitution is supported.
Monitor BER of the remote modem. The remote modem must have Tx Pattern set to On and the
local modem must be transmitting a 2047 pattern.
