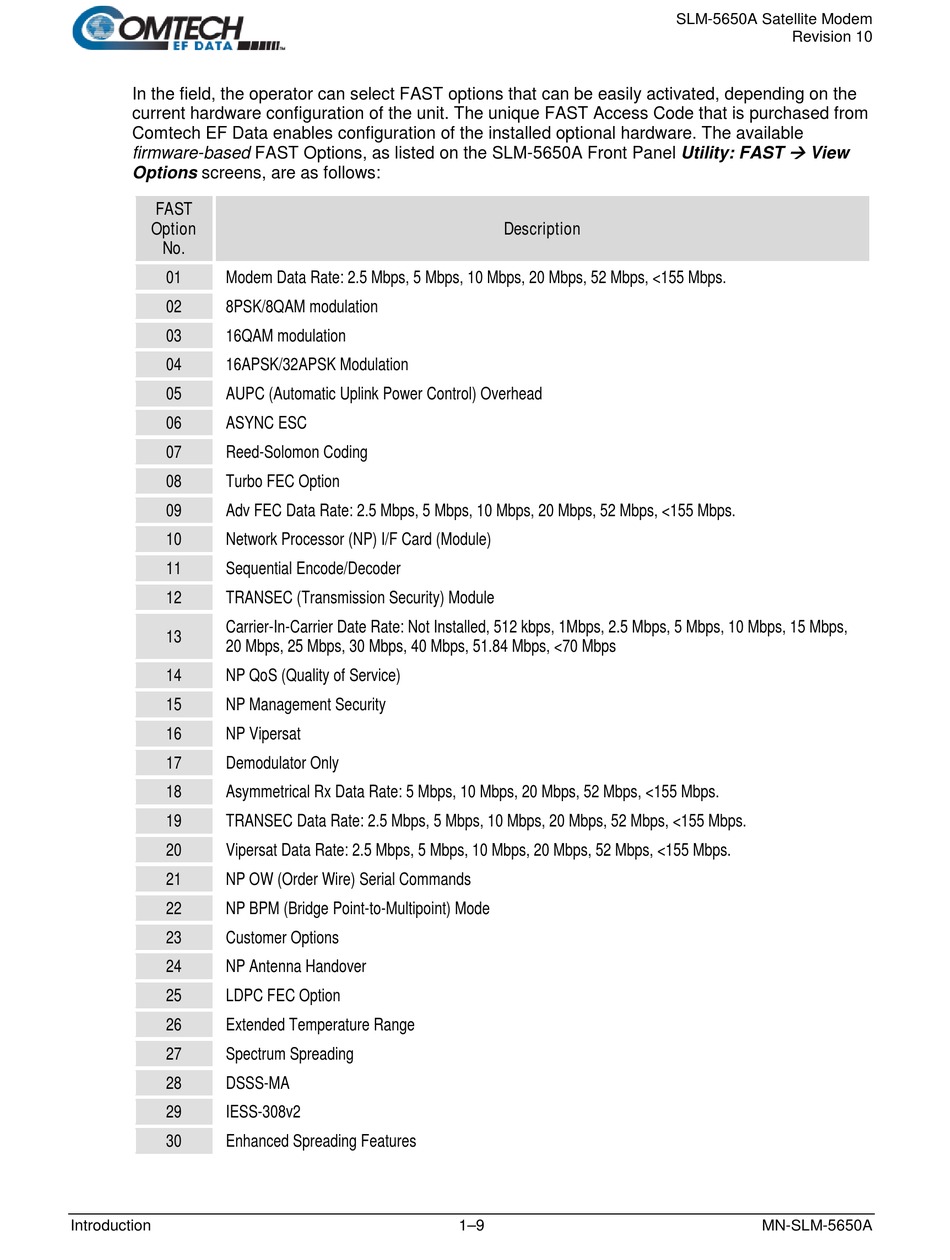

Comtech EF Data SLM-5650A Installation And Operation Manual page 37

In the field, the operator can select FAST options that can be easily activated, depending on the
current hardware configuration of the unit. The unique FAST Access Code that is purchased from
Comtech EF Data enables configuration of the installed optional hardware. The available
firmware-based FAST Options, as listed on the SLM-5650A Front Panel Utility: FAST
Options screens, are as follows:
FAST
Option
No.
01 Modem Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
02 8PSK/8QAM modulation
03 16QAM modulation
04 16APSK/32APSK Modulation
05 AUPC (Automatic Uplink Power Control) Overhead
06 ASYNC ESC
07 Reed-Solomon Coding
08 Turbo FEC Option
09 Adv FEC Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
10 Network Processor (NP) I/F Card (Module)
11 Sequential Encode/Decoder
12 TRANSEC (Transmission Security) Module
Carrier-In-Carrier Date Rate: Not Installed, 512 kbps, 1Mbps, 2.5 Mbps, 5 Mbps, 10 Mbps, 15 Mbps,
13
20 Mbps, 25 Mbps, 30 Mbps, 40 Mbps, 51.84 Mbps, <70 Mbps
14 NP QoS (Quality of Service)
15 NP Management Security
16 NP Vipersat
17 Demodulator Only
18 Asymmetrical Rx Data Rate: 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
19 TRANSEC Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
20 Vipersat Data Rate: 2.5 Mbps, 5 Mbps, 10 Mbps, 20 Mbps, 52 Mbps, <155 Mbps.
21 NP OW (Order Wire) Serial Commands
22 NP BPM (Bridge Point-to-Multipoint) Mode
23 Customer Options
24 NP Antenna Handover
25 LDPC FEC Option
26 Extended Temperature Range
27 Spectrum Spreading
28 DSSS-MA
29 IESS-308v2
30 Enhanced Spreading Features
