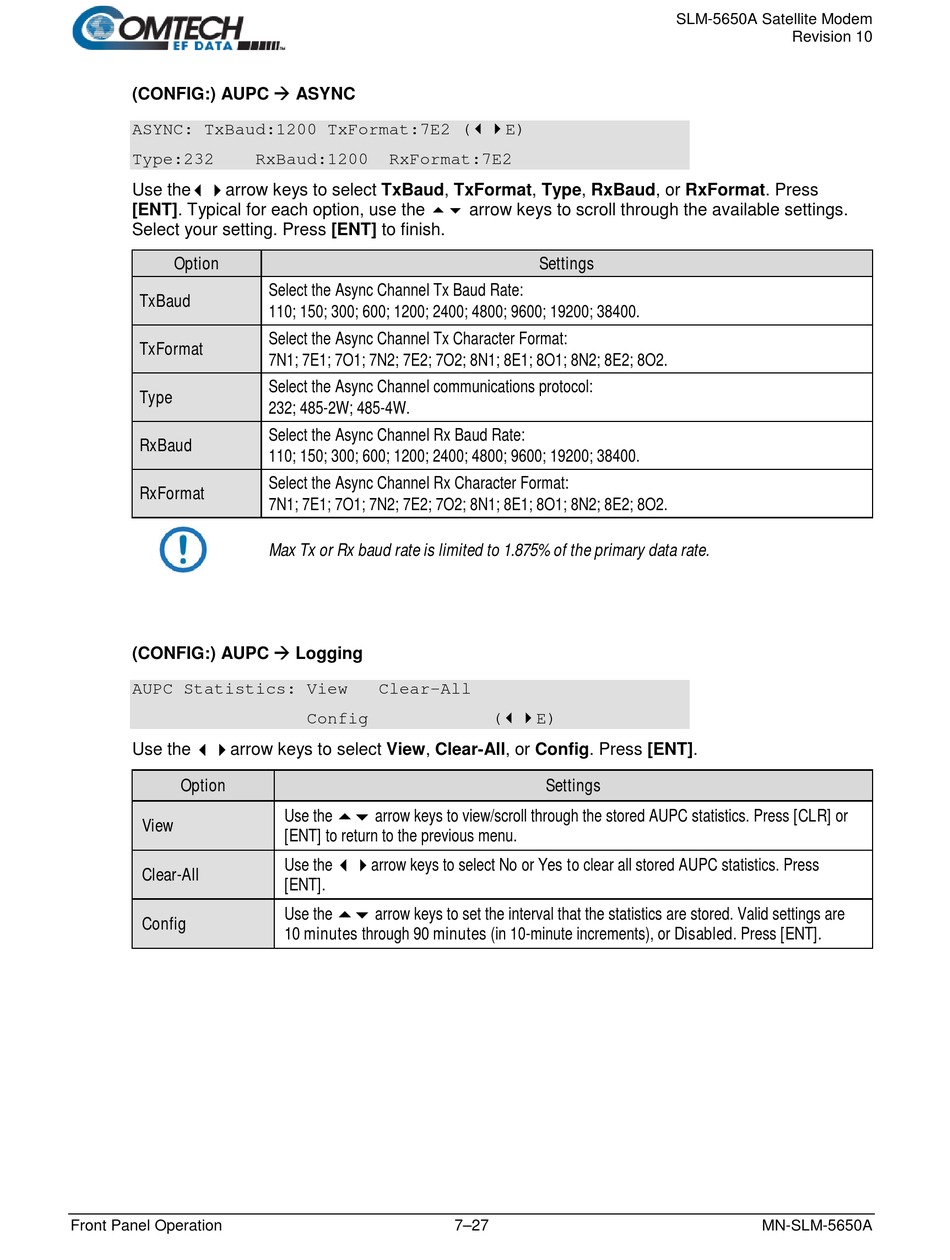

(CONFIG:) AUPC  ASYNC
ASYNC: TxBaud:1200 TxFormat:7E2 (E)
Type:232
Use thearrow keys to select TxBaud, TxFormat, Type, RxBaud, or RxFormat. Press
[ENT]. Typical for each option, use the  arrow keys to scroll through the available settings.
Select your setting. Press [ENT] to finish.
Option
TxBaud
TxFormat
Type
RxBaud
RxFormat
(CONFIG:) AUPC  Logging
AUPC Statistics: View
Use the arrow keys to select View, Clear-All, or Config. Press [ENT].
Option
View
Clear-All
Config
Front Panel Operation
RxBaud:1200 RxFormat:7E2
Select the Async Channel Tx Baud Rate:
110; 150; 300; 600; 1200; 2400; 4800; 9600; 19200; 38400.
Select the Async Channel Tx Character Format:
7N1; 7E1; 7O1; 7N2; 7E2; 7O2; 8N1; 8E1; 8O1; 8N2; 8E2; 8O2.
Select the Async Channel communications protocol:
232; 485-2W; 485-4W.
Select the Async Channel Rx Baud Rate:
110; 150; 300; 600; 1200; 2400; 4800; 9600; 19200; 38400.
Select the Async Channel Rx Character Format:
7N1; 7E1; 7O1; 7N2; 7E2; 7O2; 8N1; 8E1; 8O1; 8N2; 8E2; 8O2.
Max Tx or Rx baud rate is limited to 1.875% of the primary data rate.
Clear-All
Config
Use the  arrow keys to view/scroll through the stored AUPC statistics. Press [CLR] or
[ENT] to return to the previous menu.
Use the arrow keys to select No or Yes to clear all stored AUPC statistics. Press
[ENT].
Use the  arrow keys to set the interval that the statistics are stored. Valid settings are
10 minutes through 90 minutes (in 10-minute increments), or Disabled. Press [ENT].
Settings
(E)
Settings
7–27
