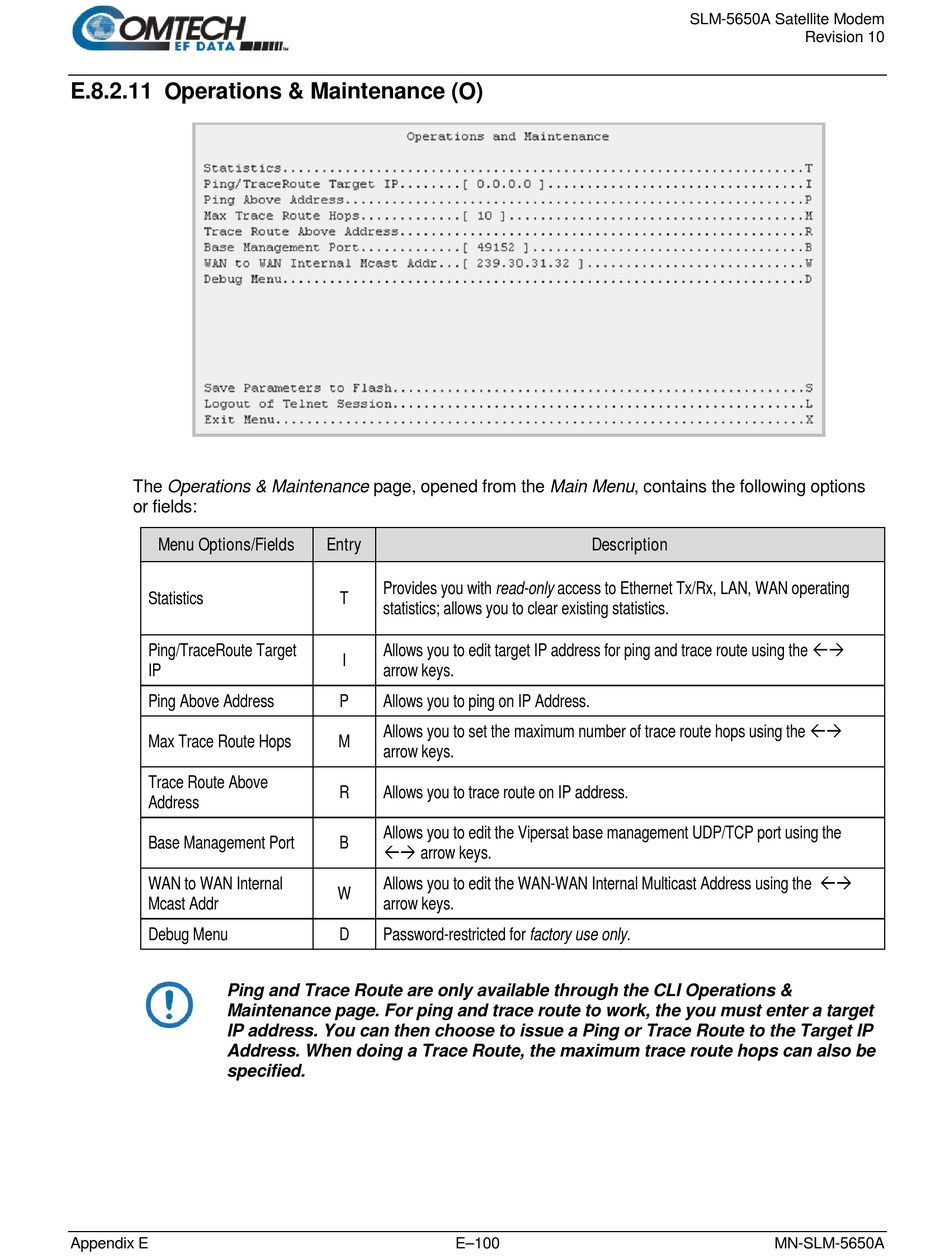

E.8.2.11 Operations & Maintenance (O)
The Operations & Maintenance page, opened from the Main Menu, contains the following options
or fields:
Menu Options/Fields
Statistics
Ping/TraceRoute Target
IP
Ping Above Address
Max Trace Route Hops
Trace Route Above
Address
Base Management Port
WAN to WAN Internal
Mcast Addr
Debug Menu
Ping and Trace Route are only available through the CLI Operations &
Maintenance page. For ping and trace route to work, the you must enter a target
IP address. You can then choose to issue a Ping or Trace Route to the Target IP
Address. When doing a Trace Route, the maximum trace route hops can also be
specified.
Appendix E
Entry
Provides you with read-only access to Ethernet Tx/Rx, LAN, WAN operating
T
statistics; allows you to clear existing statistics.
Allows you to edit target IP address for ping and trace route using the 
I
arrow keys.
P Allows you to ping on IP Address.
Allows you to set the maximum number of trace route hops using the 
M
arrow keys.
R Allows you to trace route on IP address.
Allows you to edit the Vipersat base management UDP/TCP port using the
B
 arrow keys.
Allows you to edit the WAN-WAN Internal Multicast Address using the 
W
arrow keys.
D Password-restricted for factory use only.
