Management IP Address – This is the IP Address of the NP Interface only. Once set to a valid
value, it is the address that should be used for M&C connectivity when IP Addressing Mode is set to
Dual.
Management Subnet Mask (1-30) – This is the subnet mask used in conjunction with the
Management IP Address to determine the subnet locally attached to by the LAN interfaces.
Click [Submit] to save changes made to any of the above items.
For VLAN Port Configuration:
Single Port VLAN – Use the drop-down list to select Enabled or Disabled. When Single Port
VLAN is Enabled, the SLM-5650A's Ethernet port accepts the VLAN-tagged packets from the NP
Interface port specified from the "VLAN Port Select" drop-down list.
VLAN Port Select – the use the drop-down list to select Port 1 through Port 4. This designates the
Ethernet port on which VLAN-tagged packet are ingress and egress.
Click [Submit] to save the desired Single Port VLAN setting.

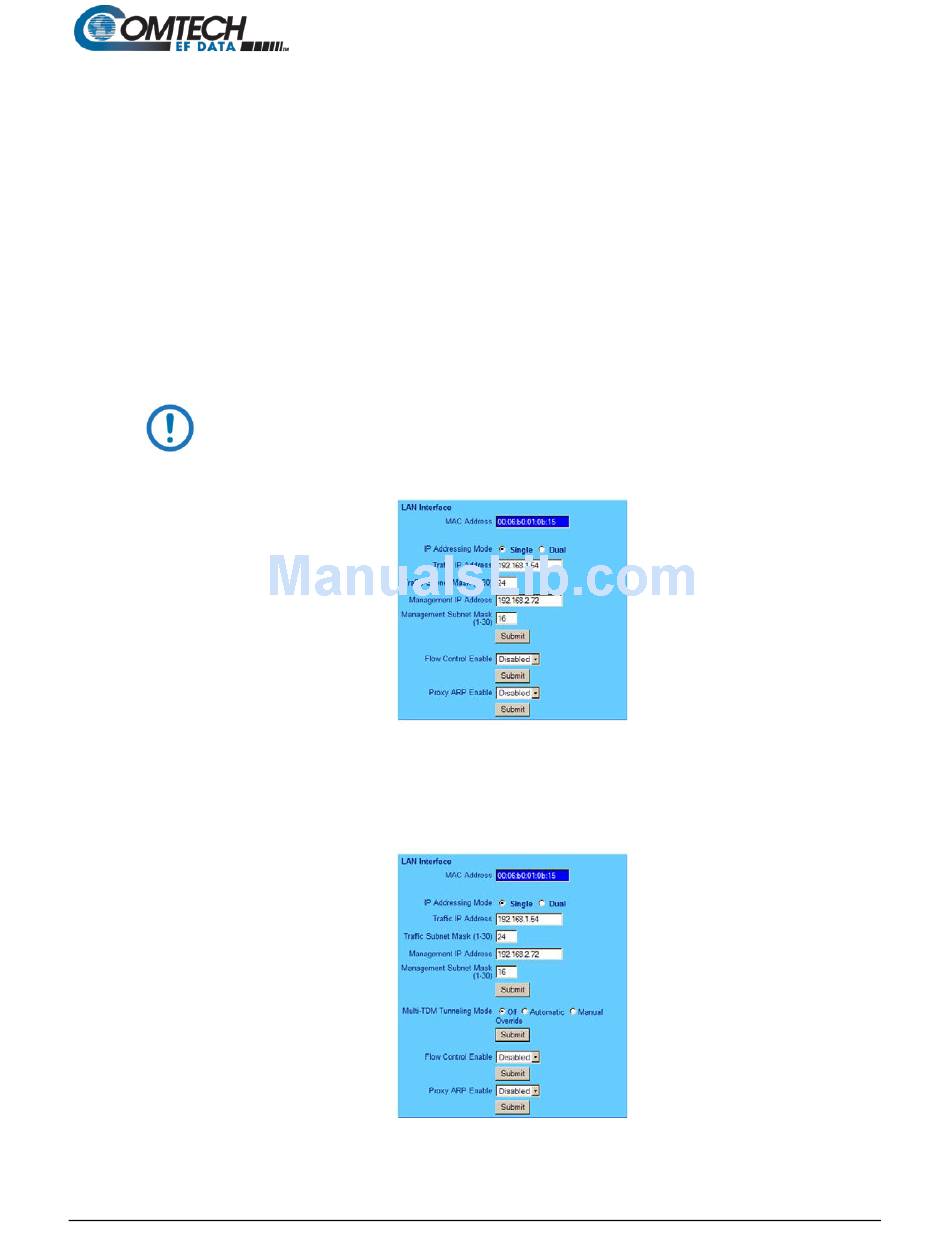

When BPM Mode is enabled and any Vipersat operating mode other than
Vipersat Hub or Vipersat Hub Expansion is selected (see E.3.5.2.1), the VLAN
Port Configuration portion of the 'LAN | Interface' page becomes disabled and is
not visible, as shown here:
However, when BPM Mode is enabled and either Vipersat Hub or Vipersat Hub
Expansion is selected (see E.3.5.2.1), the VLAN Port Configuration portion of the
'LAN | Interface' page is replaced with the Multi-TDM Tunneling Mode controls,
as shown here:
