E.7.5.6 Routing
Select Routes, OSPF, or IGMP (when enabled) to continue.
E.7.5.6.1 Routing | Routes
Use this page to enter static routes into the NP Interface. This facilitates the routing of IP traffic over
the satellite or to another device on the local LAN. Route entries can be in any combination of
Unicast and Multicast routes.
Route Table (Display)
This read-only table provides information on a per-route basis:
Column
Index
Route Description
Destination IP/Mask
Interface
Next Hop IP
Appendix E

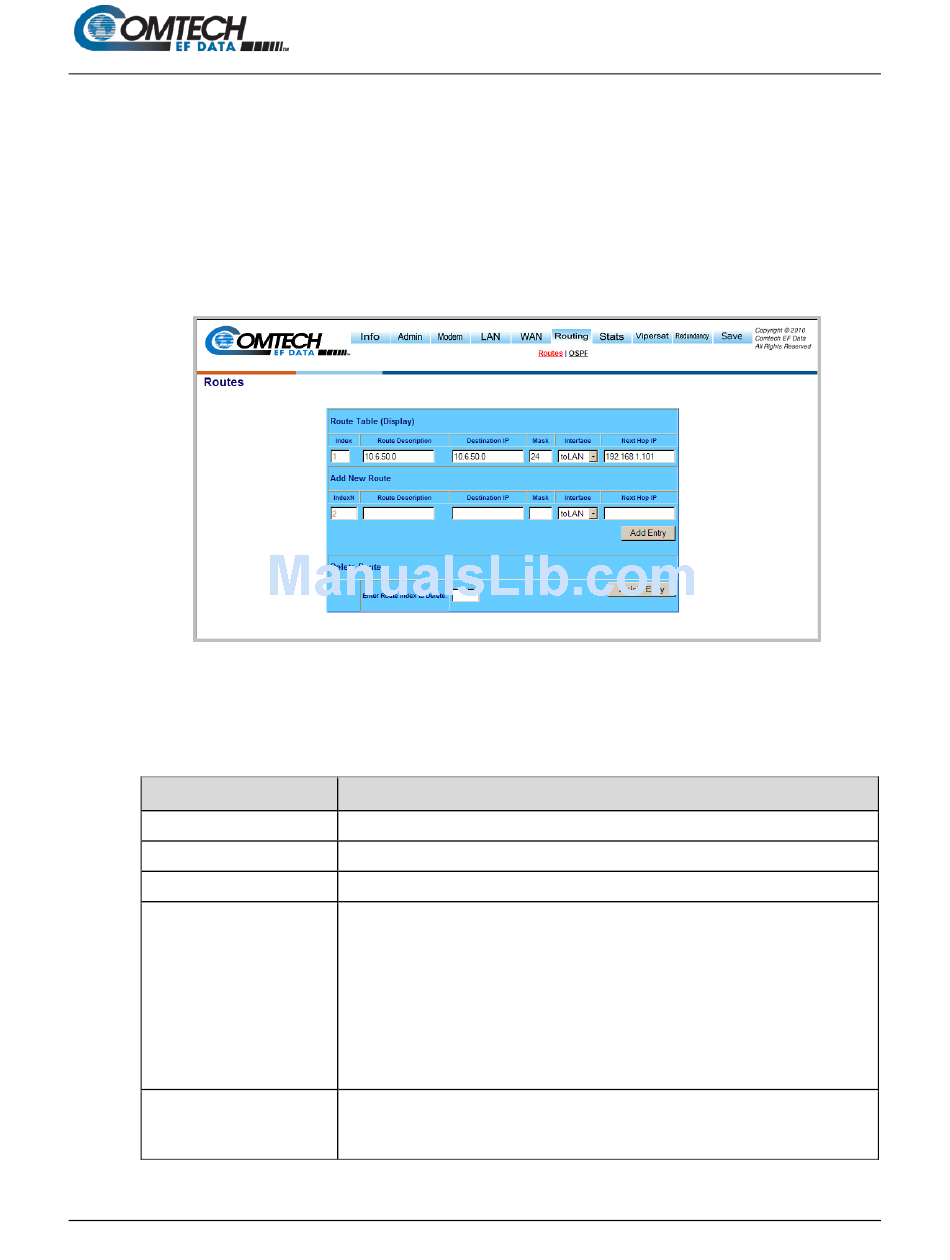

Figure E-27. Routing | Routes Page
This identifies the route entry [1 to 256].
This label helps users to maintain their network.
This identifies the route to the destination network.
There are two valid selections for routing to a destination network:
Select toWAN when the route to the destination network is over the satellite link. The
toWAN routes do not need a Next Hop IP Address.
Select toLAN when the route to the destination network is attached to the LAN
interface.
When the route type is toLAN, the Next Hop IP Address defines the locally attached
router's IP Address, which you can use to route to the destination network. This is the
case when there is another subnet addressed to the modem on the LAN side.
