E.7.5.5.2 WAN | QoS Stats (Quality of Service Statistics)
Clear / Refresh Differentiated Services (DiffServ) Stats
Click [Clear] to clear queue statistics. Click [Refresh] to update queue statistics.
Differential Services (DiffServ)
This read-only status table displays the following attributes:
Column
Priority
Per-Hop Behavior (PHB)
Codepoint (DSCP)
Sent Packets
Dropped Packets
Queued Packets
Queued Bytes
Queue Depth (% Full)
Bandwidth (kbps)
Appendix E

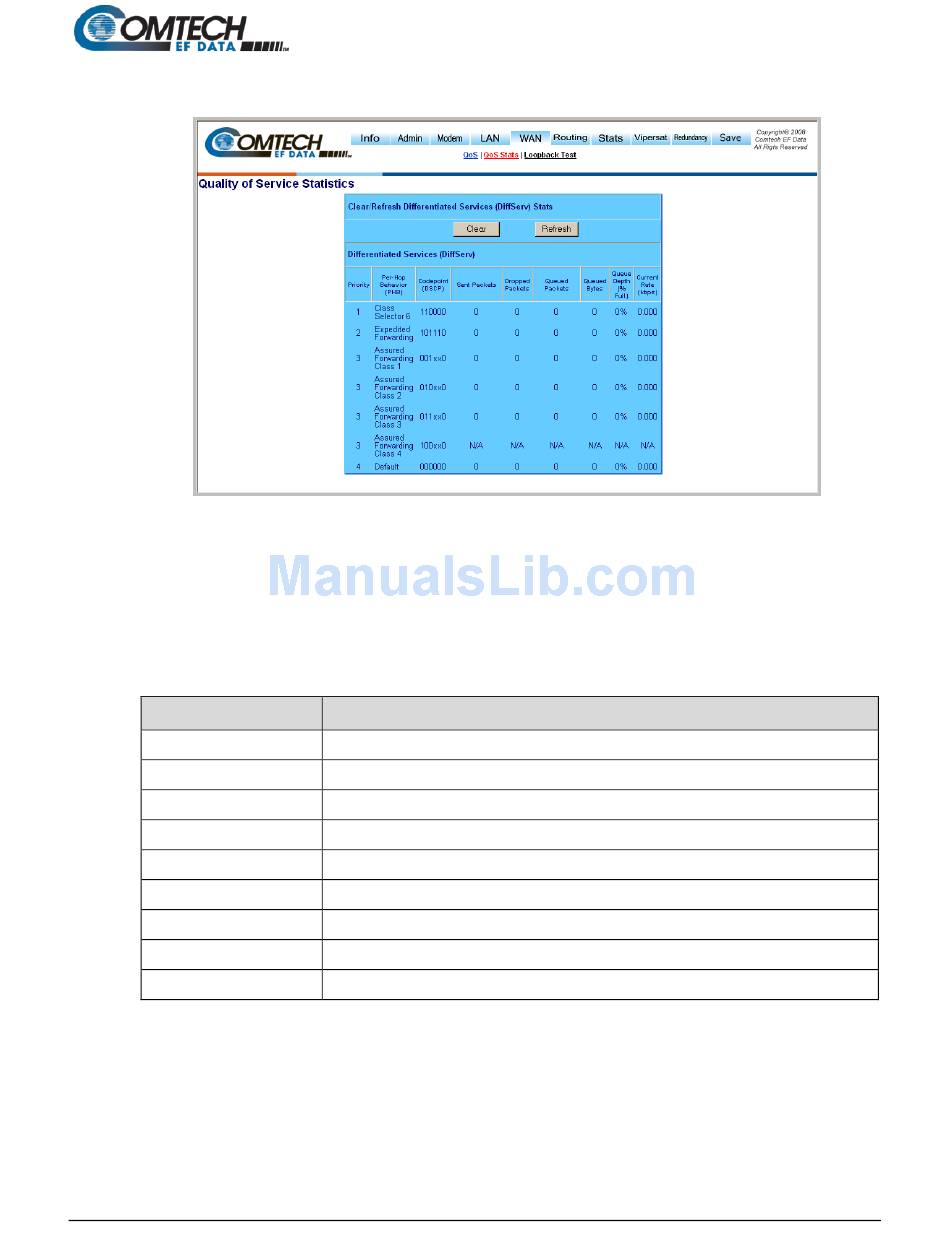

Figure E-25. WAN | Quality of Service Statistics Page
Traffic class that determines how packets will be forwarded.
Codepoint value in Type of Service (ToS) byte in IP header.
Number of packets sent from queue associated with PHB class.
Number of packets dropped in queue associated with PHB class.
Number of packets in queue associated with PHB class.
Number of bytes in queue associated with PHB class.
Percentage (%) full for queue associated with PHB class
Current data rate for queue associated with PHB class.
