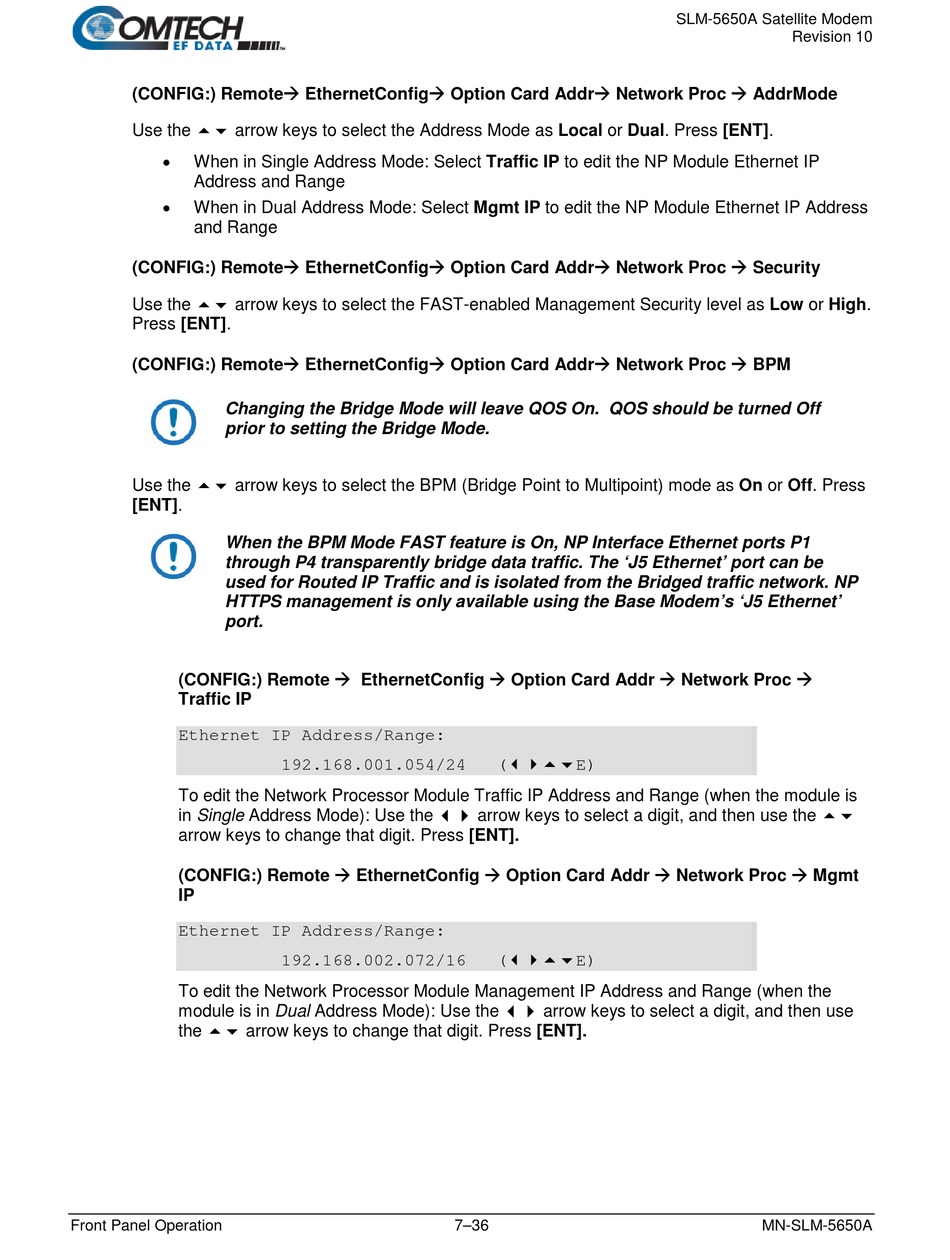

Comtech EF Data SLM-5650A Installation And Operation Manual page 142

(CONFIG:) Remote EthernetConfig Option Card Addr Network Proc  AddrMode
Use the  arrow keys to select the Address Mode as Local or Dual. Press [ENT].
•
When in Single Address Mode: Select Traffic IP to edit the NP Module Ethernet IP
Address and Range
•
When in Dual Address Mode: Select Mgmt IP to edit the NP Module Ethernet IP Address
and Range
(CONFIG:) Remote EthernetConfig Option Card Addr Network Proc  Security
Use the  arrow keys to select the FAST-enabled Management Security level as Low or High.
Press [ENT].
(CONFIG:) Remote EthernetConfig Option Card Addr Network Proc  BPM
Changing the Bridge Mode will leave QOS On. QOS should be turned Off
prior to setting the Bridge Mode.
Use the  arrow keys to select the BPM (Bridge Point to Multipoint) mode as On or Off. Press
[ENT].
When the BPM Mode FAST feature is On, NP Interface Ethernet ports P1
through P4 transparently bridge data traffic. The 'J5 Ethernet' port can be
used for Routed IP Traffic and is isolated from the Bridged traffic network. NP
HTTPS management is only available using the Base Modem's 'J5 Ethernet'
port.
(CONFIG:) Remote  EthernetConfig  Option Card Addr  Network Proc 
Traffic IP
Ethernet IP Address/Range:
To edit the Network Processor Module Traffic IP Address and Range (when the module is
in Single Address Mode): Use the  arrow keys to select a digit, and then use the 
arrow keys to change that digit. Press [ENT].
(CONFIG:) Remote  EthernetConfig  Option Card Addr  Network Proc  Mgmt
IP
Ethernet IP Address/Range:
To edit the Network Processor Module Management IP Address and Range (when the
module is in Dual Address Mode): Use the  arrow keys to select a digit, and then use
the  arrow keys to change that digit. Press [ENT].
Front Panel Operation
192.168.001.054/24
192.168.002.072/16
