E.7.5.4.2 LAN | Ethernet Ports
Use this page to view the current status of the Ethernet ports and to set each port to manual or
auto-negotiate configuration. Only the NP Interface Ethernet ports are shown in this screen. The
Base Modem Ethernet port statistics and port information are set from the modem's front panel.
Ethernet Link Status
This read-only section displays the status for each NP Interface Ethernet port.
Ethernet Speed/Duplex
Use the drop-down lists to configure each port to one of the following states: Auto, 1000 Full, 100
Full, 10 Full, 100 Half, or 10 Half.
Click [Submit] once the Ethernet ports have been configured to suit on this page.
Appendix E

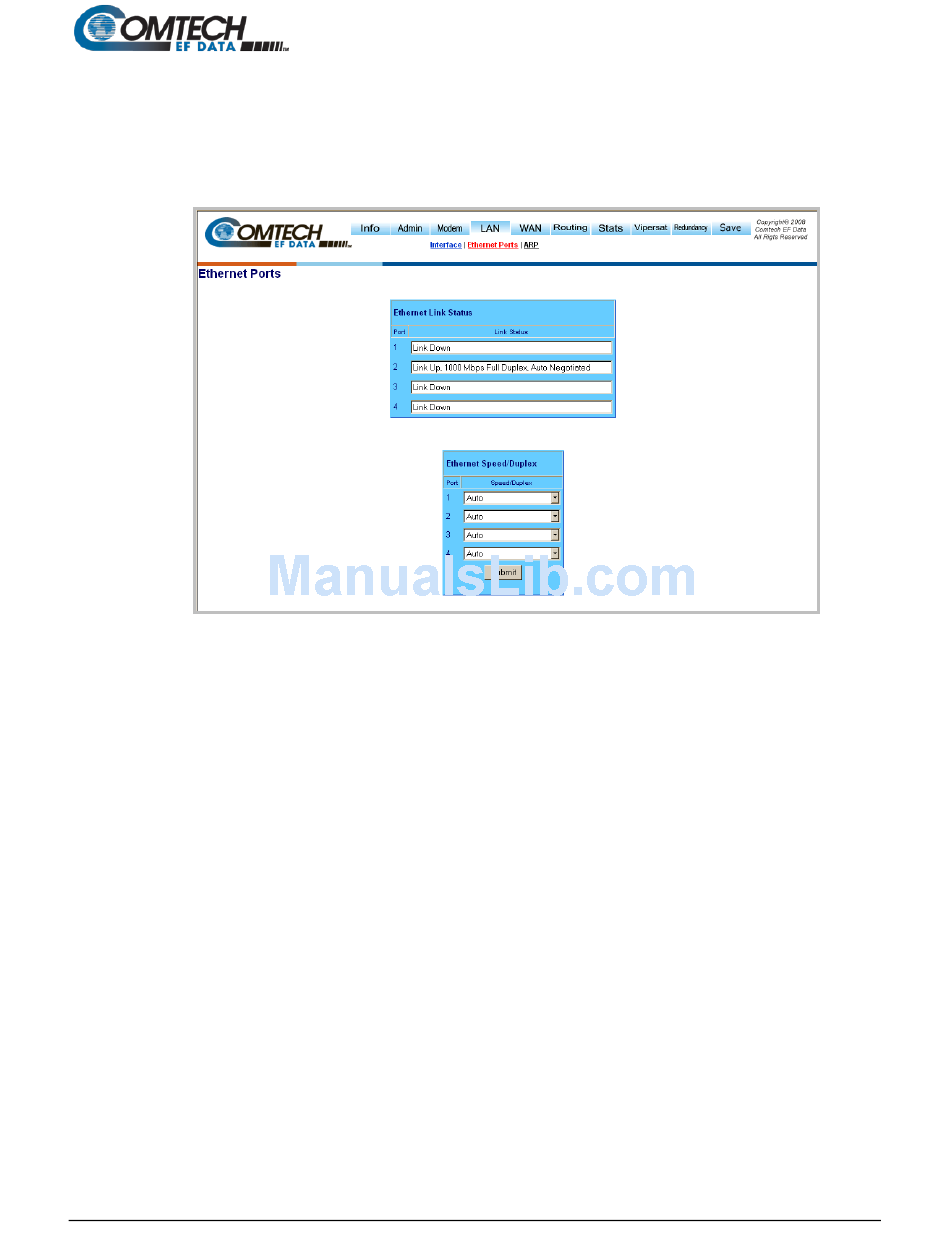

Figure E-22. LAN | Ethernet Ports Page
