receive buffer may have been received by a serial communication controller. Thus, it
is important to check more than just one RX buffer descriptor during interrupt handling.
One common practice is to process all RX buffer descriptors in the interrupt handler
until one is found with its E bit set.
4. Reset the status bit in the buffer descriptor's control and status field that is associated
with the interrupt. These bits do not reset after each I/O operation.
5. Clear the SCCx bit in the CISR.
6. Execute the rfi instruction.
16.9.10 Controlling SCCx Timing
When the DIAG field of the GSMR_L is programmed for normal operation, the CDx and
CTSx signals are automatically controlled by the serial communication controllers. The TCI
bit of the GSMR_L must also be programmed for normal operation.
16.9.10.1 SYNCHRONOUS PROTOCOLS. In synchronous protocols, the RTSx pin is
asserted when SCCx data is loaded into the transmit FIFO and a falling transmit clock
occurs. At this point, the serial communication controller starts transmitting data once the
appropriate conditions occur on the CTSx pin. In all cases, the first bit of data is the start of
the opening flag, sync pattern, or preamble.

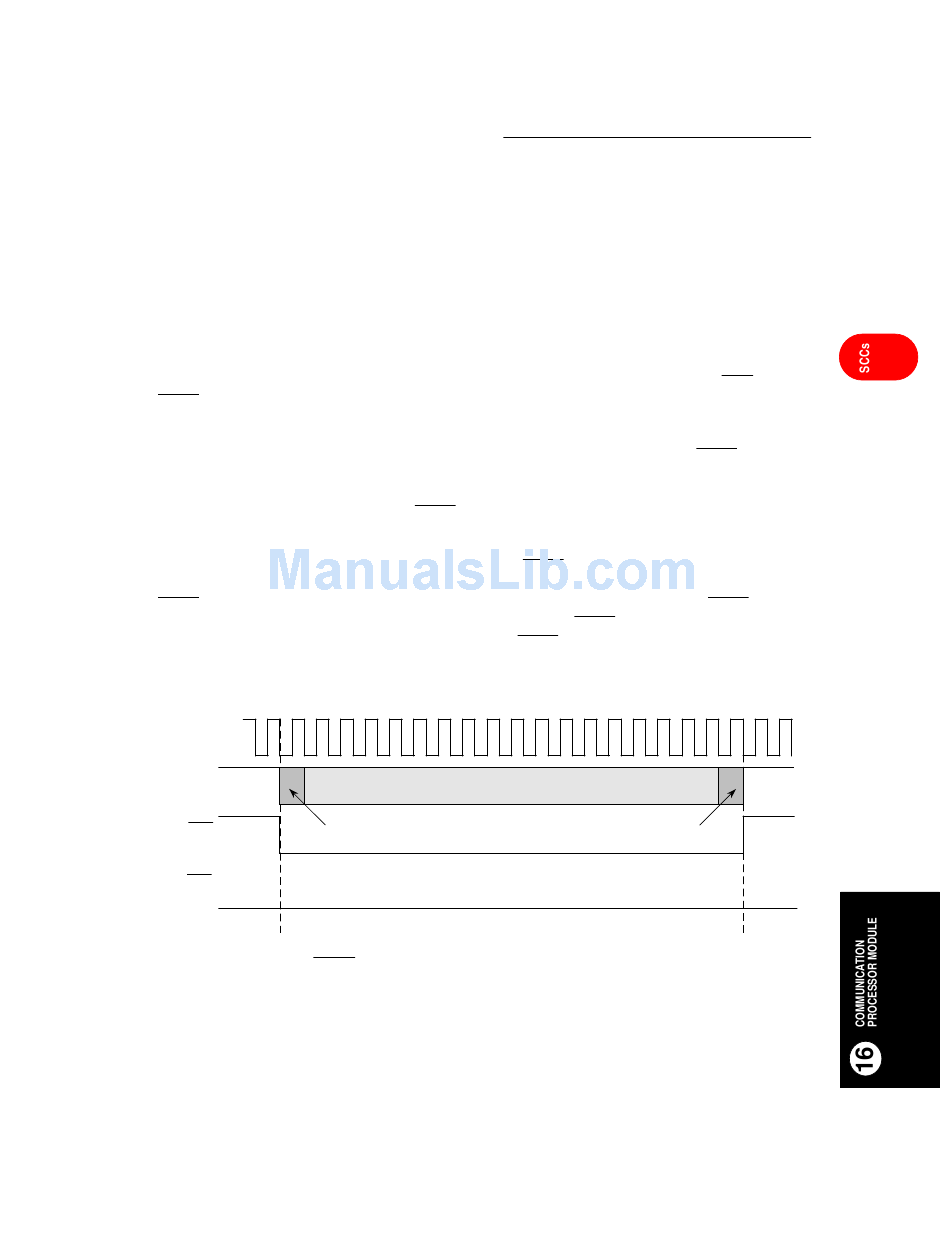

Figure 16-66 illustrates that the delay between the RTSx pin and data is 0 bit times,
regardless of how the CTSS bit is set in the GSMR_H. This operation assumes that the
CTSx pin is already asserted to a serial communication controller or that the CTSx pin is
reprogrammed to be a parallel I/O line, in which case, the CTSx signal to the serial
communication controller is always asserted. The RTSx pin is negated one clock after the
last bit in the frame.
TCLK
TXDx
(OUTPUT)
FIRST BIT OF FRAME DATA
RTSx
(OUTPUT)
CTSx
(INPUT)
NOTE: A frame includes opening and closing flags and syncs, if present in the protocol.
Figure 16-66. RTSx Output Delays Asserted for Synchronous Protocols
MOTOROLA MPC823e REFERENCE MANUAL
Communication Processor Module
LAST BIT OF FRAME DATA
