Equipment Menu; Create Shelf Configuration - Alcatel-Lucent 1850 TSS-320 User Provisioning Manual

Menu bar
............................................................................................................................................................................................................................................................

Equipment menu

Purpose
This menu allows the operator to manage the equipment configuration. The menu options
are:
Create Shelf - Allows to set a new shelf in the rack
•
Refresh Tree - Allows to update the page area tree
•
Create shelf
The Create a new Shelf tab displays the following as shown in

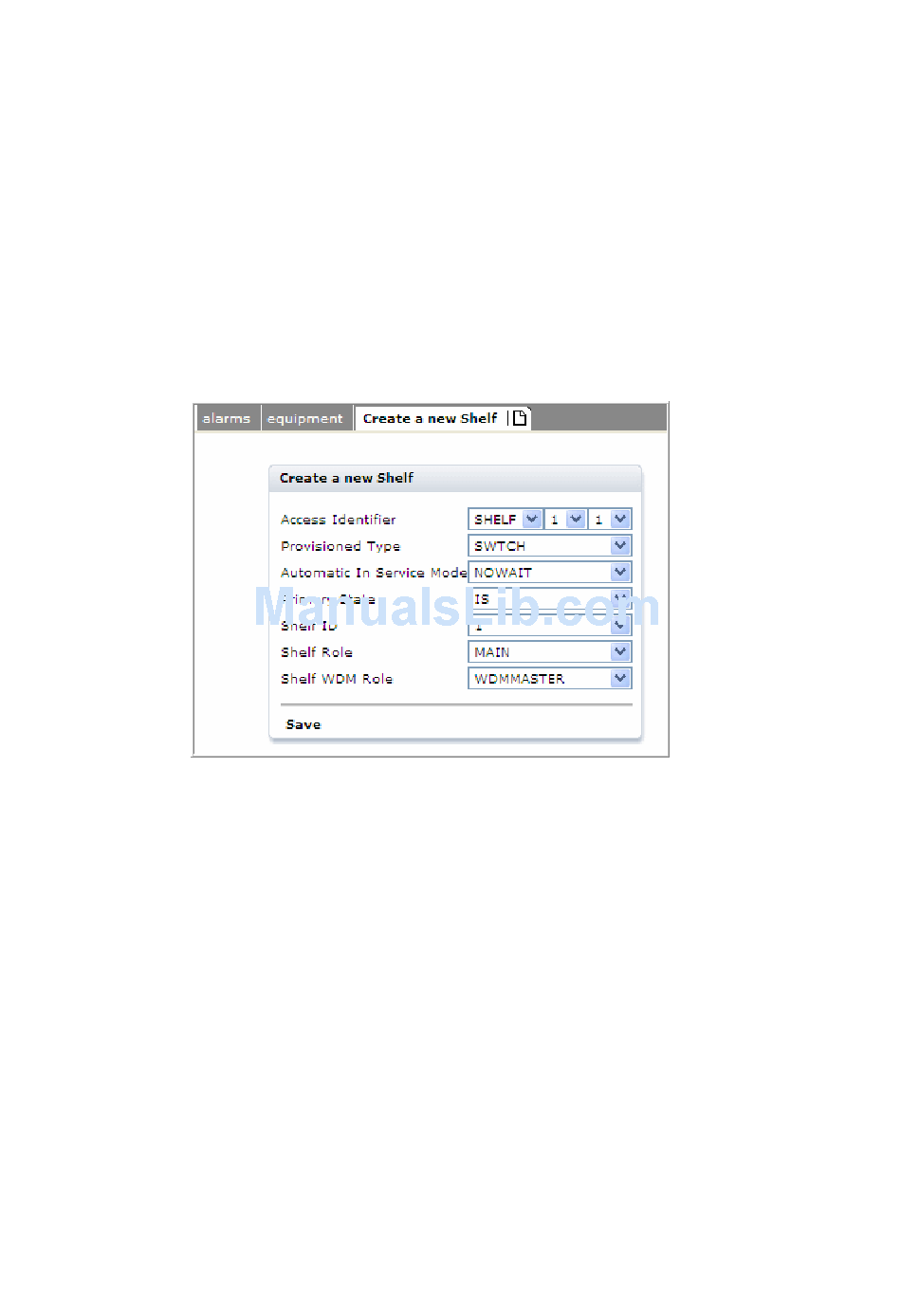

Figure 3-7 Create shelf configuration
The Create a new Shelf panel displays the following parameters:
Access Identifier - Select the label (with associated icon) and the number inside the
•
rack that is presented in the tree. The options are:
– SHELF - This is the Alcatel-Lucent 1850 TSS-320/160 subrack and is shown in
– OMD - This is the OM44 OR OMD88 subrack. The label is set at SHELF-x-x or
The second combo-box sets the first number presented in the tree; i.e. SHELF-1-x as for
the picture. The valid range is 1-7.
The third choice sets the second number presented in the tree; i.e. SHELF-1-1. The valid
range is 1-9.
Provisioned Type - This is the type of the shelf actually provisioned. The options are:
•
– SWTCH
– ROADM
– ILA
............................................................................................................................................................................................................................................................
3 - 16
the tree area
OMD-x-x respectively
Equipment menu
Figure 3-7.
8DG08136EAAA
Issue 3 July 2009
