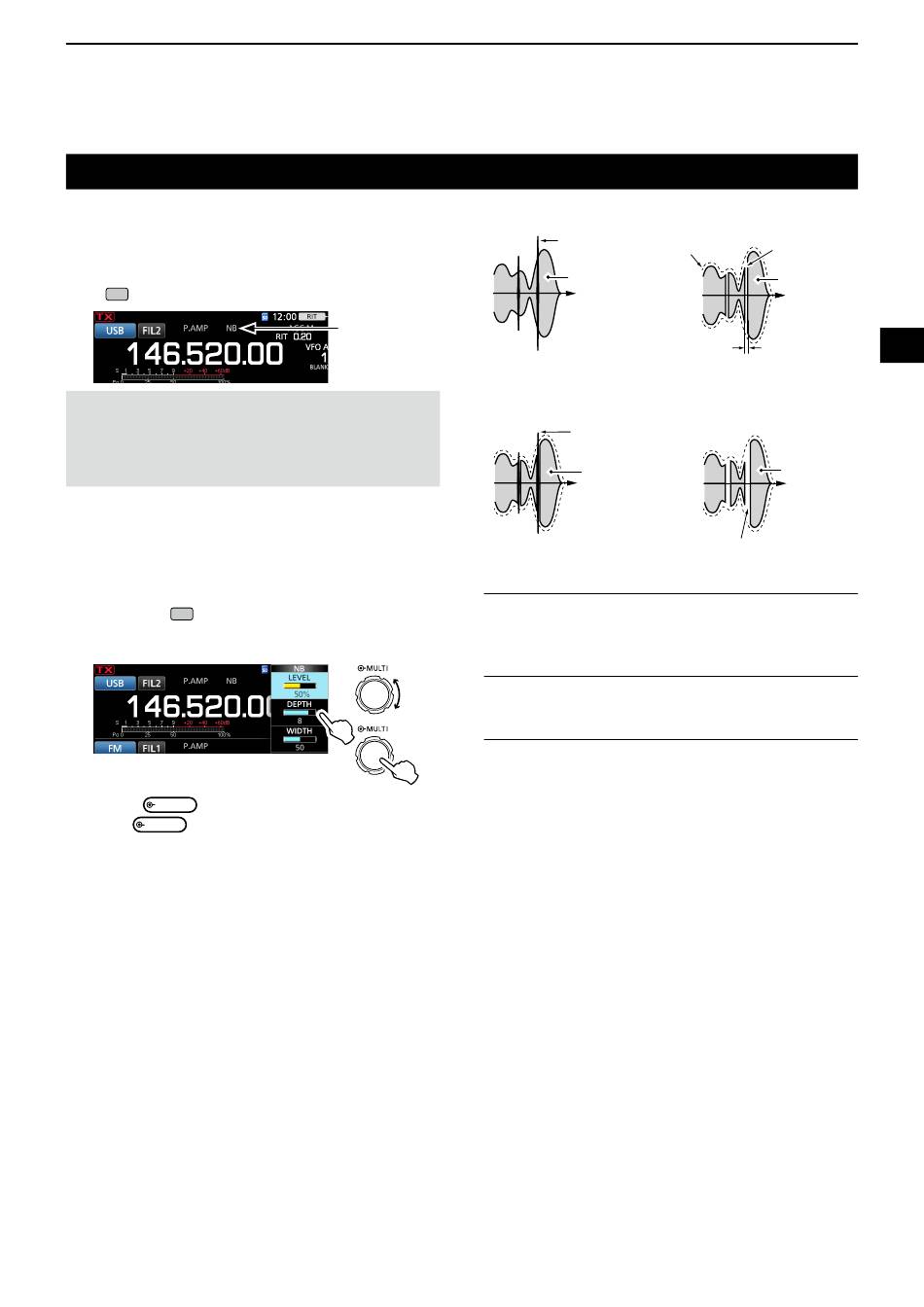

Noise Blanker
SSB, CW, RTTY and AM modes
The Noise blanker eliminates pulse-type noise such
as the noise from car ignitions.
Push
to turn the Noise Blanker ON or OFF.
NB
NOTE: When using the Noise Blanker, received signals
may be distorted if they are excessively strong, or the
noise is other than a pulse type. In that case, turn OFF the
Noise Blanker, or shallow the DEPTH on the NB menu.
See the description below for details.
D Adjusting the NB level and time
To deal with various type of noise, you can adjust the
attenuation level and blanking depth and width in the
NB menu.
1. Hold down
for 1 second.
NB
• Turns ON the Noise Blanker and opens the NB menu.
2. Touch the item to adjust. (Example: DEPTH)
3. Rotate
to adjust the item. (Example: 8)
MULTI
4. Push
to close the NB menu.
MULTI
NB is OFF
Displayed when
the Noise Blanker
is ON
(DEPTH is too short)
LEVEL
Adjust the level where the Noise Blanker activates
between 0 and 100%.
DEPTH
Adjust the noise attenuation level to between 1 and 10.
Rotate
WIDTH
Push
Adjust the blanking duration time to between 1 and 100.
4-5
RECEIVING AND TRANSMITTING
NB is ON (Effective)
Pulse-type
NB LEVEL
noise
Desired signal
NB is ON
(WIDTH is too wide)
Noise
still exists
Desired signal
Portion of desired signal is also removed
4
1
Noise removed
2
Desired signal
3
4
NB WIDTH
5
NB is ON
6
7
Desired signal
8
9
10
(Default: 50%)
11
12
(Default: 8)
13
(Default: 50)
14
15
16
17
18
19
20
21
