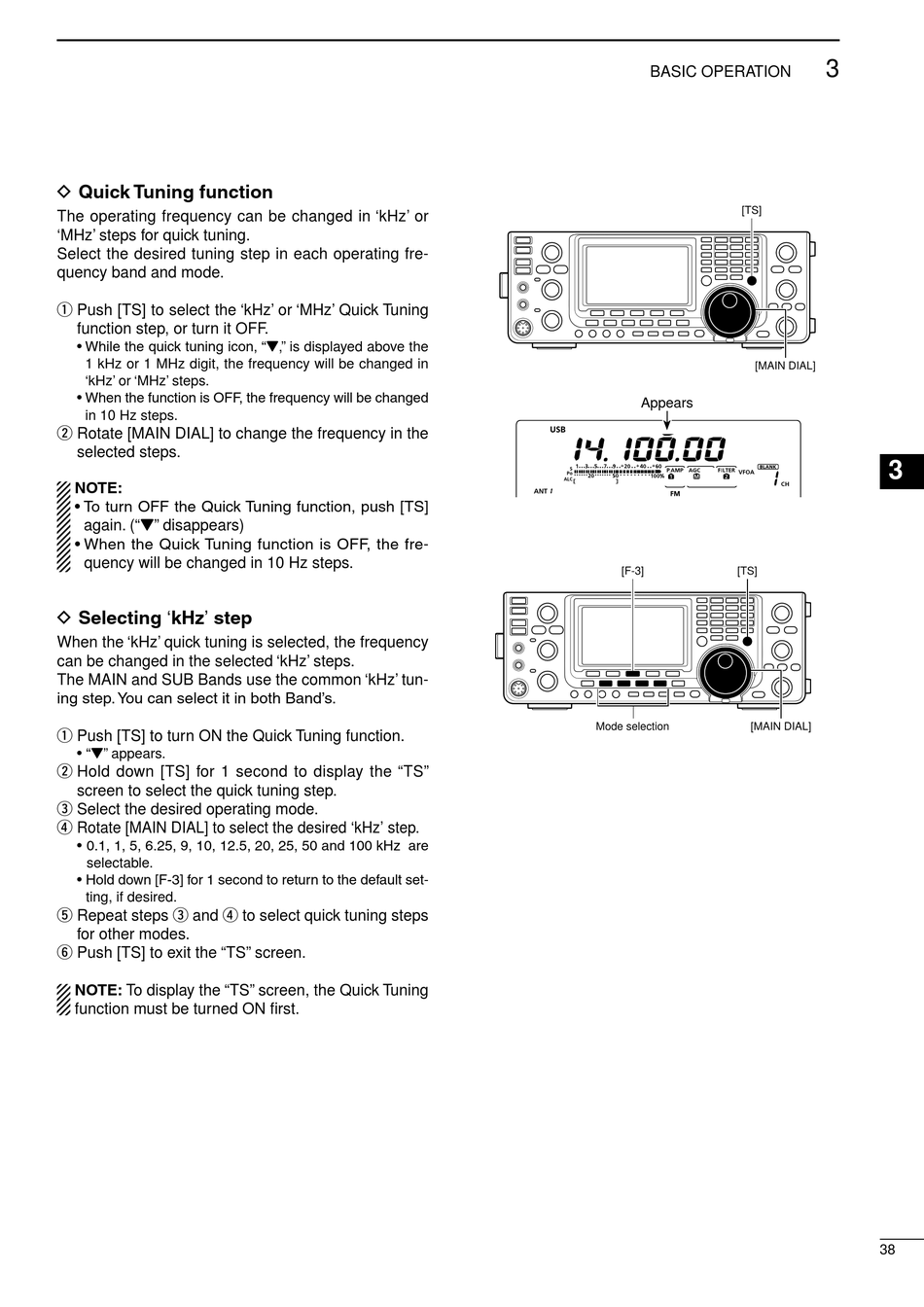

D Quick Tuning function

The operating frequency can be changed in 'kHz' or
'MHz' steps for quick tuning.
Select the desired tuning step in each operating fre-
quency band and mode.
q Push [TS] to select the 'kHz' or 'MHz' Quick Tuning
function step, or turn it OFF.
• While the quick tuning icon, "Z," is displayed above the
1 kHz or 1 MHz digit, the frequency will be changed in
'kHz' or 'MHz' steps.
• When the function is OFF, the frequency will be changed
in 10 Hz steps.
w Rotate [MAIN DIAL] to change the frequency in the
selected steps.
NOTE:
• To turn OFF the Quick Tuning function, push [TS]
again. ("Z" disappears)
• When the Quick Tuning function is OFF, the fre-
quency will be changed in 10 Hz steps.

D Selecting 'kHz' step

When the 'kHz' quick tuning is selected, the frequency
can be changed in the selected 'kHz' steps.
The MAIN and SUB Bands use the common 'kHz' tun-
ing step. You can select it in both Band's.
q Push [TS] to turn ON the Quick Tuning function.
• "Z" appears.
w Hold down [TS] for 1 second to display the "TS"
screen to select the quick tuning step.
e Select the desired operating mode.
r Rotate [MAIN DIAL] to select the desired 'kHz' step.
• 0.1, 1, 5, 6.25, 9, 10, 12.5, 20, 25, 50 and 100 kHz are
selectable.
• Hold down [F-3] for 1 second to return to the default set-
ting, if desired.
t Repeat steps e and r to select quick tuning steps
for other modes.
y Push [TS] to exit the "TS" screen.
NOTE: To display the "TS" screen, the Quick Tuning
function must be turned ON first.
BASIC OPERATION
Appears
TS
[F-3]
Mode selection
3
[TS]
[MAIN DIAL]
1
2
3
4
5
S S B
1 k H z
[TS]
6
7
8
9
[MAIN DIAL]
10
11
12
13
14
15
16
17
18
19
20
21
38
