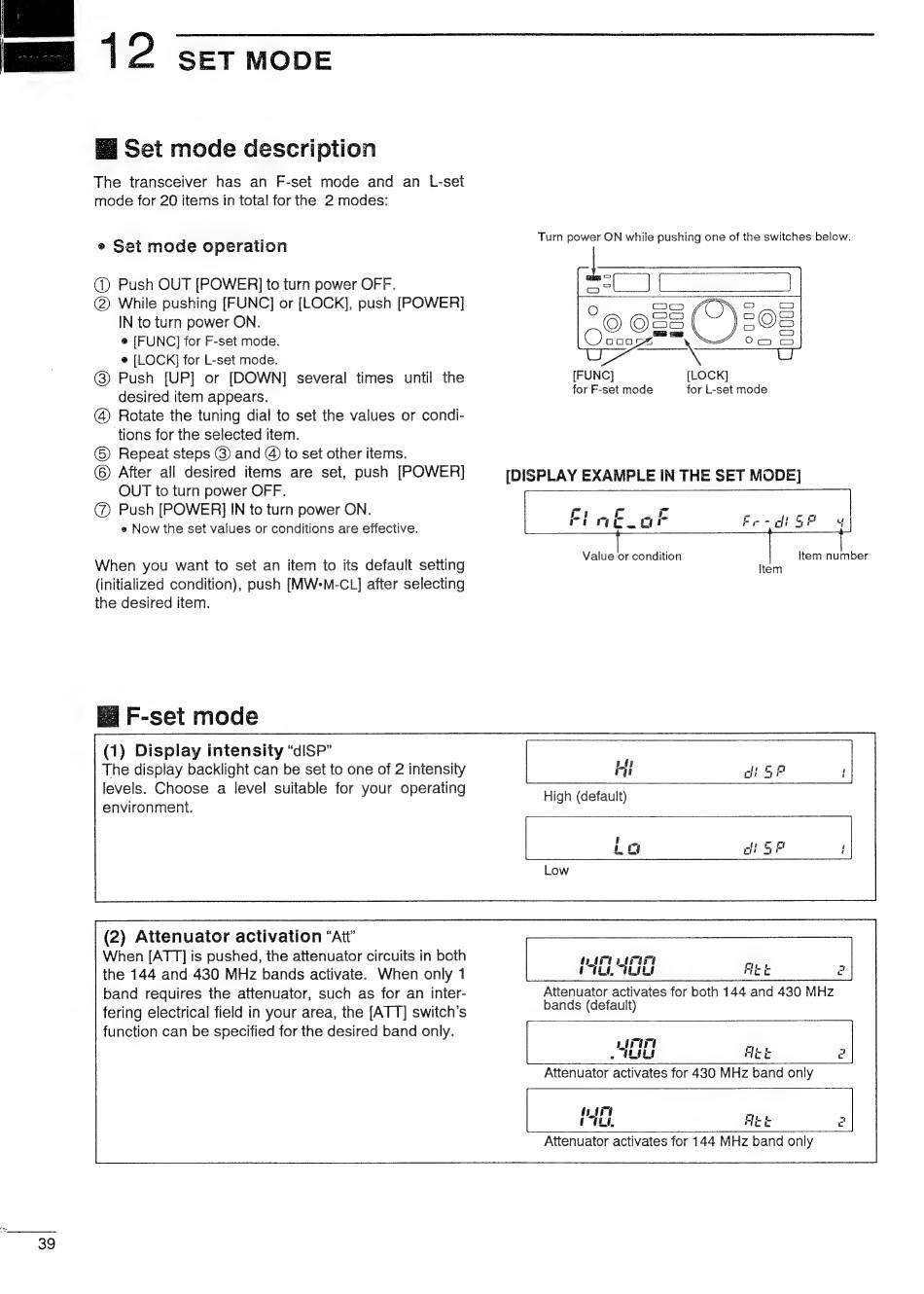

— 12 SET MODE
=i Set mode description
The transceiver has an F-set mode and an L-set
mode for 20 items in total for the 2 modes:
e Set mode operation
@) Push OUT [POWER] to turn power OFF.
(2) While pushing [FUNC] or [LOCK], push [POWER]
IN to turn power ON.
@ [FUNC] for F-set mode.
® [LOCK] for L-set mode.
@) Push [UP] or [DOWN] several times until the
desired item appears.
) Rotate the tuning dial to set the values or condi-
tions for the selected item.
(©) Repeat steps @) and @ to set other items.
©) After all desired items are set, push [POWER]
OUT to turn power OFF.
@ Push [POWER] IN to turn power ON.
» Now the set values or conditions are effective.
When you want to set an item to its default setting
(initialized condition), push [MW-M-CL] after selecting
the desired item.
(1) Display intensity "dISP"
The display backlight can be set to one of 2 intensity
levels. Choose a level suitable for your operating
environment.
(2) Attenuator activation "Att"
When [ATT] is pushed, the attenuator circuits in both
the 144 and 430 MHz bands activate. When only 1
band requires the attenuator, such as for an inter-
fering electrical field in your area, the [ATT] switch's
function can be specified for the desired band only.
Turn power ON while pushing one of the switches below.
[FUNC] [LOCK]
for F-set mode for L-set mode
[DISPLAY EXAMPLE IN THE SET MODE]
Item number Value or condition
Item
Attenuator
bands (detaul
ris ates for both 144 and 430 MHz
rir
. GLSUs
Attenuator activates for 430 MH
Attenuator activates for 144 MHz band only
