8

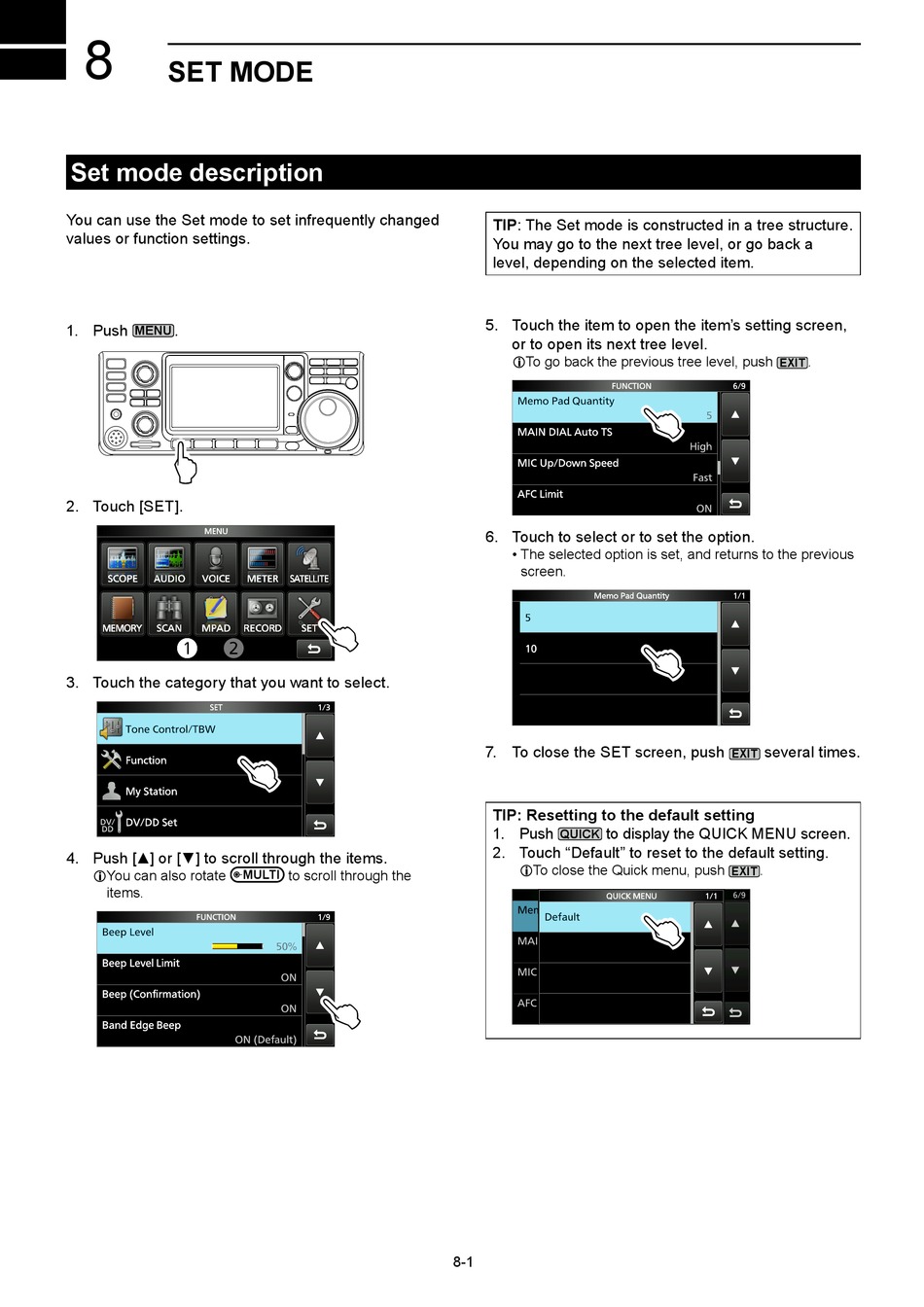

SET MODE
Set mode description
You can use the Set mode to set infrequently changed
values or function settings.
1. Push
.
MENU
2. Touch [SET].
3. Touch the category that you want to select.
4. Push [▲] or [▼] to scroll through the items.
L You can also rotate
items.
MULTI
to scroll through the
TIP: The Set mode is constructed in a tree structure.
You may go to the next tree level, or go back a
level, depending on the selected item.
5. Touch the item to open the item's setting screen,
or to open its next tree level.
LTo go back the previous tree level, push
6. Touch to select or to set the option.
• The selected option is set, and returns to the previous
screen.
7. To close the SET screen, push
TIP: Resetting to the default setting
1. Push
to display the QUICK MENU screen.
QUICK
2. Touch "Default" to reset to the default setting.
LTo close the Quick menu, push
8-1
.
EXIT
several times.
EXIT
.
EXIT
