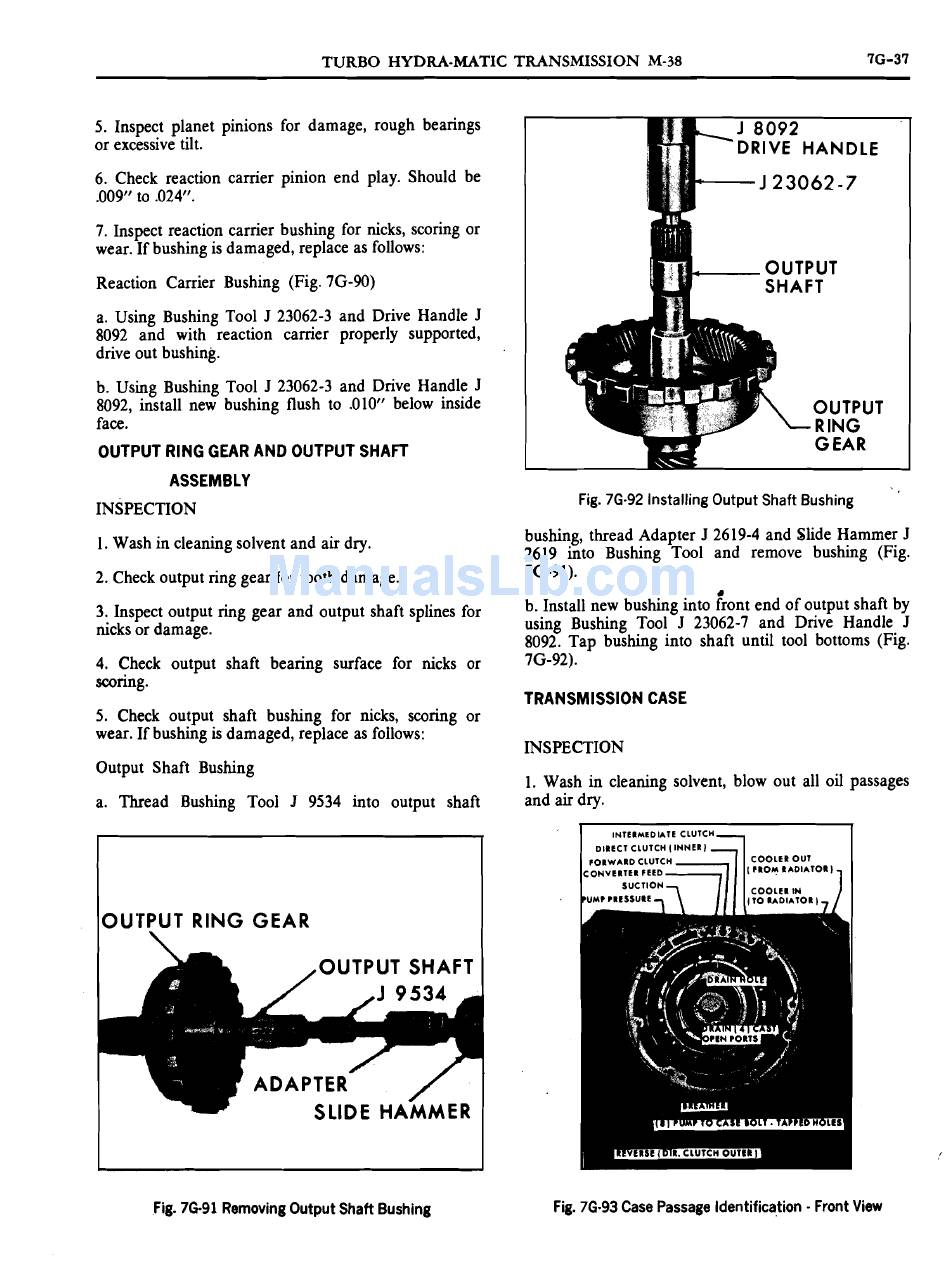

TURBO HYDRA-MATIC TRANSMISSION M-38
7G-37
5. Inspect planet pinions for damage, rough bearings
or excessive tilt.
6. Check reaction carrier pinion end play. Should be
.009" to .024".
7. Inspect reaction carrier bushing for nicks, scoring or
wear. If bushing is damaged, replace as follows:
Reaction Carrier Bushing (Fig. 7G-90)
a. Using Bushing Tool J 23062-3 and Drive Handle J
8092 and with reaction carrier properly supported,
drive out bushing.
b. Using Bushing Tool J 23062-3 and Drive Handle J
8092, install new bushing flush to .010" below inside
face.
OUTPUT RING GEAR AND OUTPUT SHAFT
ASSEMBLY
INSPECTION
1. Wash in cleaning solvent and air dry.
2. Check output ring gear for tooth damage.
3. Inspect output ring gear and output shaft splines for
nicks or damage.
4. Check output shaft bearing surface for nicks or
scoring.
5. Check output shaft bushing for nicks, scoring or
wear. If bushing is damaged, replace as follows:
Output Shaft Bushing
a. Thread Bushing Tool J 9534 into output shaft
Fig. 7G-92 Installing Output Shaft Bushing
bushing, thread Adapter J 2619-4 and Slide Hammer J
2619 into Bushing Tool and remove bushing (Fig.
7G-91).
4
b. Install new bushing into front end of output shaft by
using Bushing Tool J 23062-7 and Drive Handle J
8092. Tap bushing into shaft until tool bottoms (Fig.
76-92).
TRANSMISSION CASE
INSPECTION
1. Wash in cleaning solvent, blow out all oil passages
and air dry.
Fig. 76.91 Removing Output Shaft Bushing
Fig. 76-93 Case Passage Identification
-
Front View
