Oil Filter By-Pass Valve; Accessory Drive Housing-Exploded View; Oil Pump Gears; Remove And Replace - Pontiac Grand Prix Service Manual

SIX CYLINDER ENGINE
RETAINER, OIL FILTER SCREW, OIL FILTER SPRING, OIL FILTER
BY-PASS VALVE
PIN, DISTRIBUTOR
OIL ANDFUEL
PUMP GEAR AND
ECCENTRIC
GEAR AND ECCENTRIC
7
BEARING, DISTRIBUTOR
GASKET, OIL PRESSURE
REGULATORVALVECAP
SHAFT AND SPROCKET
BOLT. OIL PUMP
COVER TO HOUSING

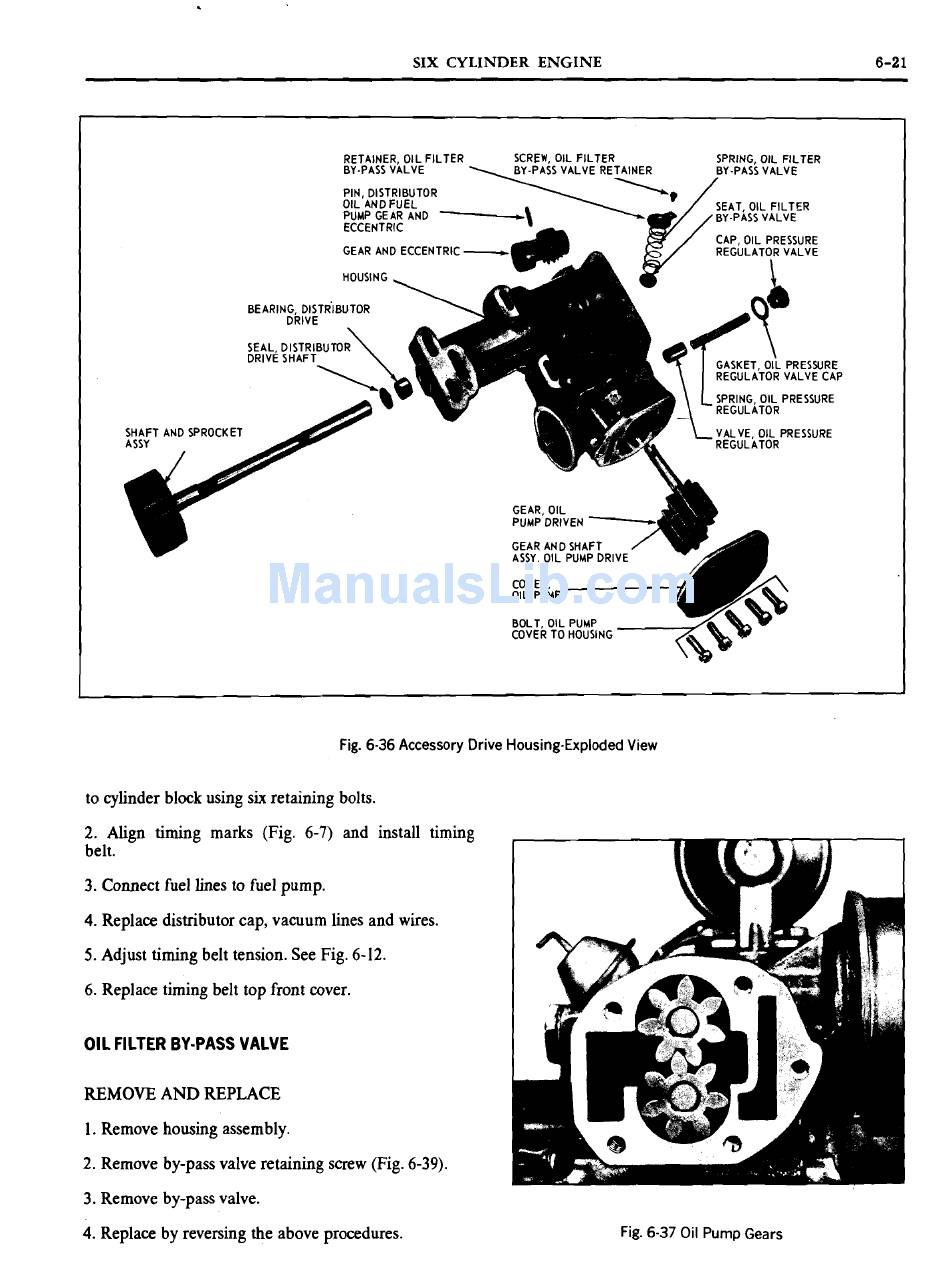

Fig. 6-36 Accessory Drive Housing-Exploded View
to cylinder block using six retaining bolts.
2. Align timing marks (Fig. 6-7) and install timing
belt.
3. Connect fuel lines to fuel pump.
4. Replace distributor cap, vacuum lines and wires.
5. Adjust timing belt tension. See Fig. 6-12.
6. Replace timing belt top front cover.
OIL FILTER BY-PASS VALVE
REMOVE
AND REPLACE
1. Remove housing assembly.
2. Remove by-pass valve retaining screw (Fig. 6-39).
3. Remove by-pass valve.
4. Replace by reversing the above procedures. Fig. 6-37 Oil Pump Gears
