CDM-625 Advanced Satellite Modem
Appendix F
ODU: FSK-control  BUC  Advanced-FSK  LPOD

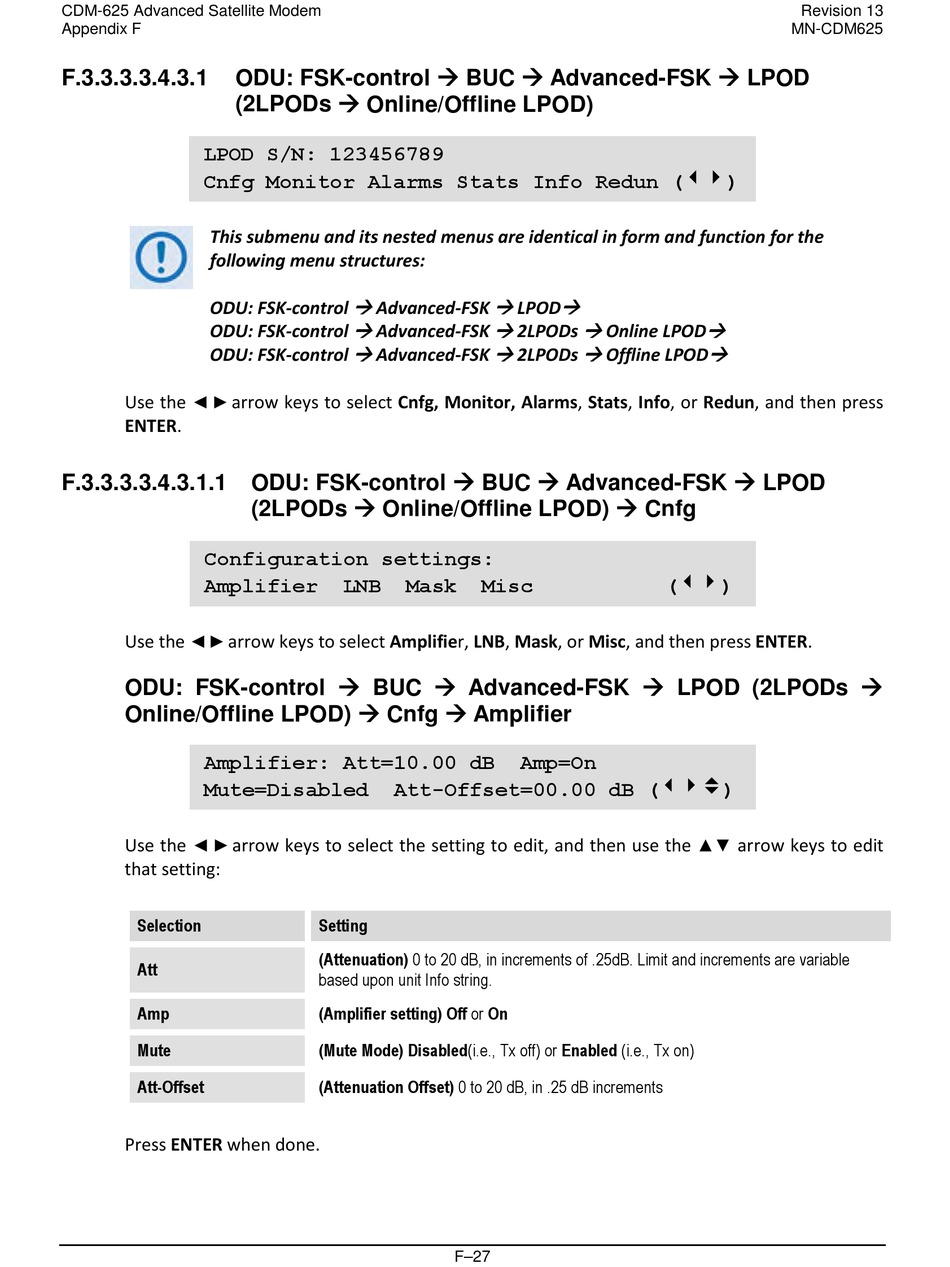

F.3.3.3.3.4.3.1
(2LPODs  Online/Offline LPOD)
LPOD S/N: 123456789
Cnfg Monitor Alarms Stats Info Redun ()
This submenu and its nested menus are identical in form and function for the
following menu structures:
ODU: FSK-control
ODU: FSK-control
ODU: FSK-control
Use the ◄ ► arrow keys to select Cnfg, Monitor, Alarms, Stats, Info, or Redun, and then press
ENTER.
F.3.3.3.3.4.3.1.1 ODU: FSK-control  BUC  Advanced-FSK  LPOD

Configuration settings:

Amplifier
◄ ►
Use the arrow keys to select Amplifier, LNB, Mask, or Misc, and then press ENTER.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD)  Cnfg  Amplifier
Amplifier: Att=10.00 dB
Mute=Disabled
Use the ◄ ► arrow keys to select the setting to edit, and then use the
that setting:
Selection
Att
Amp
Mute
Att-Offset
Press ENTER when done.
Advanced-FSK

 Advanced-FSK
 Advanced-FSK
(2LPODs  Online/Offline LPOD)  Cnfg
LNB Mask
Att-Offset=00.00 dB ()
Setting
(Attenuation) 0 to 20 dB, in increments of .25dB. Limit and increments are variable
based upon unit Info string.
(Amplifier setting) Off or On
(Mute Mode) Disabled(i.e., Tx off) or Enabled (i.e., Tx on)
(Attenuation Offset) 0 to 20 dB, in .25 dB increments
LPOD
 
 2LPODs  Online LPOD
 2LPODs  Offline LPOD
Misc
Amp=On
F–27
Revision 13
MN-CDM625


()
arrow keys to edit
▲▼
