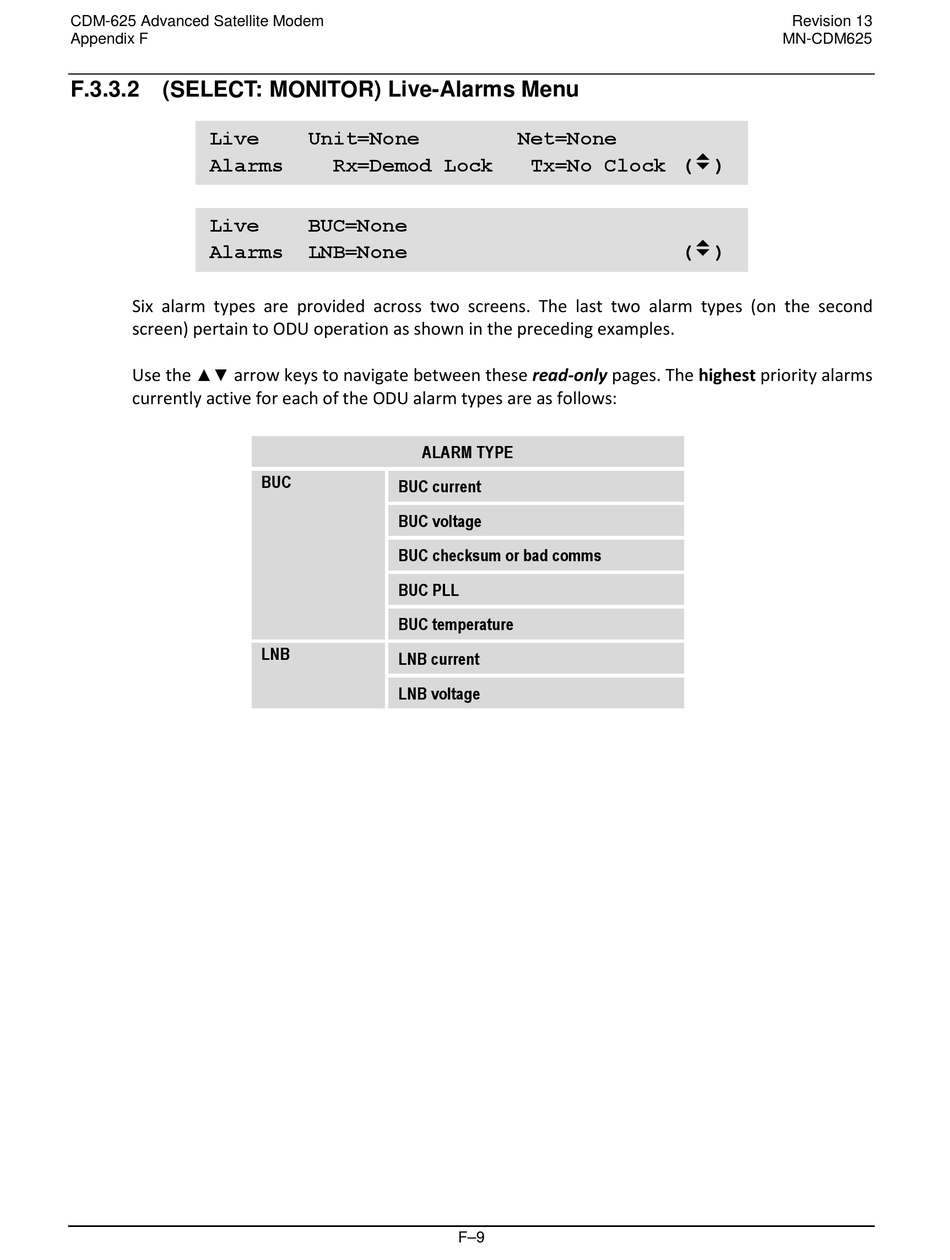

F.3.3.2 (SELECT: MONITOR) Live-Alarms Menu
Live
Alarms
Live
Alarms
Six alarm types are provided across two screens. The last two alarm types (on the second
screen) pertain to ODU operation as shown in the preceding examples.
Use the arrow keys to navigate between these read-only pages. The highest priority alarms
▲▼
currently active for each of the ODU alarm types are as follows:
Unit=None
Rx=Demod Lock
BUC=None
LNB=None
ALARM TYPE
BUC
BUC current
BUC voltage
BUC checksum or bad comms
BUC PLL
BUC temperature
LNB
LNB current
LNB voltage
Net=None
Tx=No Clock ()
