CDM-625 Advanced Satellite Modem
Front Panel Operation

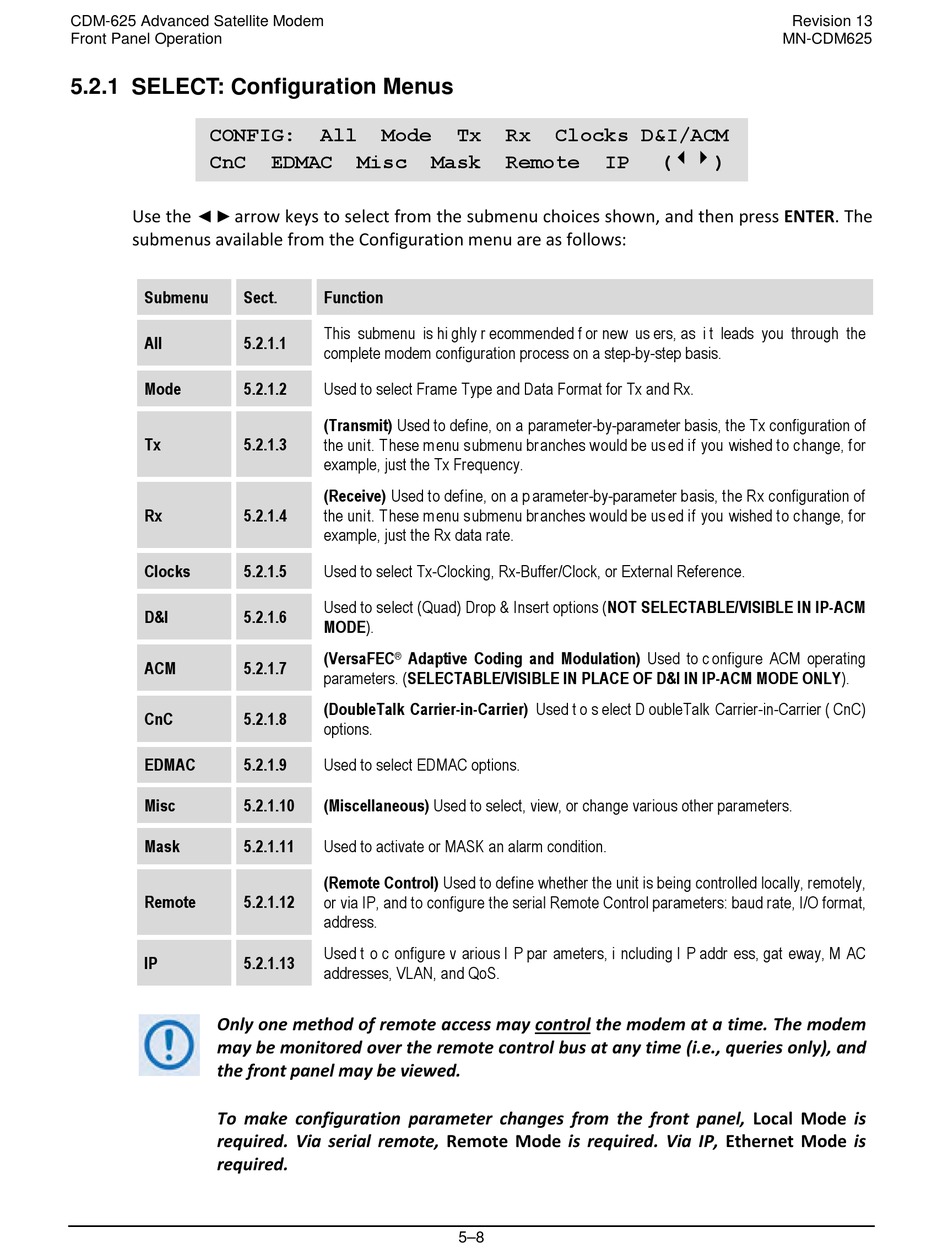

5.2.1 SELECT: Configuration Menus

CONFIG:
CnC
Use the ◄ ► arrow keys to select from the submenu choices shown, and then press ENTER. The
submenus available from the Configuration menu are as follows:
Submenu Sect.
All 5.2.1.1
Mode 5.2.1.2
Tx 5.2.1.3
Rx 5.2.1.4
Clocks 5.2.1.5
D&I 5.2.1.6
ACM 5.2.1.7
CnC 5.2.1.8
EDMAC 5.2.1.9
Misc 5.2.1.10
Mask 5.2.1.11
Remote 5.2.1.12
IP 5.2.1.13
Only one method of remote access may control the modem at a time. The modem
may be monitored over the remote control bus at any time (i.e., queries only), and
the front panel may be viewed.
To make configuration parameter changes from the front panel, Local Mode is
required. Via serial remote, Remote Mode is required. Via IP, Ethernet Mode is
required.
All Mode
EDMAC Misc Mask
Function
This submenu is hi ghly r ecommended f or new us ers, as i t leads you through the
complete modem configuration process on a step-by-step basis.
Used to select Frame Type and Data Format for Tx and Rx.
(Transmit) Used to define, on a parameter-by-parameter basis, the Tx configuration of
the unit. These menu submenu branches would be us ed if you wished to change, for
example, just the Tx Frequency.
(Receive) Used to define, on a p arameter-by-parameter basis, the Rx configuration of
the unit. These menu submenu branches would be us ed if you wished to change, for
example, just the Rx data rate.
Used to select Tx-Clocking, Rx-Buffer/Clock, or External Reference.
Used to select (Quad) Drop & Insert options (NOT SELECTABLE/VISIBLE IN IP-ACM
MODE).
(VersaFEC Adaptive Coding and Modulation) Used to c onfigure ACM operating
®
parameters. (SELECTABLE/VISIBLE IN PLACE OF D&I IN IP-ACM MODE ONLY).
(DoubleTalk Carrier-in-Carrier) Used t o s elect D oubleTalk Carrier-in-Carrier ( CnC)
options.
Used to select EDMAC options.
(Miscellaneous) Used to select, view, or change various other parameters.
Used to activate or MASK an alarm condition.
(Remote Control) Used to define whether the unit is being controlled locally, remotely,
or via IP, and to configure the serial Remote Control parameters: baud rate, I/O format,
address.
Used t o c onfigure v arious I P par ameters, i ncluding I P addr ess, gat eway, M AC
addresses, VLAN, and QoS.
Tx Rx Clocks D&I/ACM
Remote IP
