CDM-625 Advanced Satellite Modem
Appendix F

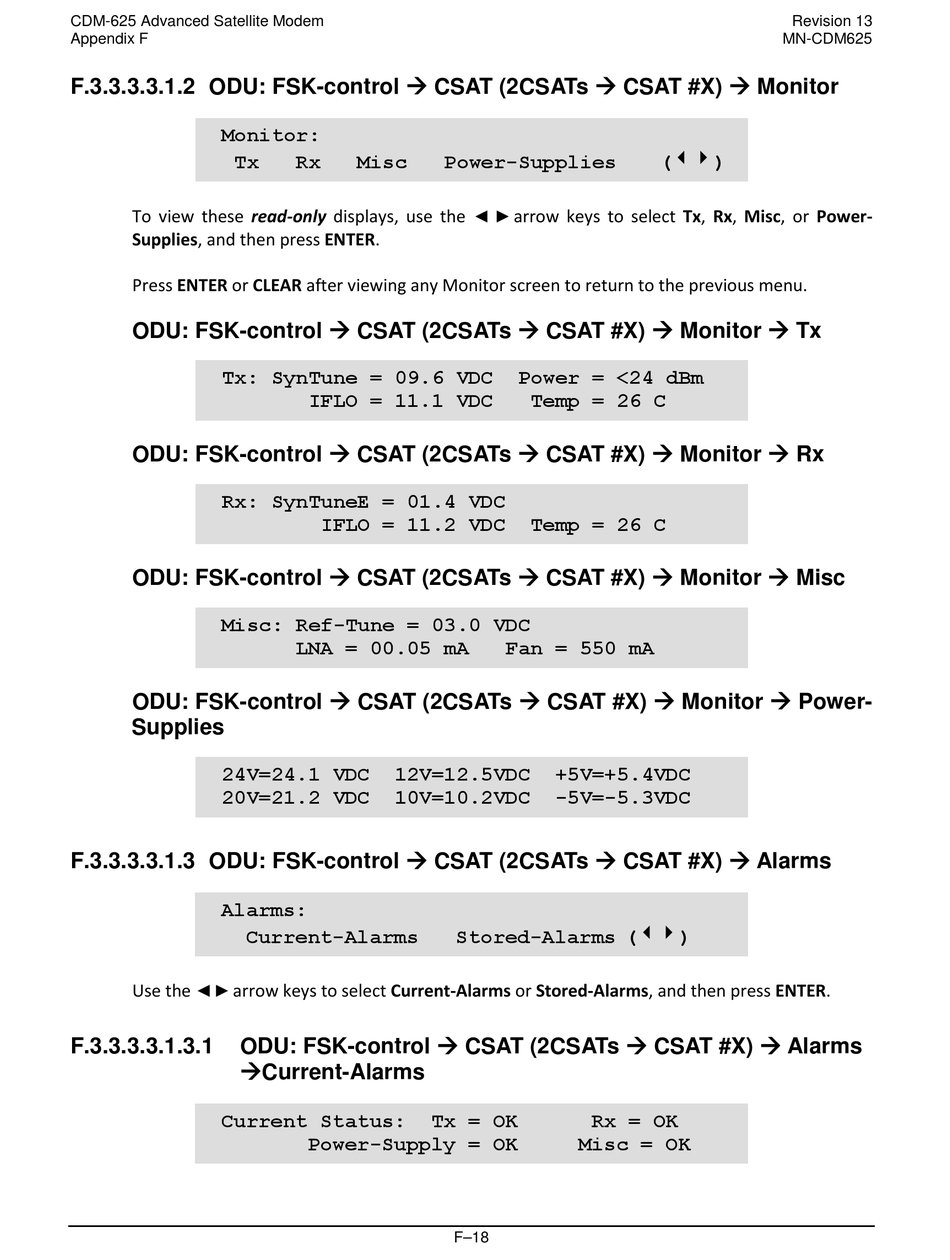

F.3.3.3.3.1.2 ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Monitor
Monitor:
Tx
To view these read-only displays, use the
Supplies, and then press ENTER.
Press ENTER or CLEAR after viewing any Monitor screen to return to the previous menu.
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Monitor  Tx
Tx: SynTune = 09.6 VDC
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Monitor  Rx
Rx: SynTuneE = 01.4 VDC
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Monitor  Misc
Misc: Ref-Tune = 03.0 VDC
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Monitor  Power-
Supplies
24V=24.1 VDC
20V=21.2 VDC
F.3.3.3.3.1.3 ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Alarms
Alarms:
Current-Alarms
Use the ◄ ► arrow keys to select Current-Alarms or Stored-Alarms, and then press ENTER.
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Alarms
F.3.3.3.3.1.3.1
Current-Alarms
Current Status:
Rx Misc Power-Supplies
◄ ►
IFLO = 11.1 VDC
IFLO = 11.2 VDC
LNA = 00.05 mA
12V=12.5VDC
10V=10.2VDC
Stored-Alarms ()
Tx = OK
Power-Supply = OK
F–18
()
arrow keys to select Tx, Rx, Misc, or Power-
Power = <24 dBm
Temp = 26 C
Temp = 26 C
Fan = 550 mA
+5V=+5.4VDC
-5V=-5.3VDC
Rx = OK
Misc = OK
Revision 13
MN-CDM625
