E.3.4 Home > Network Submenu

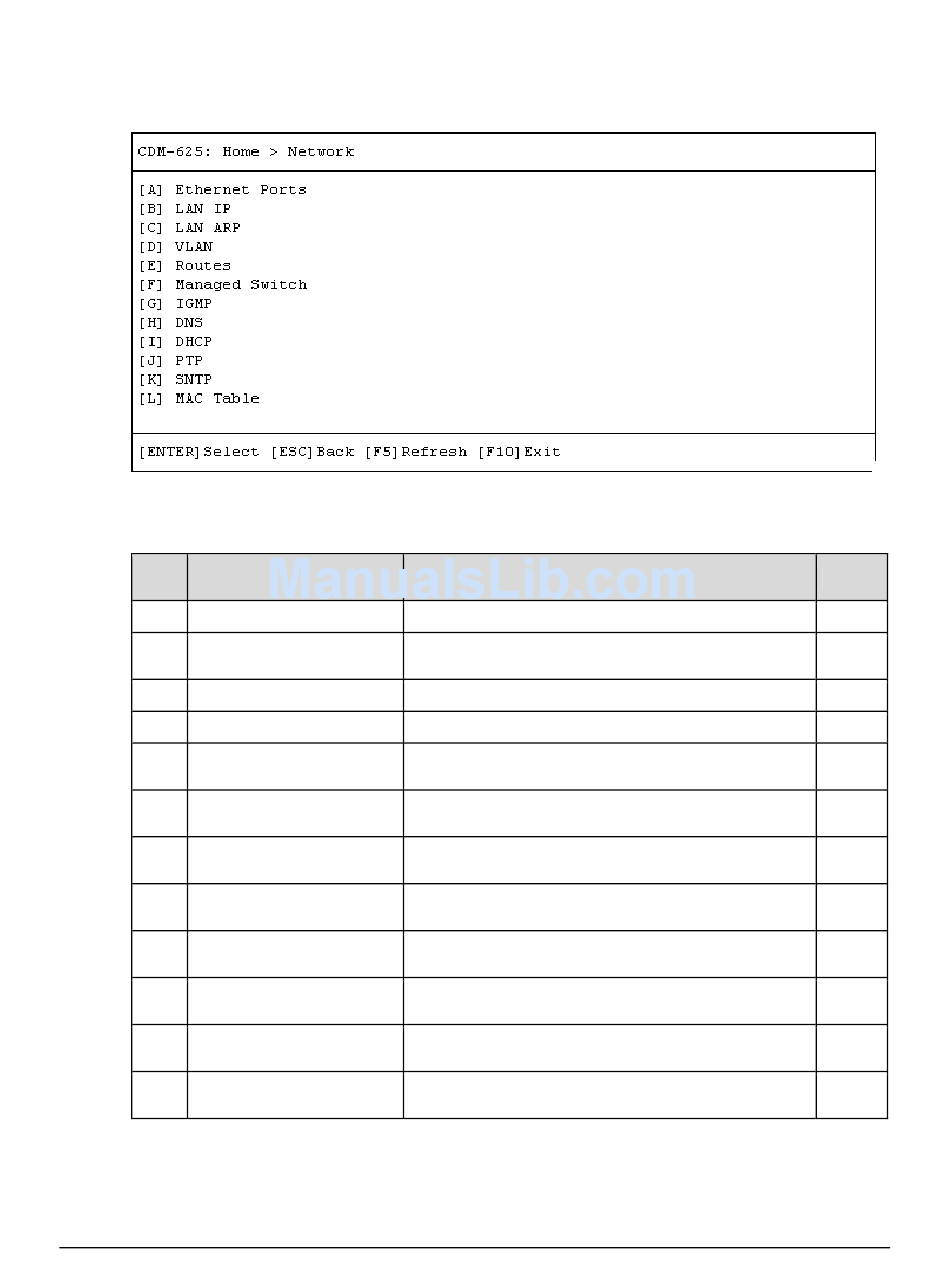

Open the Network submenu from the Home menu. This submenu contains the following
options:
Hot
Configuration Page
Key
A Ethernet Ports
B LAN IP
C
LAN ARP
D VLAN
E
Routes
F
Managed Switch
G
IGMP
H
DNS
I
DHCP
J
PTP
K SNTP
L MAC Table
Press a hot key to access a configuration page. See the specified appendix section for further
configuration options. Otherwise, press [ESC] to return to the Home menu.
Function
Configure Ethernet Ports 1 through 4
Configure Ethernet Framing, IP addresses, QoS, Working
Mode, Packet Processor parameters
Configure LAN ARP operation and table entries
Configure VLAN operation and table entries
Enter static routes into the IP Packet Processor to route IP
traffic over the satellite or to another device on the local LAN
Configure Header and Payload Compression and Encryption
operations
Configure use of IGMP (Internet Group Management Protocol)
with configured multicast routes
Configure use of DNS (Domain Name System) caching
function
Configure use of DHCP (Dynamic Host Configuration
Protocol) Relay function
Configure use and review status of PTP (Precision Time
Protocol) feature
Configure use of SNTP (Simple Network Time Protocol)
feature, set RTC (Real Time Clock) time and date
View the MAC Addresses that the modem has discovered on
one or more of its Ethernet switch ports
E–40
Revision 13
MN-CDM625
Sect.
E.3.4.1
E.3.4.2
E.3.4.3
E.3.4.4
E.3.4.5
E.3.4.6
E.3.4.7
E.3.4.8
E.3.4.9
E.3.4.10
E.3.4.11
E.3.4.12
