3.2.2.2.3.2 CA-0000164 Adapter Cable

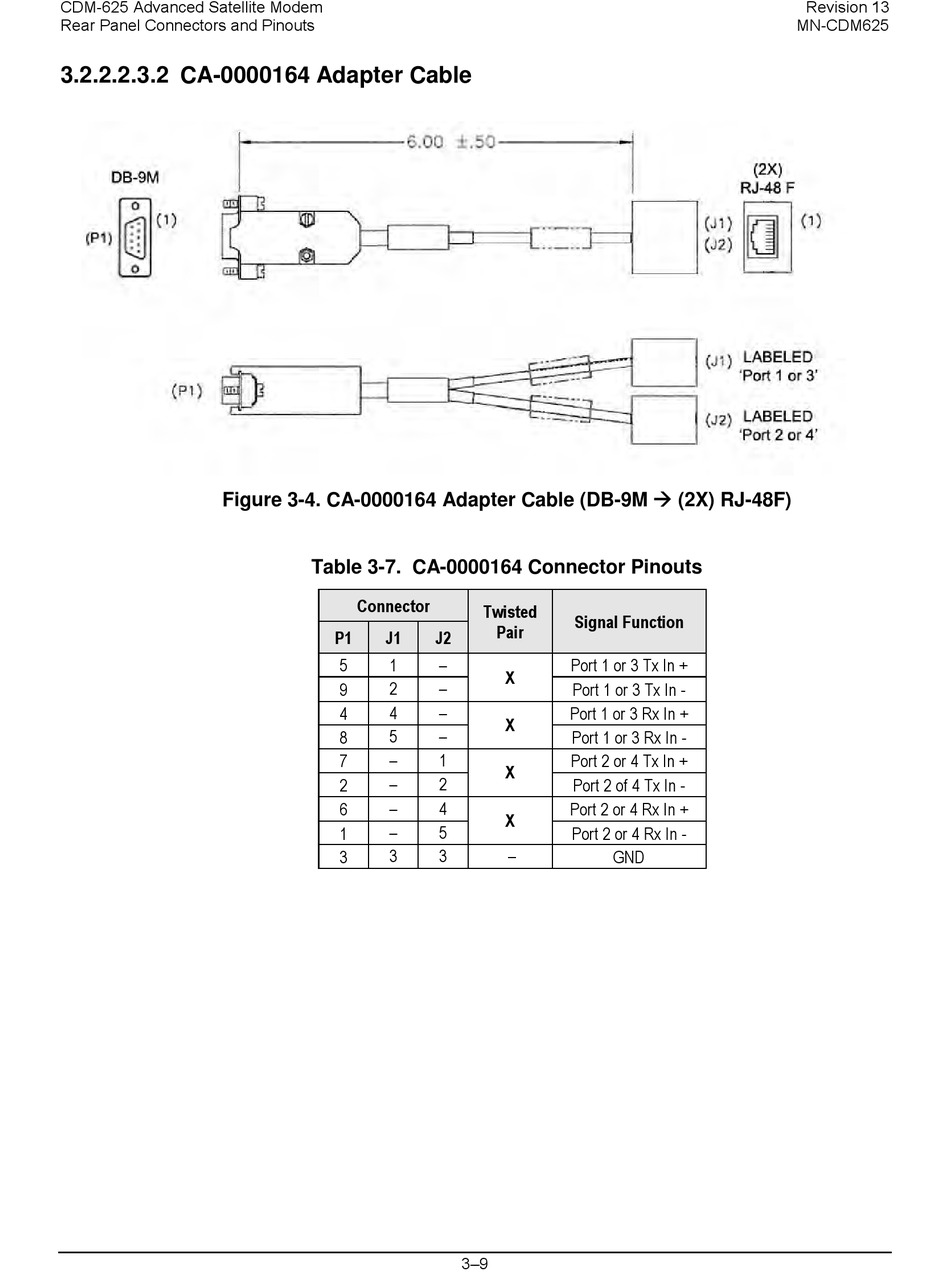

Figure 3-4. CA-0000164 Adapter Cable (DB-9M  (2X) RJ-48F)

Table 3-7. CA-0000164 Connector Pinouts

Connector
Twisted
P1 J1 J2
5 1 –
2 –
9
4 –
4
5 –
8
7 – 1
– 2
2
6 – 4
– 5
1
3 3
3
3–9
Signal Function
Pair
Port 1 or 3 Tx In +
X
Port 1 or 3 Tx In -
Port 1 or 3 Rx In +
X
Port 1 or 3 Rx In -
Port 2 or 4 Tx In +
X
Port 2 of 4 Tx In -
Port 2 or 4 Rx In +
X
Port 2 or 4 Rx In -
–
GND
