CDM-625 Advanced Satellite Modem
Rear Panel Connectors and Pinouts
3.3

CDM-625 Ground and Power Connections

3.3.1
Chassis Ground Interface
PROPER GROUNDING PROTECTION IS REQUIRED. The equipment must be connected
to the protective earth connection at all times. It is therefore imperative that the unit
is properly grounded, using the ground stud provided on the unit rear panel, during
installation, configuration, and operation.
Use the #10-32 stud, located adjacent to the power interface, for connecting a
common chassis ground among equipment.
The AC power interface provides the safety ground.

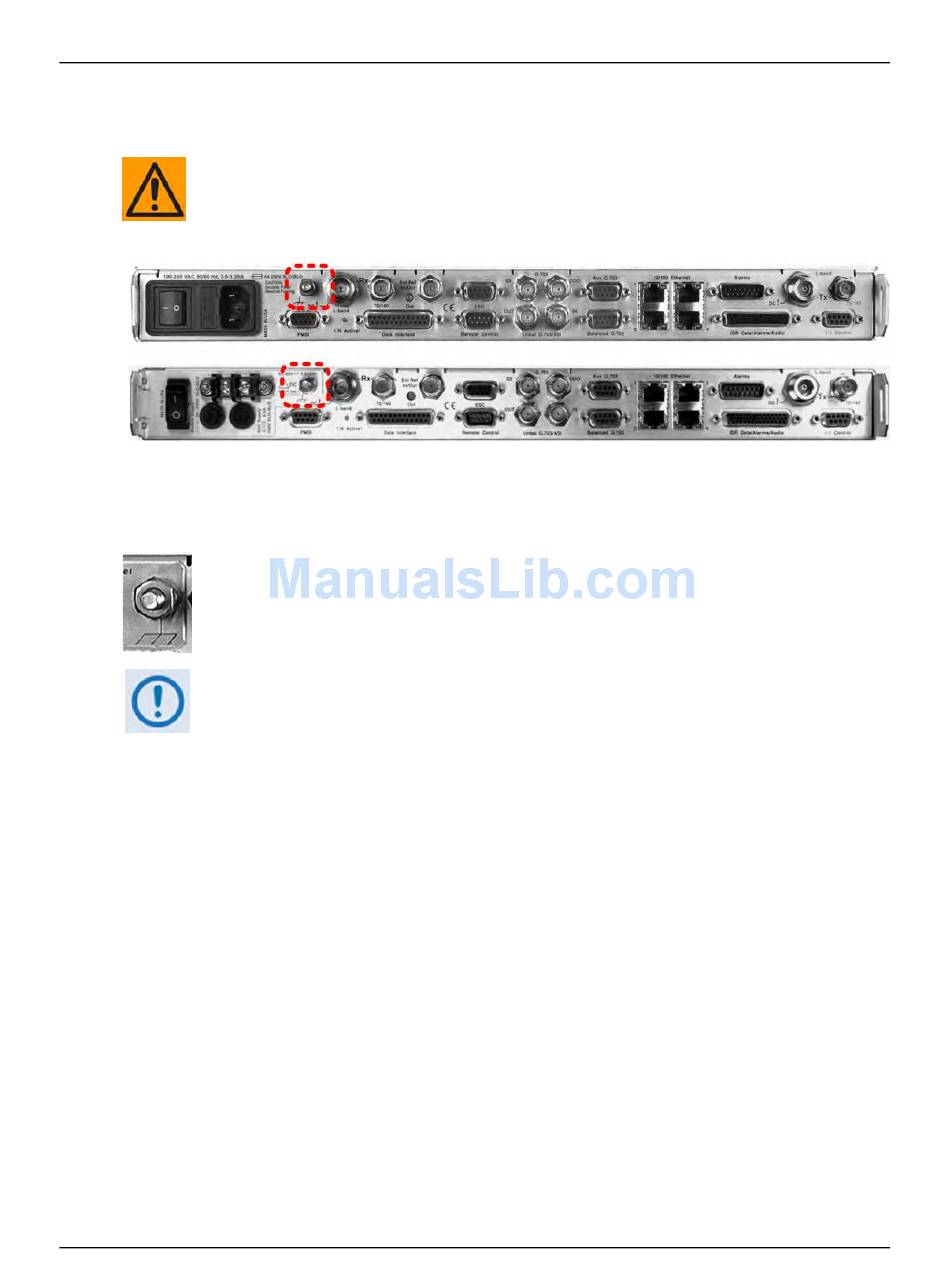

Figure 3-6. CDM-625 Chassis Ground Interface

(T op) S tandard AC C has s is (C E F D P /N P L /12587-1)
(B ottom) Optional 48V DC C has s is (C E F D P /N P L /12587-2)
3–15
Revision 13
MN-CDM625
