CDM-625 Advanced Satellite Modem
Appendix F
F.3.3

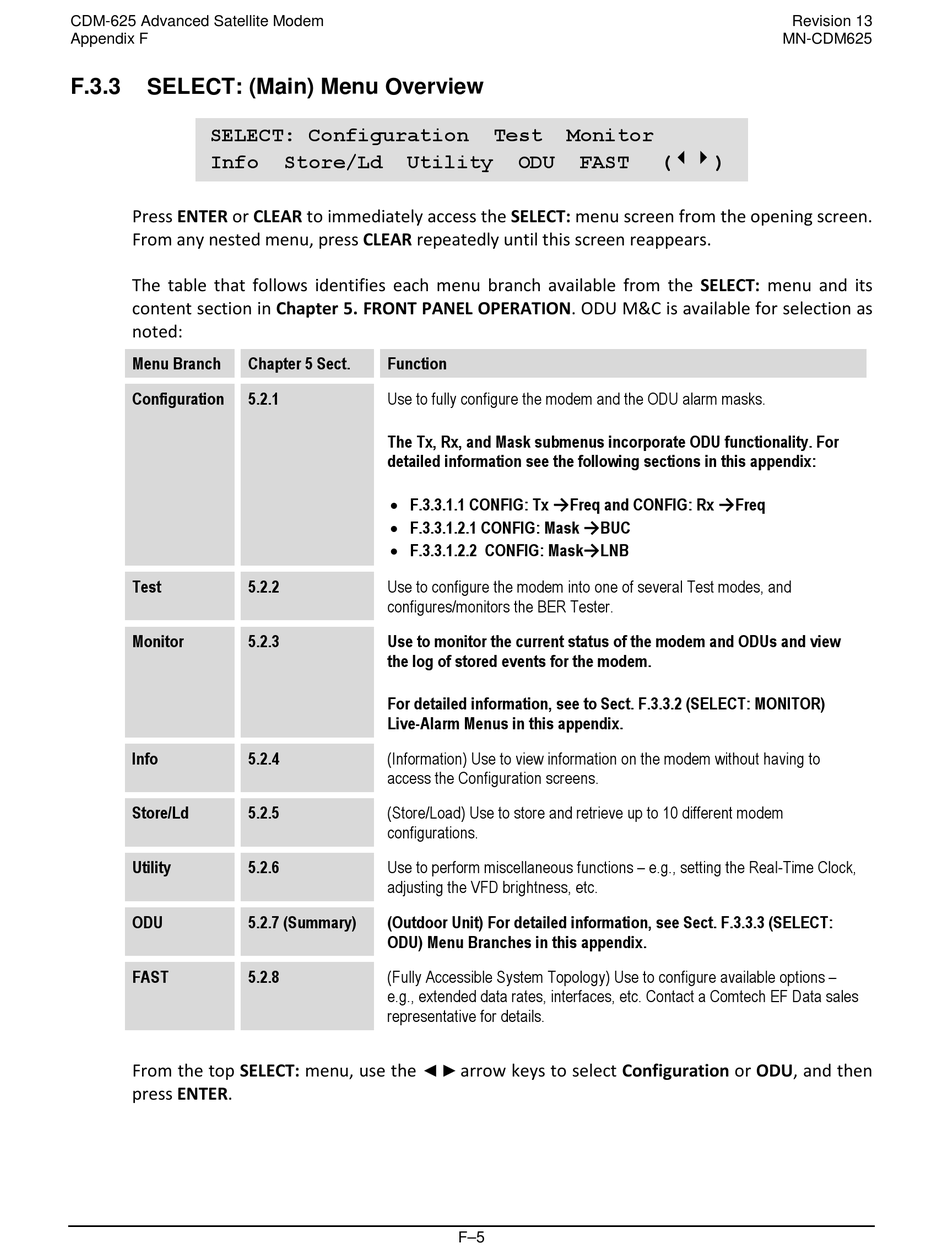

SELECT: (Main) Menu Overview
SELECT: Configuration
Info
Press ENTER or CLEAR to immediately access the SELECT: menu screen from the opening screen.
From any nested menu, press CLEAR repeatedly until this screen reappears.
The table that follows identifies each menu branch available from the SELECT: menu and its
content section in Chapter 5. FRONT PANEL OPERATION. ODU M&C is available for selection as
noted:
Menu Branch
Chapter 5 Sect.
Configuration
5.2.1
Test
5.2.2
Monitor
5.2.3
Info
5.2.4
Store/Ld
5.2.5
Utility
5.2.6
ODU
5.2.7 (Summary)
FAST
5.2.8
From the top SELECT: menu, use the
press ENTER.
Store/Ld
Utility
Function
Use to fully configure the modem and the ODU alarm masks.
The Tx, Rx, and Mask submenus incorporate ODU functionality. For
detailed information see the following sections in this appendix:
• F.3.3.1.1 CONFIG: Tx
• F.3.3.1.2.1 CONFIG: Mask
• F.3.3.1.2.2 CONFIG: Mask
Use to configure the modem into one of several Test modes, and
configures/monitors the BER Tester.
Use to monitor the current status of the modem and ODUs and view
the log of stored events for the modem.
For detailed information, see to Sect. F.3.3.2 (SELECT: MONITOR)
Live-Alarm Menus in this appendix.
(Information) Use to view information on the modem without having to
access the Configuration screens.
(Store/Load) Use to store and retrieve up to 10 different modem
configurations.
Use to perform miscellaneous functions – e.g., setting the Real-Time Clock,
adjusting the VFD brightness, etc.
(Outdoor Unit) For detailed information, see Sect. F.3.3.3 (SELECT:
ODU) Menu Branches in this appendix.
(Fully Accessible System Topology) Use to configure available options –
e.g., extended data rates, interfaces, etc. Contact a Comtech EF Data sales
representative for details.
◄ ►
arrow keys to select Configuration or ODU, and then
F–5
Test
Monitor
ODU
FAST
()
Freq and CONFIG: Rx
→
→
BUC
→
LNB
Revision 13
MN-CDM625
