E.3.3.7 Home > Administration > Block Upconverter (BUC)

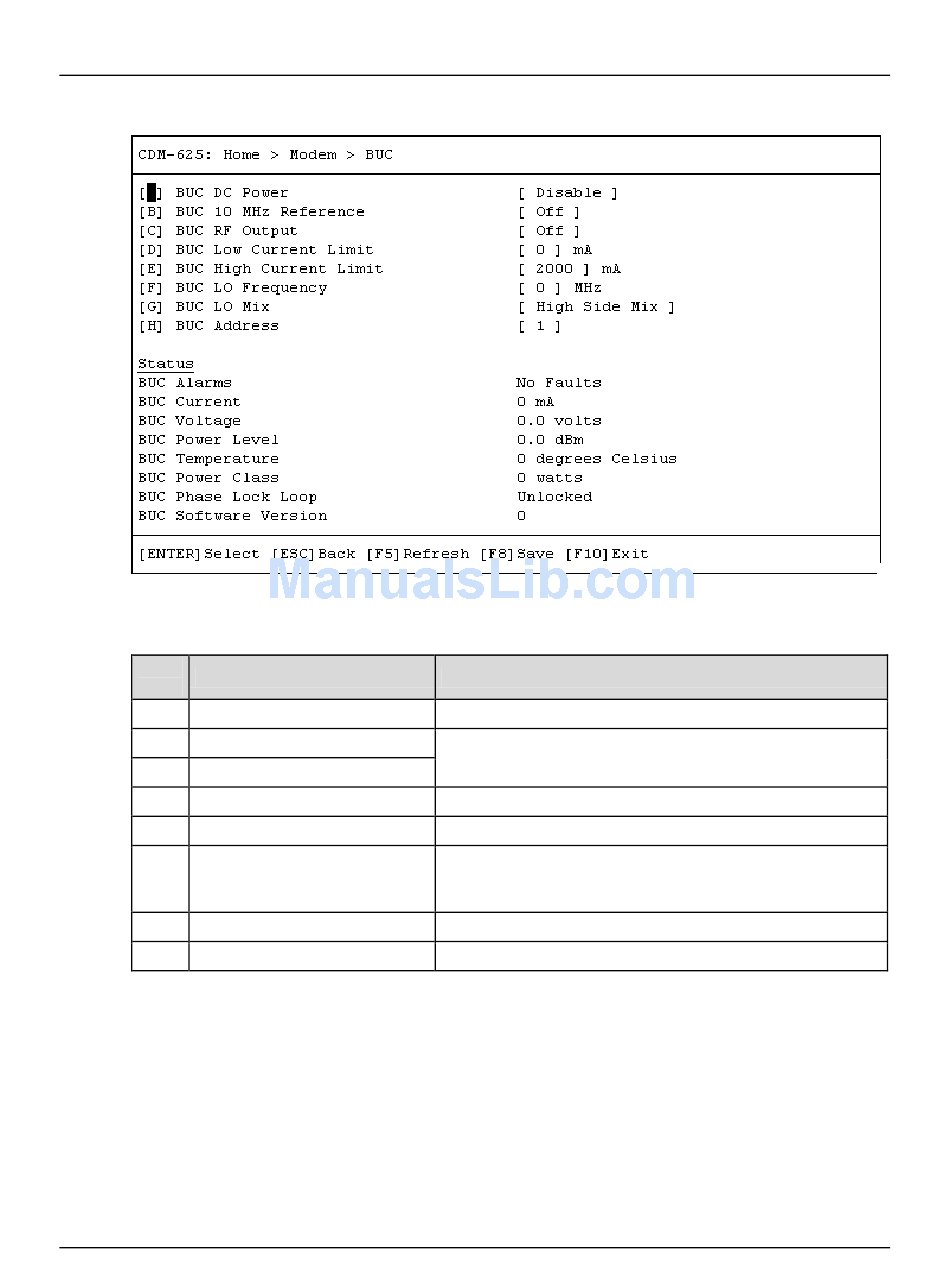

Open the Block Upconverter (BUC) page from the Modem submenu. This page features a read-
only status section for the installed device and contains the following options:
Hot
Dialog Window
Key
A BUC DC Power
B
BUC 10 MHz Reference
C
BUC RF Output
D BUC Low Current Limit
E BUC High Current Limit
F BUC LO Frequency
G BUC LO Mix
H BUC Address
Press a hot key to open a dialog window. Otherwise, press [ESC] to return to the Modem
submenu.
Option Entry
Use the ↑↓ arrow keys to select Disable or Enable
Typical for either entry – Use the ↑↓ arrow keys to select Off or On
Enter a low limit value from 0 to 4000 mA
Enter a high limit value from 0 to 4000 mA
Enter a value as follows:
Range 1 – From 0 to 0 MHz
•
Range 2 – From 3000 to 65000 MHz
•
Use the ↑↓ arrow keys to select Low Side Mix or High Side Mix
Enter a value from 1 to 15
