CDM-625 Advanced Satellite Modem
Ethernet-based Remote Product Management
6.5.4.4.4.8 Status | Traffic Statistics | MAC Table
Use this page to view and refresh the MAC Addresses that the modem has discovered on one or
more of its Ethernet switch ports.
MAC Table
Click [Refresh] to update the page with the latest discovered MAC Addresses.
From left to right, note the following:
Column
MAC
DBNum
CPU
P4
P3
P2
P1
WAN
Type

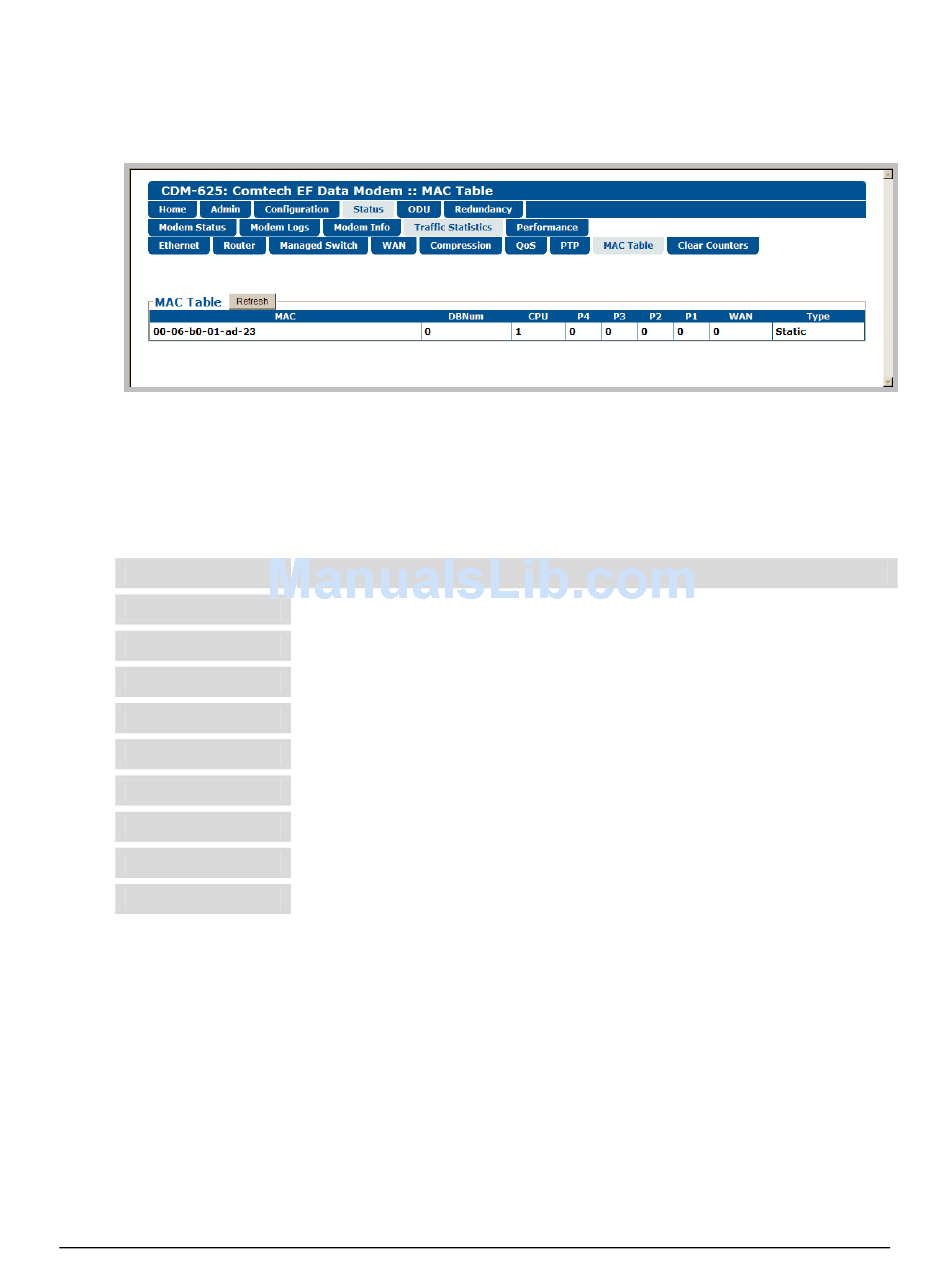

Figure 6-44. Status | Traffic Statistics | MAC Table page
Description
The MAC Address of the device on LAN/WAN
Database number (always zero)
Port connected to the modem's M&C Management Port
User Traffic Port #4
User Traffic Port #3
User Traffic Port #2
User Traffic Port #1
Packets going into WAN (when the IP Packet Processor is installed and enabled)
Identifies the MAC address as Static or Dynamic
6–73
Revision 13
MN-CDM625
