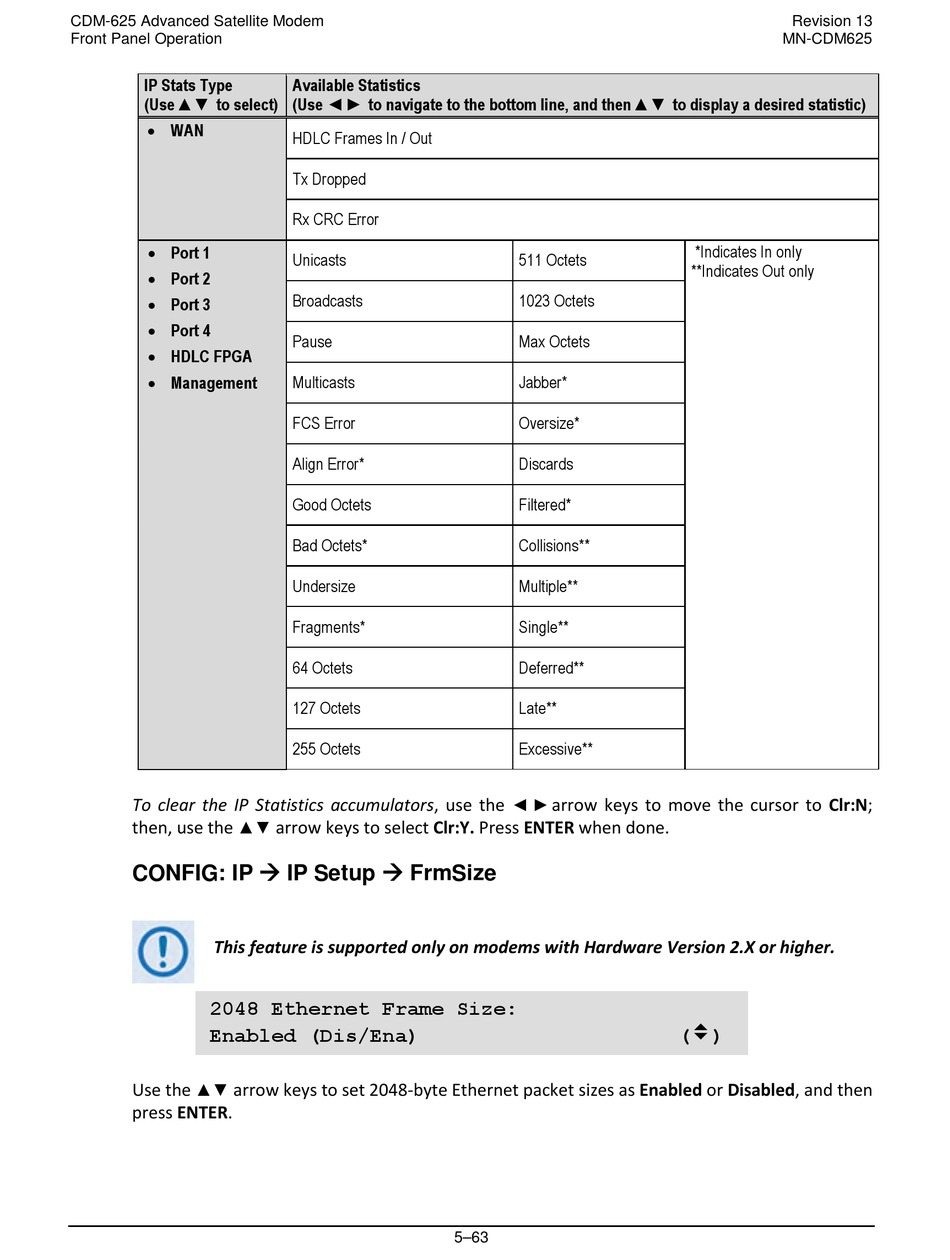

CDM-625 Advanced Satellite Modem
Front Panel Operation
IP Stats Type
(Use ▲▼ to select)
• WAN
• Port 1
• Port 2
• Port 3
• Port 4
• HDLC FPGA
• Management
To clear the IP Statistics accumulators, use the
then, use the
▲▼
CONFIG: IP  IP Setup  FrmSize
This feature is supported only on modems with Hardware Version 2.X or higher.
2048 Ethernet Frame Size:
Enabled (Dis/Ena)
Use the arrow keys to set 2048-byte Ethernet packet sizes as Enabled or Disabled, and then
▲▼
press ENTER.
Available Statistics
(Use ◄ ► to navigate to the bottom line, and then ▲▼ to display a desired statistic)
HDLC Frames In / Out
Tx Dropped
Rx CRC Error
Unicasts
Broadcasts
Pause
Multicasts
FCS Error
Align Error*
Good Octets
Bad Octets*
Undersize
Fragments*
64 Octets
127 Octets
255 Octets
arrow keys to select Clr:Y. Press ENTER when done.
511 Octets
1023 Octets
Max Octets
Jabber*
Oversize*
Discards
Filtered*
Collisions**
Multiple**
Single**
Deferred**
Late**
Excessive**
◄ ► arrow keys to move the cursor to Clr:N;
5–63
Revision 13
MN-CDM625
*Indicates In only
**Indicates Out only
()
