CDM-625 Advanced Satellite Modem
Appendix E

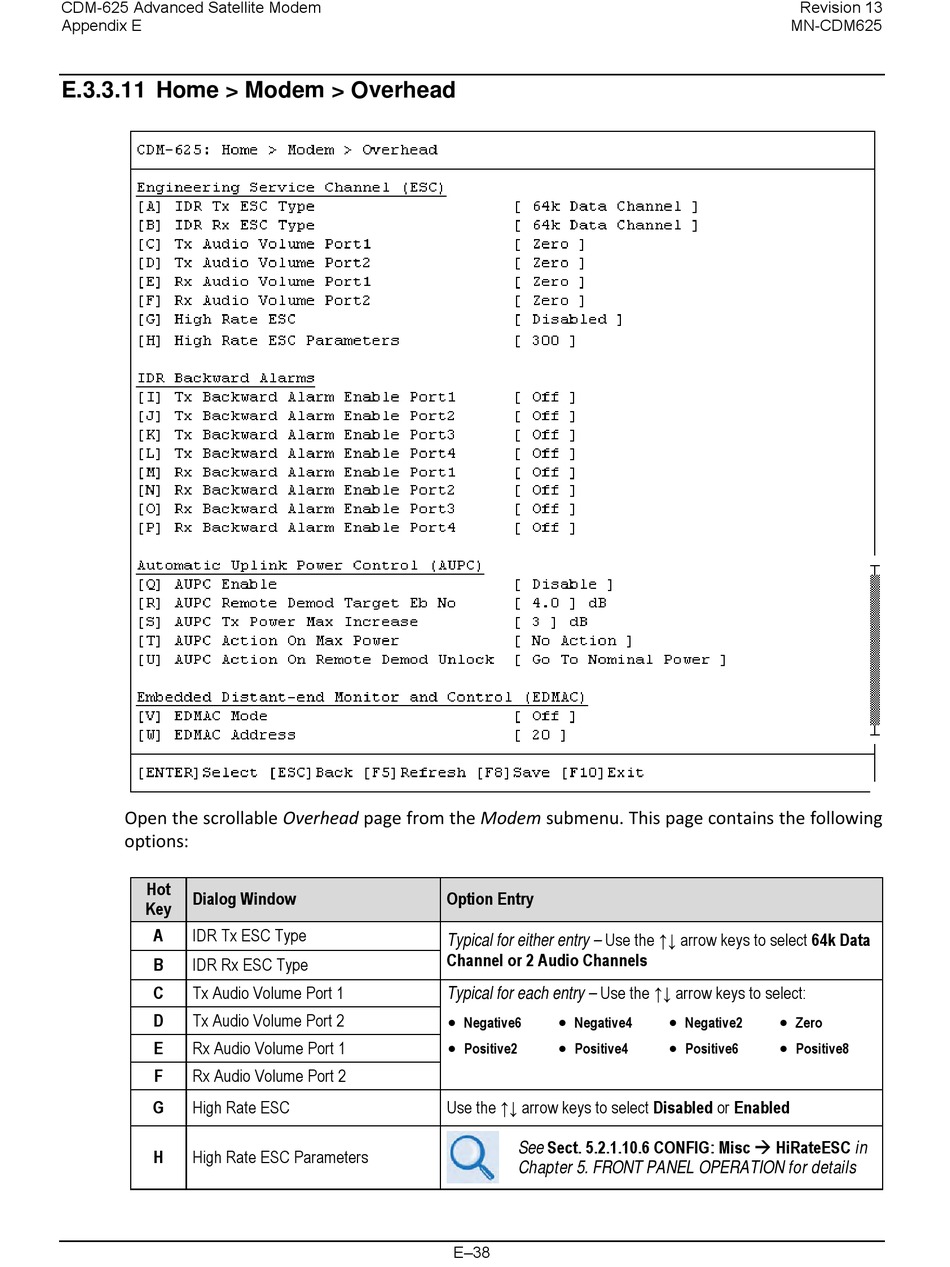

E.3.3.11 Home > Modem > Overhead
Open the scrollable Overhead page from the Modem submenu. This page contains the following
options:
Hot
Dialog Window
Key
A IDR Tx ESC Type
B
IDR Rx ESC Type
C Tx Audio Volume Port 1
D
Tx Audio Volume Port 2
E Rx Audio Volume Port 1
F Rx Audio Volume Port 2
G High Rate ESC
H High Rate ESC Parameters
Option Entry
Typical for either entry – Use the ↑↓ arrow keys to select 64k Data
Channel or 2 Audio Channels
Typical for each entry – Use the ↑↓ arrow keys to select:
• •
Negative6 Negative4
• •
Positive2 Positive4
Use the ↑↓ arrow keys to select Disabled or Enabled
See Sect. 5.2.1.10.6 CONFIG: Misc  HiRateESC in
Chapter 5. FRONT PANEL OPERATION for details
E–38
Revision 13
MN-CDM625
• •
Negative2 Zero
• •
Positive6 Positive8
