CDM-625 Advanced Satellite Modem

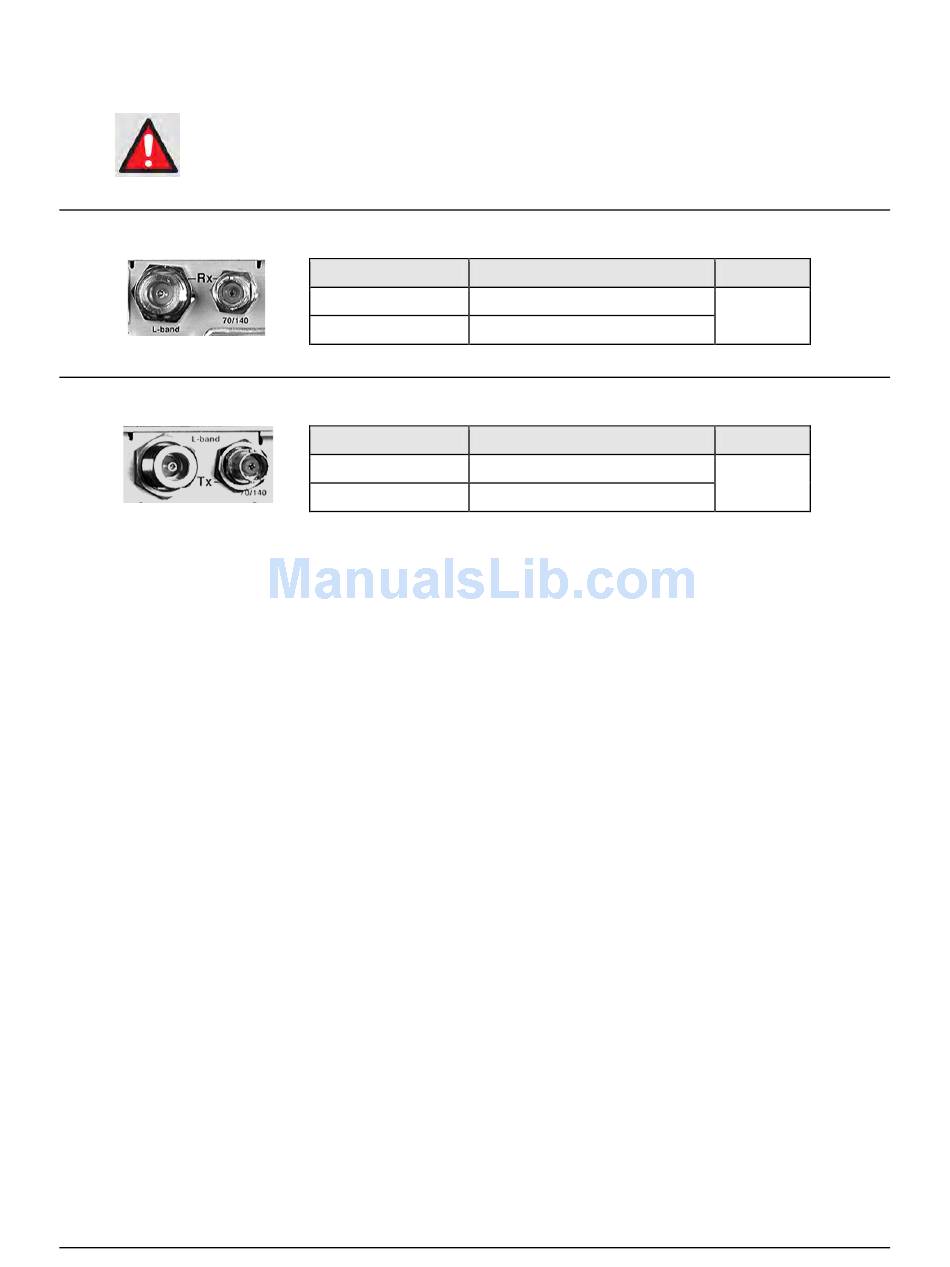

Rear Panel Connectors and Pinouts
3.2.1

IF Connection Group

There may be DC voltages present on the Type 'N' Rx and Tx IF connectors, up to a
maximum of 48 volts.
3.2.1.1

Rx IF Connectors

3.2.1.2

Tx IF Connectors

Connector Type Description
Type 'N' Rx IF signal, L- band
BNC Rx IF signal, 70/140 MHz band
Connector Type Description
Type 'N' Tx IF signal, L- band
BNC Tx IF signal, 70/140 MHz band
3–3
Revision 13
MN-CDM625
Direction
In
Direction
Out
