CDM-625 Advanced Satellite Modem
Appendix F
(shown in blue). Beyond this top-level row of navigation tabs, the diagram illustrates the available
primary (green) and nested (yellow) page tabs that afford you more specific functionality.
Tabs not specific to ODU operation appear dimmed and are explicitly defined in Chapter 6.
ETHERNET-BASED REMOTE PRODUCT MANAGEMENT. Click a navigation tab to continue.
Pages marked with double asterisks (**) are operable only when BUCs or LNBs
are installed.

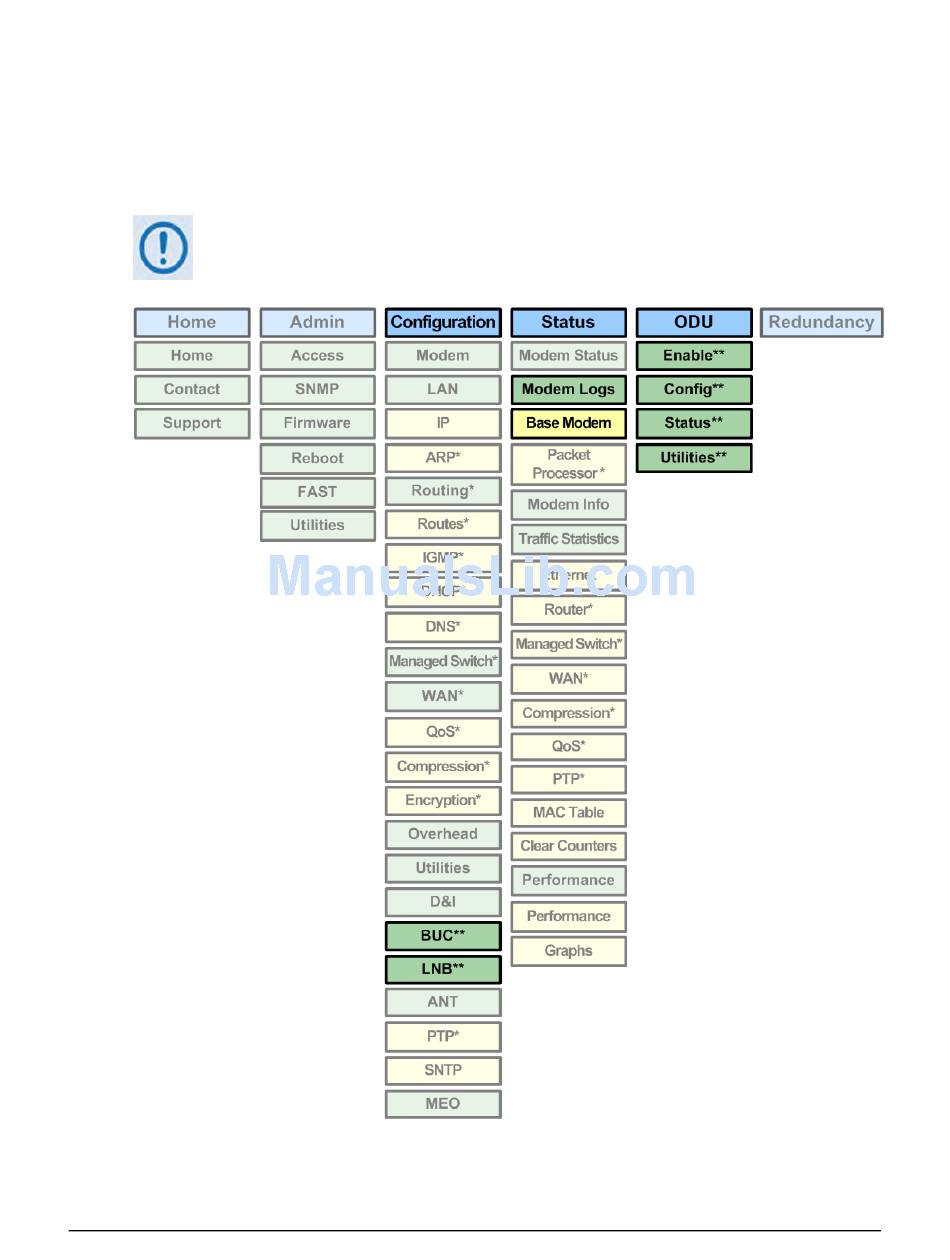

Figure F-4. CDM-625 Web Server (HTTP) Interface Menu Tree (FW Ver. 2.3.1)
F–37
Revision 13
MN-CDM625
