CDM-625 Advanced Satellite Modem
Ethernet-based Remote Product Management
6.5.3 Web Server Interface – Menu Tree
The CDM-625 Web Server Interface pages in this diagram that are marked with an
asterisk (*) are selectable/operational only when the optional FAST feature is
activated, or when the optional IP Packet Processor card is installed and enabled
and you have logged in with Admin access privileges. See Sect. 6.5.3.1 for detailed
information about this conditional access.
Pages marked with double asterisks (**) are operable only when the specified
auxiliary products, such as BUCs or LNBs, are installed.

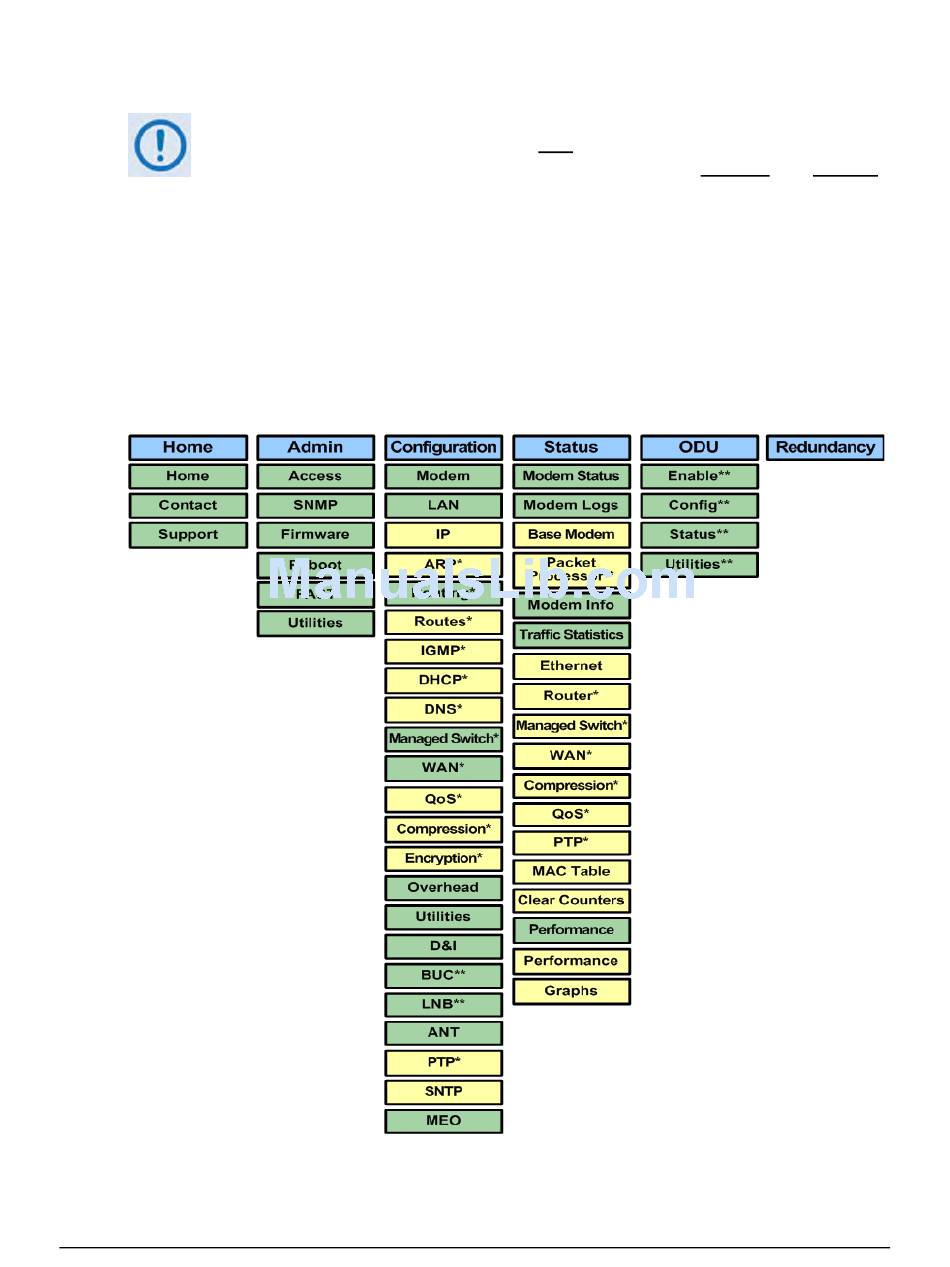

The menu tree diagram (Figure 6-2) lists the features available through the CDM-625 Web Server
(HTTP) Interface. This interface features six navigation tabs (shown in blue). Primary page tabs
(green) and nested page tabs (yellow) provide access to individual Web pages. Click any
navigation tab to continue.

Figure 6-2. CDM-625 Web Server (HTTP) Interface Menu Tree (FW Ver. 2.3.1)

6–11
Revision 13
MN-CDM625
