CDM-625 Advanced Satellite Modem
Ethernet-based Remote Product Management
6.5.4.4.2

Status | Modem Logs

Chapter 5. FRONT PANEL OPERATION
Click the Base Modem tab, or – when the optional IP Packet Processor card is installed and
enabled – the Packet Processor tab to continue.

6.5.4.4.2.1 Status | Modem Logs | Base Modem

Use this page to control how the fault, statistics, and alarm masking parameters are processed
by the unit.
Events Log
• Read Next Five Events – Click to buffer the next group of five stored events into the
scrollable events window.
•
Clear Events Log – Click to wipe clean the stored events log.

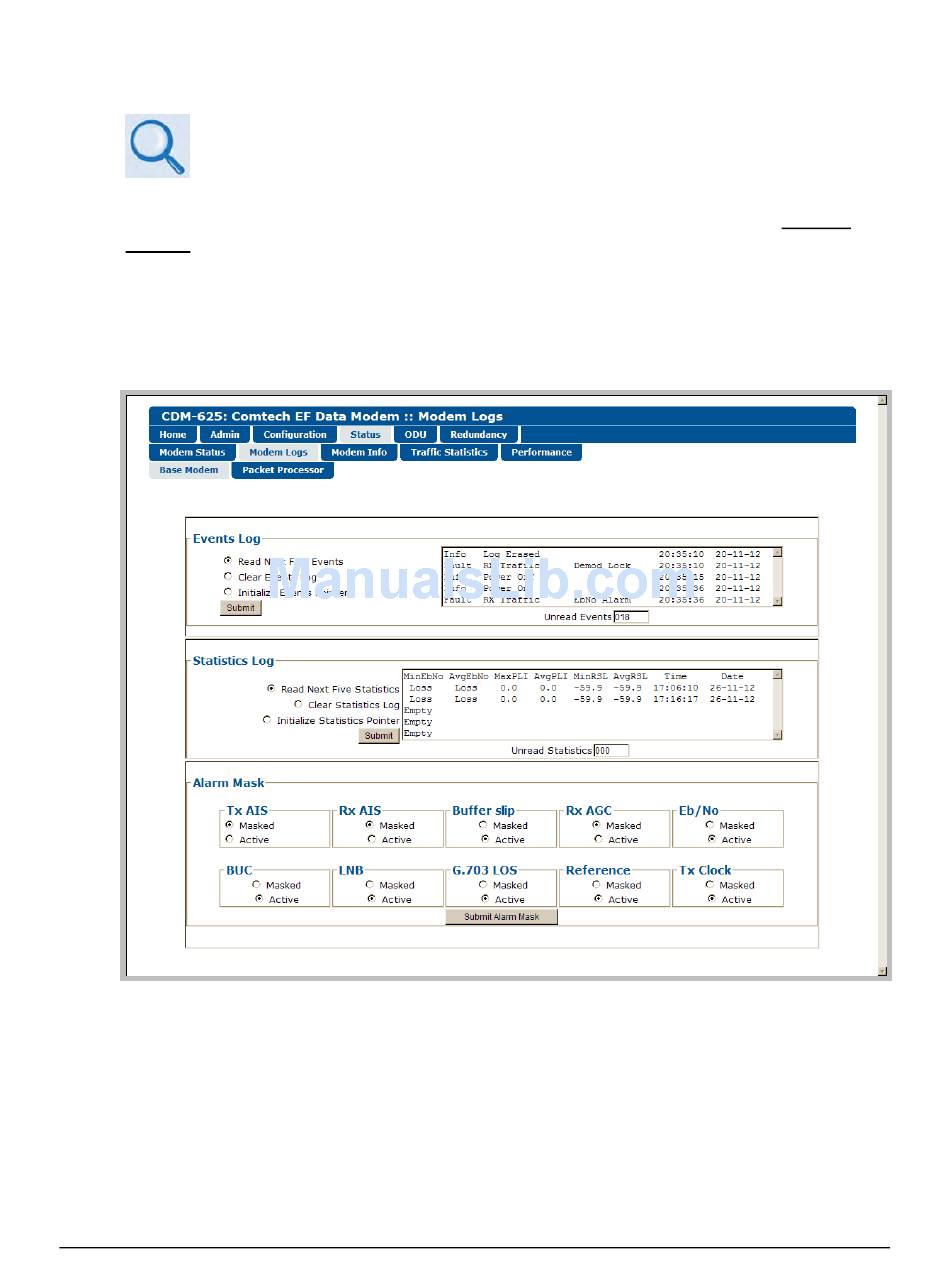

Figure 6-34. Status | Modem Logs | Base Modem page

6–61
Revision 13
MN-CDM625
