E.3.3.6 Home > Modem > Drop and Insert (D&I)
Chapter 9. CLOCK MODES

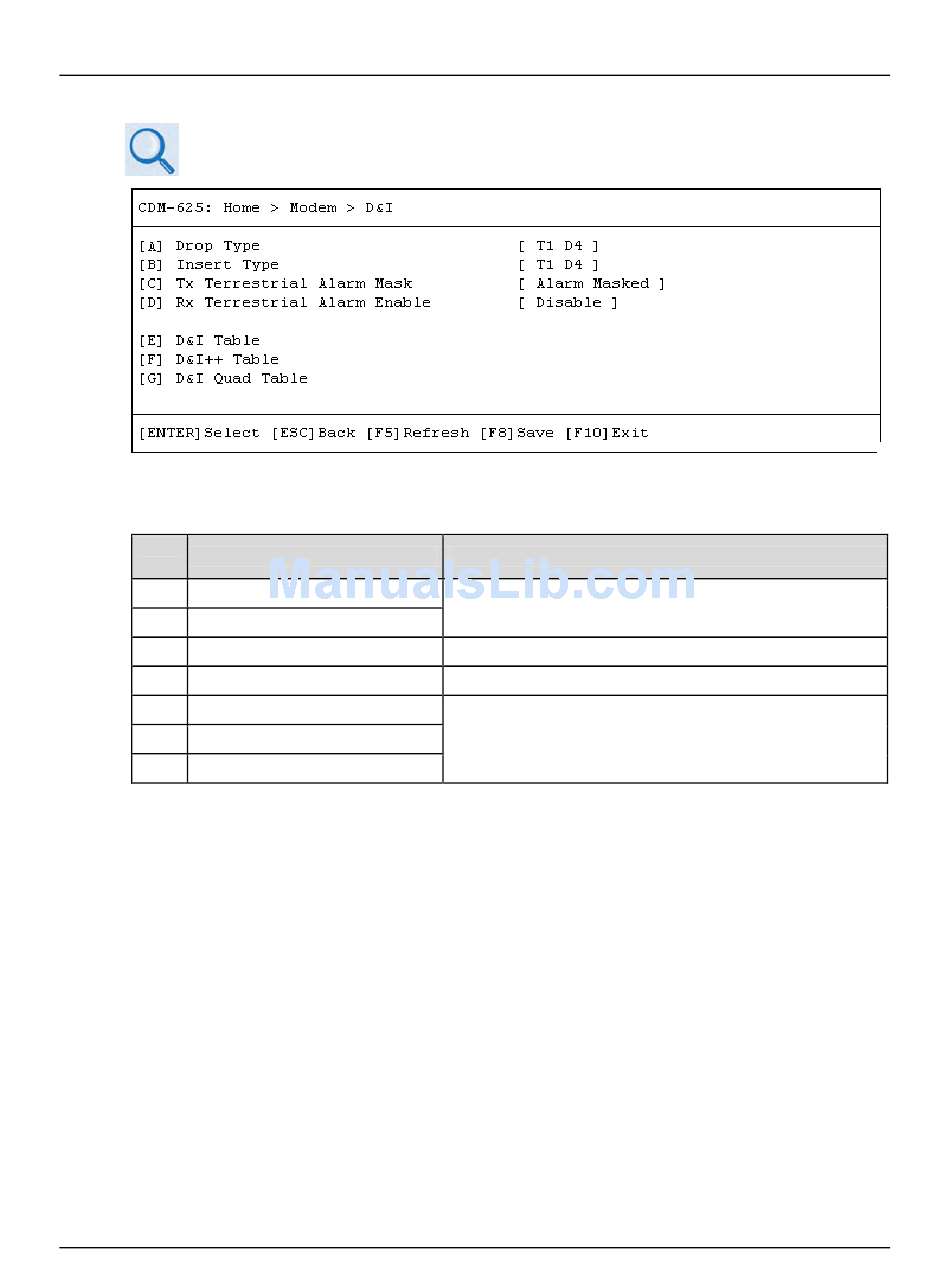

Open the Drop and Insert (D&I) page from the Modem page. This page contains the following
options:
Hot
Dialog Window
Key
A
Drop Type
B
Insert Type
C Tx Terrestrial Alarm Mask
D Rx Terrestrial Alarm Enable
E
D&I Table
F
D&I++ Table
G D&I Quad Table
Press a hot key to open a dialog window. Otherwise, press [ESC] to return to the Modem
submenu.
DROP INSERT (D&I)
AND AND
Option Entry
Typical for either entry – Use the ↑↓ arrow keys to select T1D4, T1
ESF, E1 CCS, or E1CAS
Use the ↑↓ arrow keys to select Alarm Active or Alarm Masked
Use the ↑↓ arrow keys to select Disable or Enable
See Sect. E.3.3.6.1 for details
