CDM-625 Advanced Satellite Modem

Ethernet Network Configuration

Hub-to-Remotes using Ethernet Switches or Routers

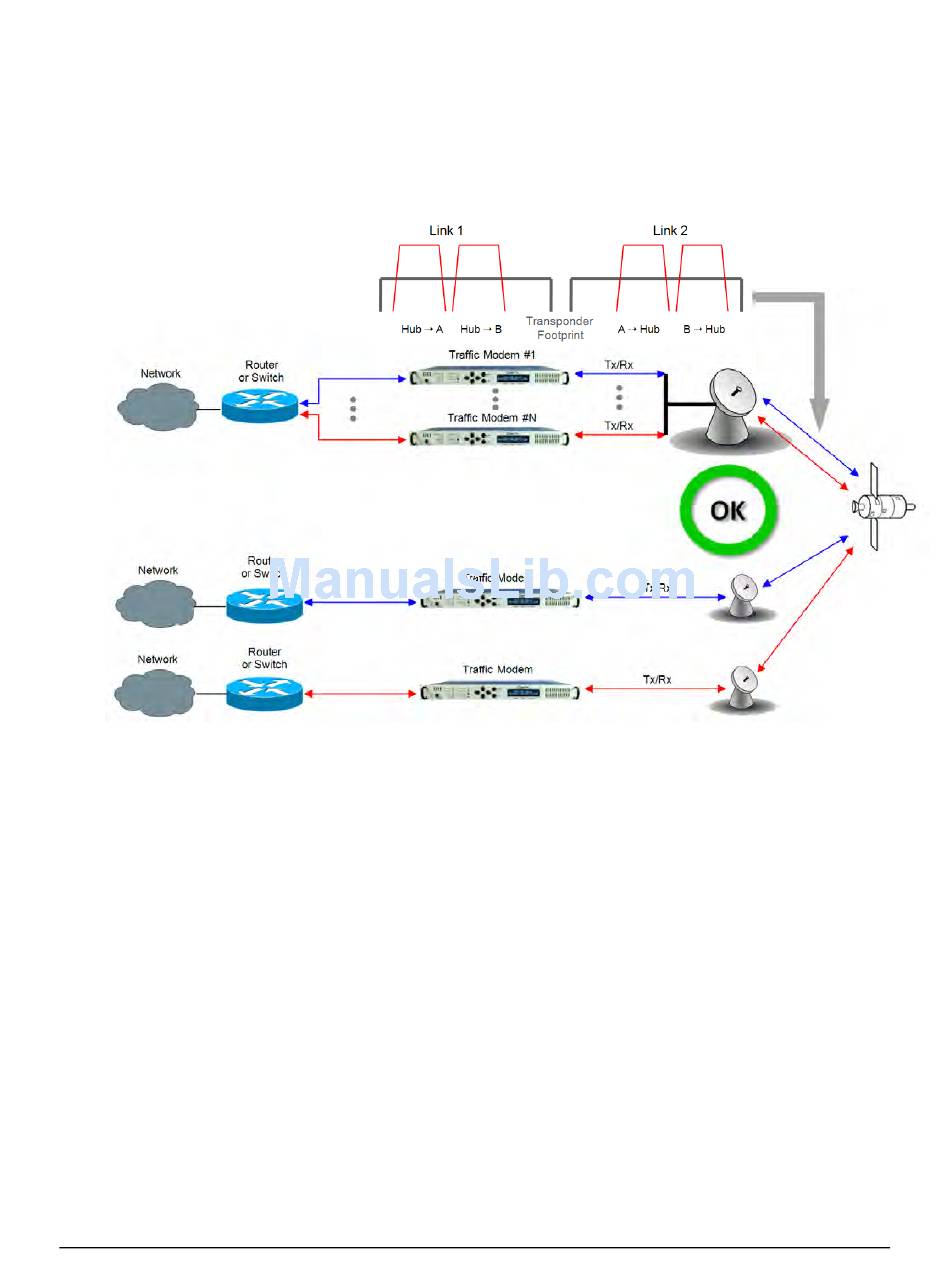

Figure 16-6 shows a hub-to-remotes configuration using switches or routers with standard

Ethernet traffic, the routers/switches will block broadcasts coming from the hub and remote

networks; therefore, the creation of a broadcast storm is prevented and there is no possibility of

having a remote MAC on the Hub networks.
