CDM-625 Advanced Satellite Modem
Appendix F

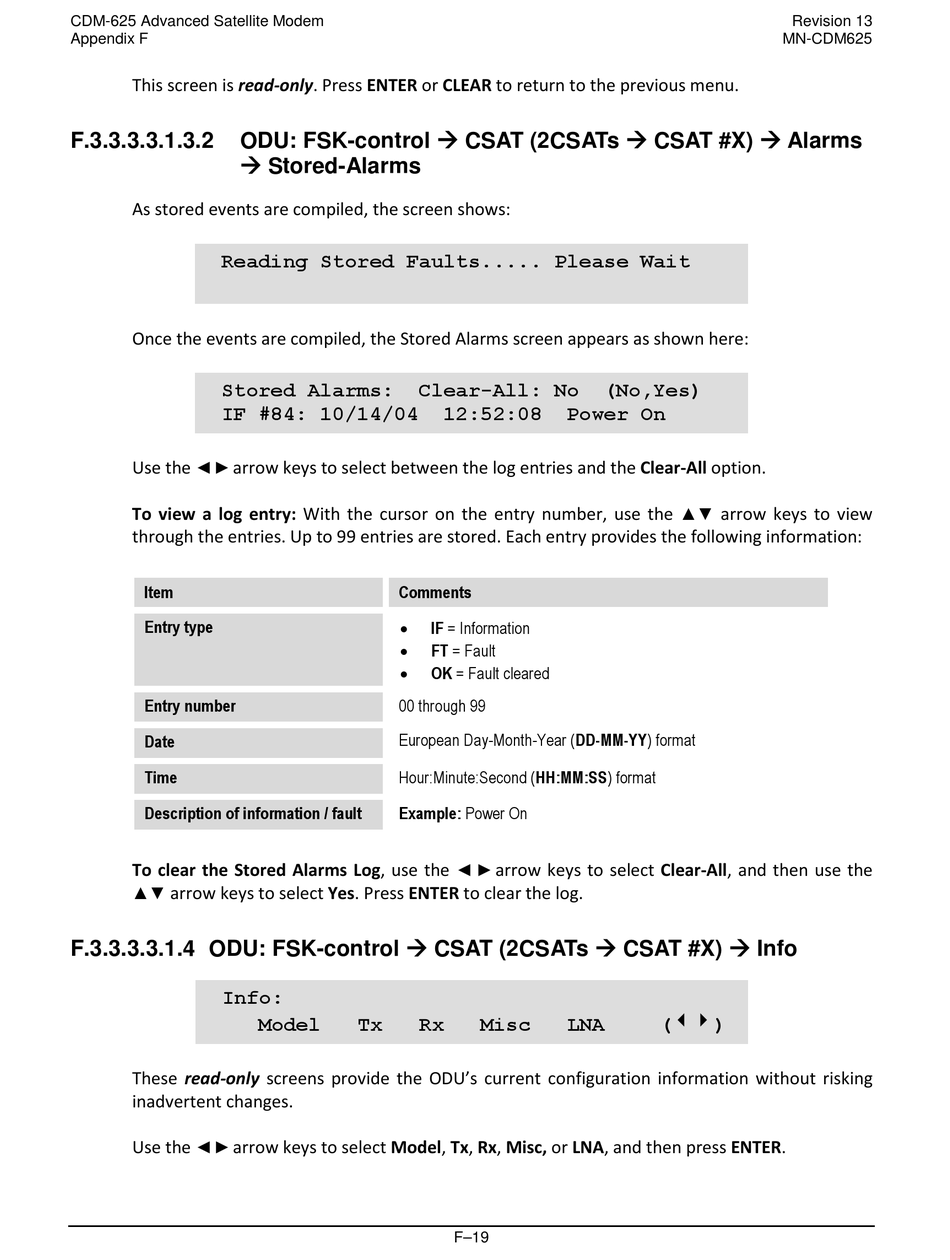

This screen is read-only. Press ENTER or CLEAR to return to the previous menu.
ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Alarms
F.3.3.3.3.1.3.2
 Stored-Alarms
As stored events are compiled, the screen shows:
Reading Stored Faults..... Please Wait
Once the events are compiled, the Stored Alarms screen appears as shown here:
Stored Alarms:
IF #84: 10/14/04
Use the
◄ ►
arrow keys to select between the log entries and the Clear-All option.
To view a log entry: With the cursor on the entry number, use the
through the entries. Up to 99 entries are stored. Each entry provides the following information:
Item
Entry type
Entry number
Date
Time
Description of information / fault
To clear the Stored Alarms Log, use the
arrow keys to select Yes. Press ENTER to clear the log.
▲▼
F.3.3.3.3.1.4 ODU: FSK-control  CSAT (2CSATs  CSAT #X)  Info
Info:
These read-only screens provide the ODU's current configuration information without risking
inadvertent changes.
◄ ►
Use the
arrow keys to select Model, Tx, Rx, Misc, or LNA, and then press ENTER.
Clear-All: No
Comments
IF = Information
FT = Fault
OK = Fault cleared
00 through 99
European Day-Month-Year (DD-MM-YY) format
Hour:Minute:Second (HH:MM:SS) format
Example: Power On
Model
Tx
Rx
(No,Yes)
12:52:08
Power On
◄ ►
arrow keys to select Clear-All, and then use the
Misc
LNA
F–19
Revision 13
MN-CDM625
arrow keys to view
▲▼
()
