Micromeritics Elzone II 5390 Operator's Manual page 58

Elzone II 5390 Confirm
19. Select the appropriate calibration file for the selected orifice tube. Click
to the Orifice Calibration dialog; appropriate values for the calibration will be copied
into the fields.
20. Click the down arrow to the right of the Orifice Tube field and choose the tube you
plan to calibrate. If the tube is not in the list, perform the following steps to add it:
a. Click

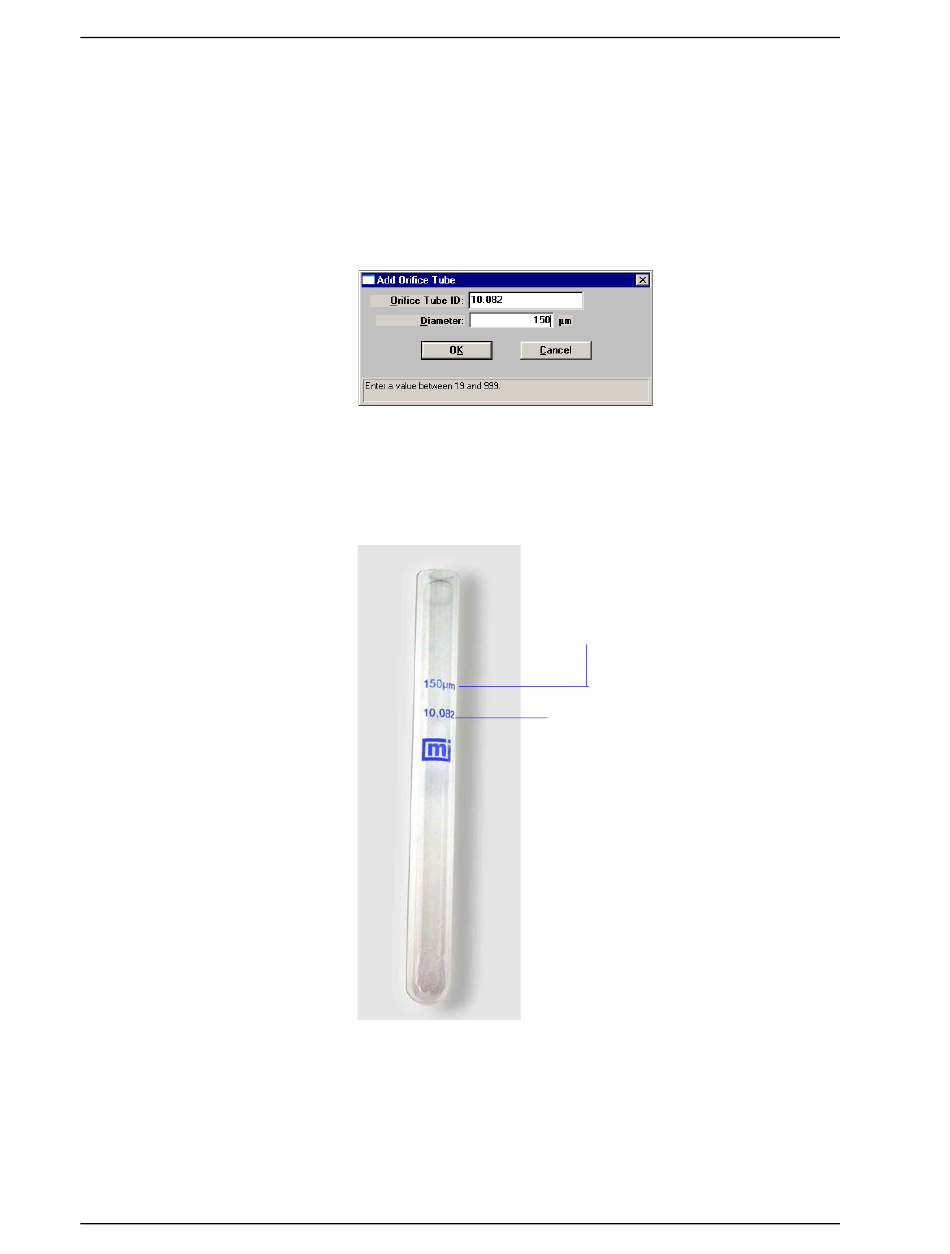

b. Enter an identification in the Orifice Tube ID field. Typically users enter the
serial number shown on the orifice tube and the size, making it easy to locate in
the Files list. However, you may wish to establish your own identification
system.
c. Enter the orifice size in the Diameter field.
d. Click
3-22
Add Orifice ; the Add Orifice Tube dialog is displayed.
OK to return to the Orifice Calibration dialog.
Calibrating an Orifice Tube
Size
Serial Number
539-42822-01 (Rev B) - Nov 2017
OK to return
